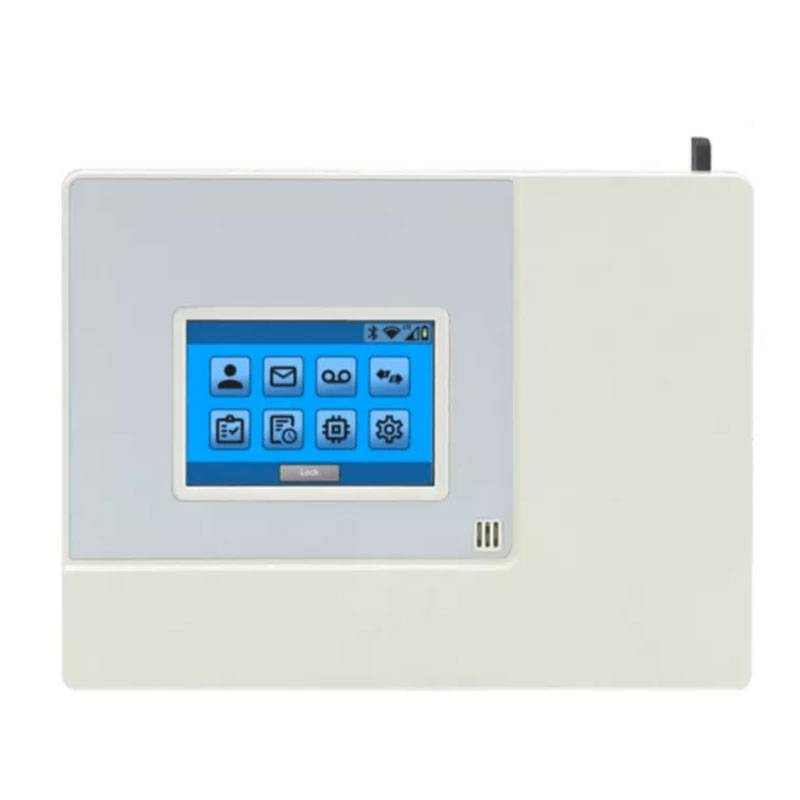

Notifier GSM/4G dialer 8 inputs and 4 outputs with display DS500
NOT DS500
Notifier GSM/4G dialer with touch display, 8 configurable inputs, 4 relay outputs and multi operator SIM included, with the following features:
-
Display: 3.5 inch touchscreen
-
Connectivity: GSM 4G / 2.5G / 2G
-
Inputs: 8 configurable (balanced single/double, NO, NC)
-
Outputs: 4 NO/NC relays
-
Power supply: 10/30 VDC
-
Current consumption at 24V: 60 mA
-
Storable numbers: up to 500
-
Degree of protection: IP30
€282.23
Items Available: 12
Complete and professional GSM/4G telephone communicator
The DS500 is an advanced telephone dialer designed for alarm, automation and remote control systems. Equipped with a 4G, 2.5G and 2G multi-band GSM module, it ensures stable communications via both SMS and voice calls, supporting up to 500 storable phone numbers. Multi-operator SIM included ensures maximum compatibility and coverage.
Touchscreen interface and simplified management
With a 3.5-inch color touchscreen display, it allows intuitive and fast programming directly from the device, without the need for external software. The interface provides quick access to all functions: input/output configuration, messages, events, calls, and remote control.
Configurable inputs and full remote control
With 8 configurable balanced inputs (NO, NC, single or double balanced) and 4 NO/NC relay outputs, the DS500 offers great flexibility of use. Outputs can be triggered by events, remotely via DTMF, SMS, ringing or in response to environmental conditions such as temperature or power supply. It also includes intrusion detection and room thermostat functionality.
Customizable notifications and event management
The device supports 25 customizable SMS (160 characters each) and 10 voice messages (text-to-speech) of 150 characters, for clear and accurate notifications. Detects and reports events such as tampering, alarms, GSM network absence, power failure, low battery, temperature changes, and more.
Versatile installation and robust construction
Installation is facilitated by an 18-terminal system and well-placed cable accesses. With its IP30 housing with anti-opening and anti-removal tamper, the DS500 is protected even in critical environments. It operates in a temperature range of 0°C to +50°C with humidity up to 90% (no condensation).
Notifier Dialer Technical Specifications
| Display | 3.5-inch touchscreen |
| Connectivity | GSM 4G / 2.5G / 2G |
| Inputs | 8 configurable (balanced single/double, NO, NC) |
| Outputs | 4 NO/NC relays |
| Power supply | 10-30 VDC |
| Power consumption | 60 mA - 24V |
| Tamper | Opening and tearing |
| Voice messages | 10 (max. 150 characters, TTS) |
| SMS messages | 25 configurable (160 characters) |
| Storable numbers | Up to 500 |
| Events supported | Alarm, tampering, power failure, GSM down, low battery, temperature out of threshold, etc. |
| Remote control | Via SMS, ringing, DTMF |
| Advanced functions | Intrusion alarm control panel, room thermostat |
| Degree of protection | IP30 |
| Humidity max. | 90% RH (non-condensing) |
| Operating temperature | 0 °C ÷ +50 °C |
| Notes | Multi-operator SIM included, touch display for intuitive management |
There are no reviews
Data sheet
- Type: Dialers
