Bentel GSM/ABS-LTE card for control panels ABSOLUTA ABS-LTE
BSY ABS-LTE

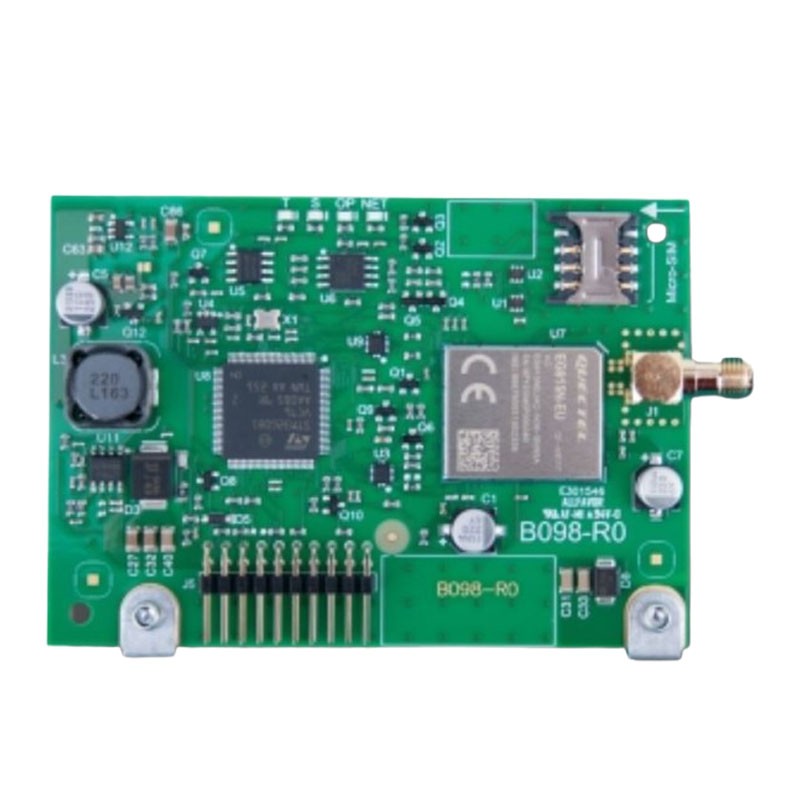

Bentel security GSM/ABS-LTE cellular communicator card:
- Designed specifically with ABSOLUTA series control panels
- Supports 4G (LTE Cat 1), GSM, GPRS and EDGE standards
- Supports VoLTE (Voice over LTE) technology
- Main or backup communicator
- Event notification via voice messages over cellular network
- Event notification via Contact ID and SIA messages on cellular network
- Event notification, via Contact ID and SIA messages, to SurGard System IP receivers, via Fibro protocol, via Internet Event notification via e-mail and ABSOLUTA app (push notifications)
- Antenna not included
Compatible antennas and accessories to be purchased separately:
- GSM antenna for plastic box code ABS-AK
- GSM antenna for Absoluta control unit code BSY ABS-AM
- Multi-band indoor cellular antenna code BSY ANTLTE-02
- Plastic box enclosure for ABSOLUTA code BSY ABS-P
- Metal box enclosure for ABSOLUTA code BSY ABS-M
€135.53
€135.53
Tax included
Tax included
Items Available: 32
: 15
Frequently bought together
In addition to retaining all the functionalities of ABS-GSM, this new device gives the control unit the ability to remain constantly connected to the server, allowing more effective management of the user application and an optimised remote connection, even in the absence of an IP connection.
Other technical functions:
- SMS event notification
- Detection of sabotage attempts via radio jamming
- Transmission of Contact ID messages over GSM voice channel
- Voice messages over GSM
- Remote programming with B.O.S using the GPRS channel
- Simultaneous transmission on PSTN and GSM
- Remote listening function from GSM
- SMS that can be generated for each control unit event
- Receipt of SMS for generating events in the control unit
- Caller recognition
- Check of remaining credit
- SMS alarm notifications and LTE data transmission for fast remote control
- Remote monitoring via app or compatible software
- Communication Backup: Use of GSM network in case of LTE connection problems to ensure business continuity
- Power Supply: 12V DC power supply directly from the control panel
- Installation: Easy integration into Bentel ABSOLUTA control panels, no special tools required for installation
Benefits of Using the GSM/ABS-LTE Card
- Improved Security: Thanks to the LTE connection, you can receive alarm notifications in real time, improving response efficiency
- Remote Management: Control and manage the burglar alarm control panel remotely, making it easier to monitor building security even when you are away
- Scenarios of Use: This board is particularly useful for monitoring residential buildings, offices or warehouses, where it is essential to ensure signal continuity for security
Compatible with all versions of Absoluta:
- Absoluta Plus Firmware 4.20.18 (B094) and 4.20.16 (B104)
- Absoluta 630 Firmware 4.20.18
- Absoluta Firmware 3.60.30
Compatible with Bentel antennas to be purchased separately:
- Part No. ABS-AK: Multi-band mobile phone antenna for Absoluta ABS-P plastic housing
- Part No. ABS-AM: Multi-band cellular antenna for Absoluta ABSP-M metal housing
- Part no. ANTLTE-02: Multi-band cellular indoor antenna, with 2 metre cable
- Part no. ANTLTE-10: Multi-band outdoor cellular antenna, with 10-metre cable
Data sheet
- Type: Dialers
