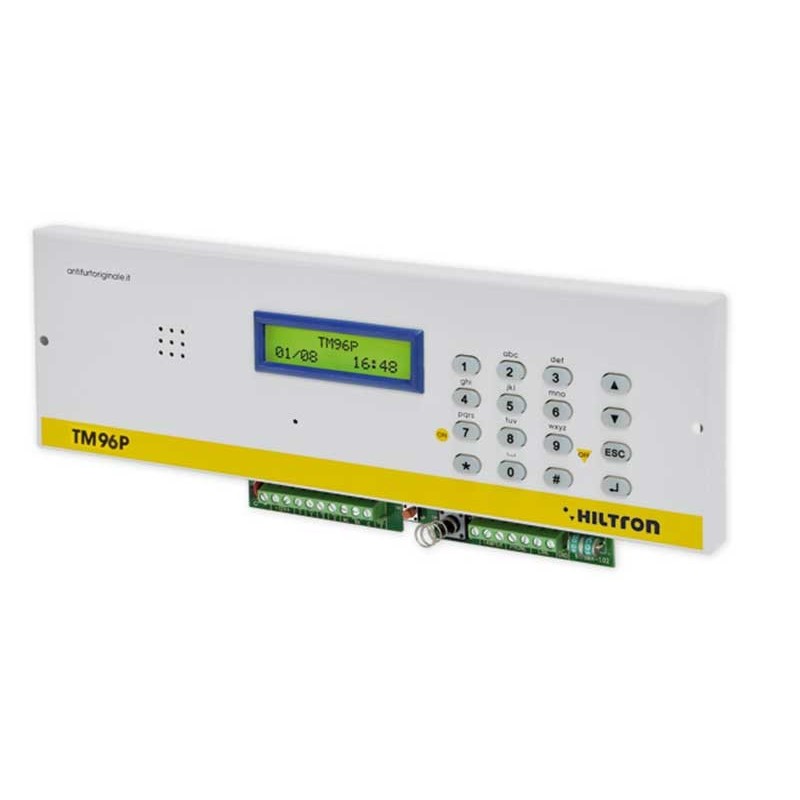

HILTRON Panel telephone dialer 2in/2out with vocal messages


C1A TM96P

HILTRON Panel telephone dialer 2in/2out with vocal messages

Request info about this product
€105.26
Tax included
16 items in stock
qty

In stock
  • Buy it with Express shipping within
    and receive it within Wednesday, 17 March
  • Buy it with Express shipping within
    and receive it within Friday, 12 March
  • Buy it with Express shipping within
    and receive it within Friday, 12 March
Secure Payment
Easy return within 14 days
100% Guaranteed Quality
Operator codes programmable MASTER Code and Code COMMANDS) 2
Channels 2
Programming menu multi-language Italian, English, French, German, Spanish, Portuguese
Rated supply voltage 12vdc ±10%
The maximum absorption 180mA
Absorption in standby 40mA
Vocal messages (16 sec.) 3
Voice messages status (2 sec.) for the monitoring of the status of the inputs and outputs 12
Address Book Entry 16 numbers
Programmable inputs in way impulse or state, beatable to the other inputs 2
Inputs air-conditioning INT 2
Outputs with programmable changeover relay 1
Relay output open collector 1
The outer container metal
Size (L) 285mm
Size (A) 95mm
Size (P) 17mm
