Notifier fire protection system telephone dialer IP/4G EN 54.21 with display CME21
NOT CME21
Notifier IP/4G telephone dialer with display, is designed to ensure continuous and secure communication between the fire alarm control panel and alarm receiving centers (vigilance), even in critical situations. With EN 54-21 certification, it meets all European standards for safety and reliability in fire alarm transmission, with the following features:
-
Certification: EN 54-21 for fire alarm systems
-
Connections: LAN, WiFi, GSM 4G/2.5G/2G
-
Display: Interactive 3.5-inch color display
-
Inputs: 8 configurable balanced + 4 NC/NO relay outputs
-
Dual power supply and built-in multi-operator SIM
-
SIA, Contact ID and ESPA444 protocols supported
€740.85
Items Available: 3

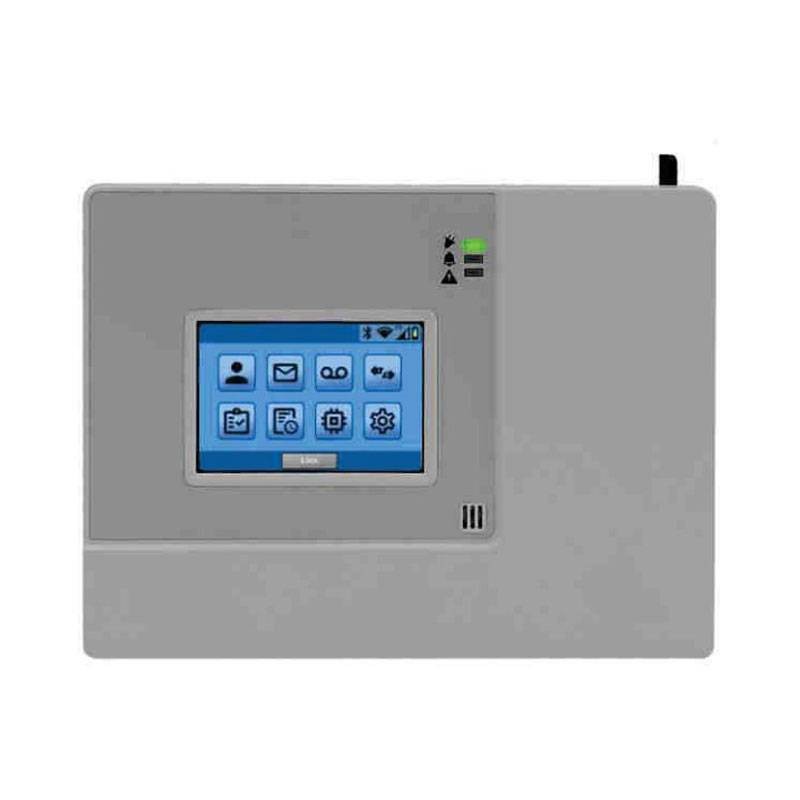

Notifier CME21 dialer with touch display and advanced connectivity
Advanced connectivity for every scenario
The device supports LAN, Wi-Fi and 4G/2.5G/2G GSM connections, ensuring the redundancy of communication paths that is critical in emergency systems. Integration of SIA and Contact ID protocols enables compatibility with major alarm receiving stations, while the ESPA444 protocol expands connection versatility.
Color touch display and intuitive user interface
The 3.5-inch interactive display with 480x320 resolution and 65,000 colors offers a simple and clear interface. You can customize the interface with customer logo, check the status of connected CME21 units, and easily configure the system.
Flexible fire telephone dialer with dual continuous power supply
Maximum configuration flexibility
The CME21 has 8 configurable balanced inputs and 4 relay outputs (NO/NC), supports up to 500 telephone contacts, 25 SMS and 10 TTS audio messages. The 20 removable terminals and 5 fixed terminals for RS232/RS485 make it easy to integrate with existing fire panels.
Safe and continuous power supply
The system provides a dual DC power supply (10V30V) to ensure operational continuity even in case of failure or lack of primary power. The low power consumption makes it suitable for all kinds of professional installations.
Notifier Dialer Technical Specifications
| Feature | Value |
|---|---|
| Certification | EN 54-21 |
| Display | 3.5 inch color 480x320 px 65k colors 100 Hz |
| Inputs | 8 configurable balanced |
| Outputs | 4 relays (NO/NC) |
| Supported protocols | SIA, Contact ID, ESPA444 |
| Connections | LAN, WiFi, GSM 4G/2.5G/2G |
| Terminals | 20 removable + 5 fixed (RS232/RS485) |
| Storable contacts | Up to 500 |
| Storable SMS | Up to 25 (max. 160 characters each) |
| Audio messages | Up to 10 TTS messages |
| Built-in SIM | Multi-operator |
| Power supply | 10V-30VDC, dual power supply |
| Power consumption | 120 mA (display on), 130 mA in alarm |

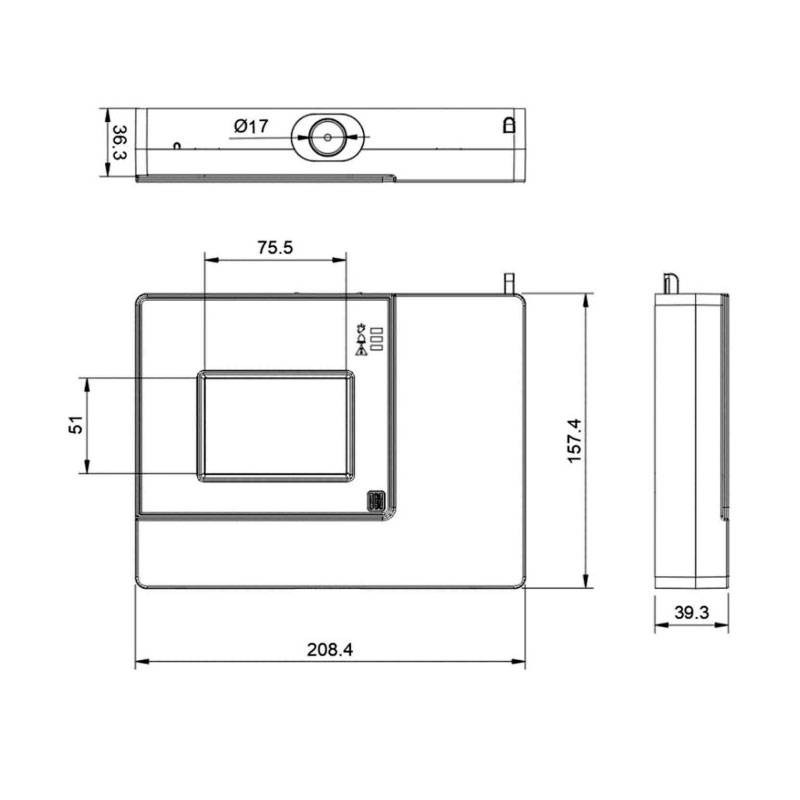

| Dimensions | 208.4 x 157.4 x 39.3 mm |
| Customizable interface | With customer logo |
There are no reviews
Data sheet
- Type: Dialers
