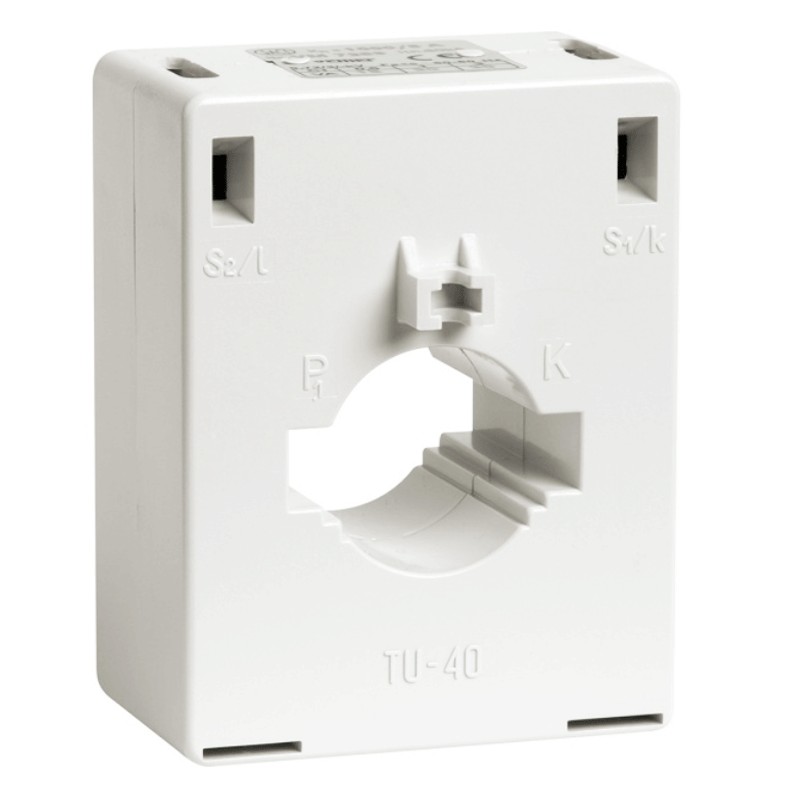

Vemer TU40 bar current transformer 400/5A D30 VM721800
VEM VM721800
8007951721802
Current transformer TU40, through-bar Vemer, with the following characteristics:
- With panel or DIN rail mounting
- Designed for alternating current instruments
- Nominal power 400/5A
- Maximum operating voltage 720 V
- Dimensions 71x96x73 mm
- Bar passage 25/30/40 mm
- Cable passage diameter 30 mm
- Frequency 50/60 Hz
€39.35
Items Available: 14
: 3
The current transformer o TA, in its simplest form, consists of two windings (primary and secondary) isolated from each other and a magnetic core on which the windings are wound.
Characteristics:
- Vemer series
- With panel or DIN rail mounting
- Designed for alternating current instruments
- Nominal power 400/5A
- Maximum operating voltage 720 V
- Maximum continuous overload In 1.2A
- Class 0.5 (10 VA) - 1 (15 VA) - 3 (20 VA)

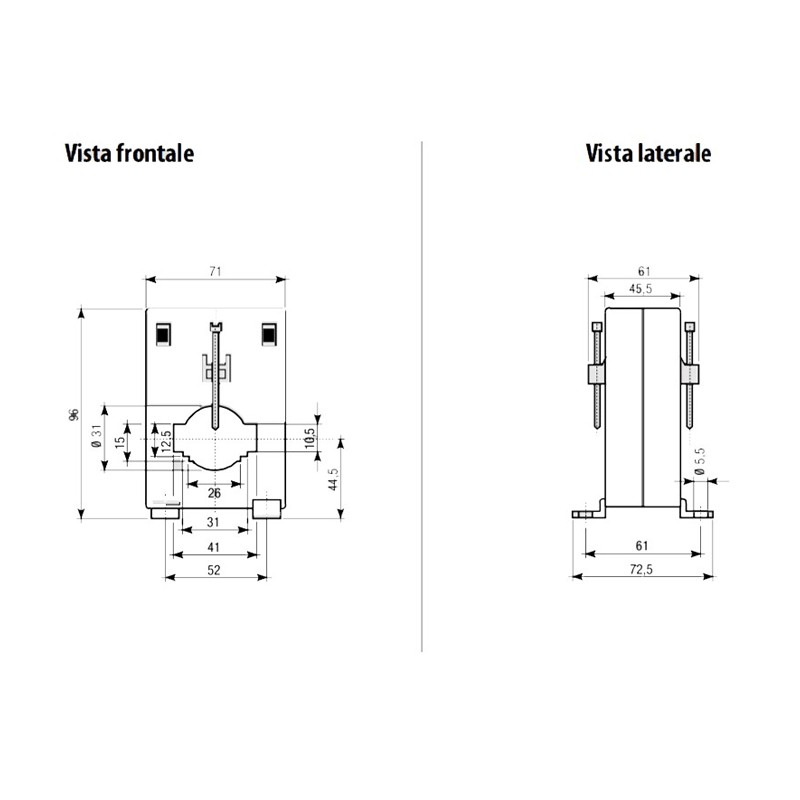

- Dimensions 71x96x73 mm
- Bar passage 25/30/40 mm
- Cable passage diameter 30 mm
- Opening (hole) for cable or bar passage (primary)
- Double clamp for secondary
- Test voltage (1 minute) 3 kV
- Frequency 50/60 Hz
- Safety factor <5
- Insulated housing
- Operating temperature min -10 °C - max +50°C
There are no reviews
Data sheet
- Diameter: 30mm
- Type: Toroidal Transformers
- Amps: 400A
