Cabur TEC.35/O 35mm Yellow/Green Ground Clamps TO320
CBR TO320
8017963044127

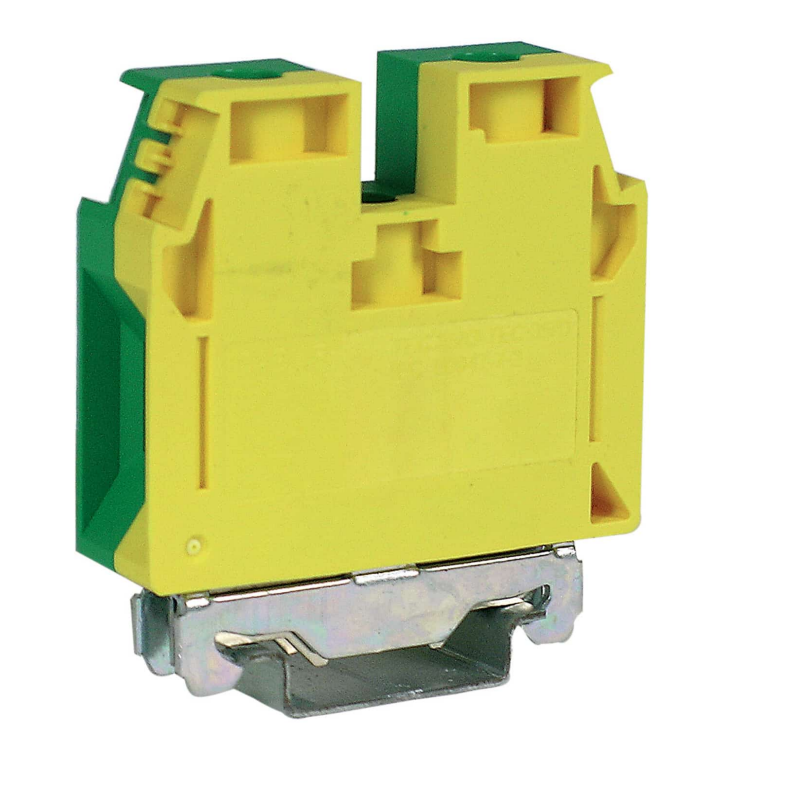

Single-plane through-ground terminal with screw clamping Cabur TEC series:
- Nominal cross-section 35 mm²
- Flexible conductor 2.5-50 mm²
- Solid conductor 2.5-50 mm²
- Color: yellow/green
- Gauge B9
- Rated impulse voltage / pollution degree 12 kV / 3
- Tightening torque (nom. / max.) 2.5 / 5 Nm
- Width (pitch) 16 mm
- Length 56 mm
- Insulating material temperature index (EN 60216-1) 130 °C
- Plastic material Polyamide UL94V-0
Same profile and overall dimensions as the corresponding CBC and GPA series terminals.
With closed insulating body, does not require the end plate.
€7.96
Items Available: 139
: 2
There are no reviews
Data sheet
- Colour: Yellow/Green
- Type: Clamps
- Cross-Section: 35mmq
