Single core medium voltage cable RG26H1M16 1x35 sq. mm 18/30 kV
9X9 RG26H1M161X35-36

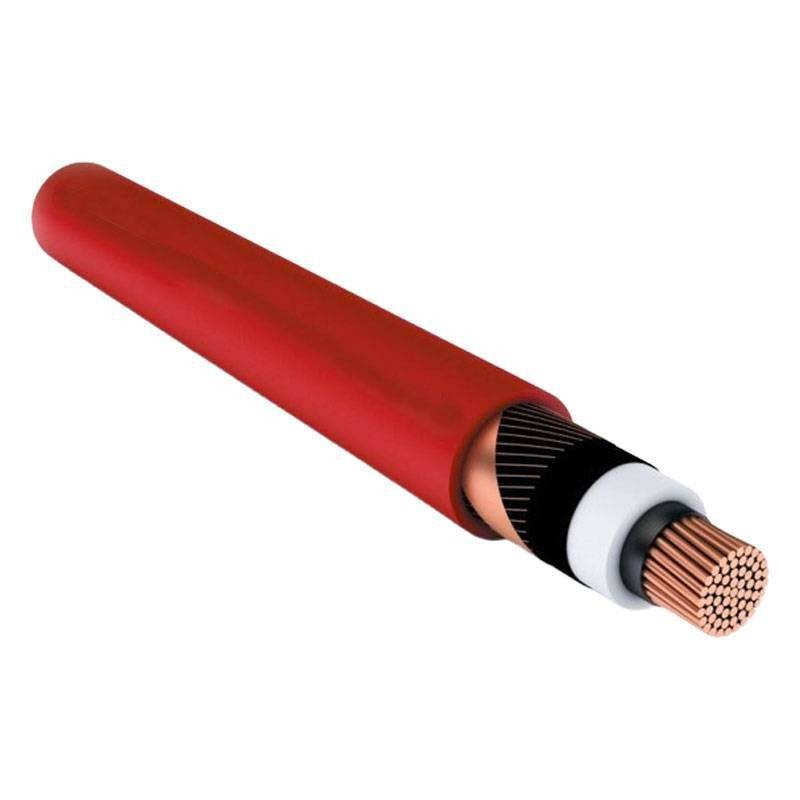

Single-core medium voltage RG26H1M16 18/30 kV cable, HEPR G26 insulation, LS0H sheath, with the following characteristics:
-
Conductor: red copper, rigid compact, class 2
-
Cross-section: 35 sq. mm
-
Outer diameter: 25.4 mm
-
Conductor diameter: 7 mm
-
Insulation thickness: 4.5 mm
-
Sheath thickness: 1.8 mm
-
Rated voltage: 18/30 kV
-
Maximum voltage: 36 kV
The selling price is intended per meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€15.59
Items Available: 491
: 442
Two-year warranty
RG26H1M16 cable reliability, safety and high performance
RG26H1M16 single-core cable is designed for medium-voltage electrical power transmission up to 30 kV, in applications where high thermal and mechanical performance are required. With G26-grade HEPR rubber insulation and LS0H (Low Smoke Zero Halogen) sheathing, the product provides enhanced heat resistance, good laying flexibility, and a high level of fire safety.
HEPR G26 insulation: maximum thermal and mechanical resistance
The technical heart of the cable is its lead-free HEPR G26 rubber insulation, which complies with HD 620 DIH 2. This material allows a continuous operating temperature of up to 105°C, exceeding the limits of traditional PVC or XLPE cables. In the event of overload, use at current increments of up to 10% more is possible, maintaining system reliability even under critical conditions.
Robust and high-performance technical structure
The cable is equipped with a rigid, compact, class 2 red copper conductor with an extruded, cold-peelable semiconductor layer, which ensures perfect homogeneity of the electric field. The shielding system with copper wires and counterspiral tape provides effective electromagnetic protection. The outer sheath made of LS0H thermoplastic material M16 quality, red in color, ensures low smoke emission and halogen-free, ideal for installations in enclosed environments, with the presence of sensitive or highly crowded equipment.
Wide versatility of laying and use
RG26H1M16 cable is suitable for energy transport between transformer substations and large utilities, but is also widely used in industrial plants, civil buildings, infrastructure and fire-hazardous environments. It is suitable for installation in air, pipe, duct and even underground, in accordance with CEI 11-17 art. 4.3.11. Additional protection is recommended in case of UV exposure.
Optimized electrical and thermal performance
The rated voltage of 18/30 kV and maximum operating voltage of 36 kV make the cable suitable for industrial or infrastructure-type MV installations. Operating temperatures range from -15°C to +105°C, peaking at 300°C in short circuit, while the minimum bending radius is 14 times the cable diameter of 25.4 mm. The maximum tensile stress is 60 N/mm².
Technical Specifications RG26H1M16 Cable
| Parameter | Value |
|---|---|
| Cable type | RG26H1M16 |
| Conductor | Rigid compact red copper, class 2 |
| Section | 35 sq. mm |
| Conductor diameter | 7 mm |
| Semiconductor layer | Extruded, cold peelable |
| Insulation | HEPR rubber G26 (HD 620 DIH 2), lead-free |
| Insulation thickness | 4.5 mm |
| Screen | Copper wires + counterspun tape |
| Outer sheath | LS0H quality M16 |
| Sheath thickness | 1.8 mm |
| Sheath color | Red |
| Outer diameter | 25.4 mm |
| Rated voltage | 18/30 kV |
| Maximum voltage | 36 kV |
| Operating temperature | -15°C ÷ +105°C |
| Maximum short circuit temperature | 300°C |
| Minimum laying temperature | 0°C |
| Minimum bending radius | 14 × cable Ø |
| Maximum tensile stress | 60 N/mm² |
| Capacity in air (30°C - trefoil) | 212 A |
| Flow rate in air (30°C - flat) | 248 A |
| Underground flow rate (clover) | 199 A |
| Underground flow rate (floor) | 206 A |
| Laying standard | CEI 11-17 - laying in air, pipe, duct or underground |
There are no reviews
Data sheet
- Cross-Section: 35mmq
- Number of cables: 1
