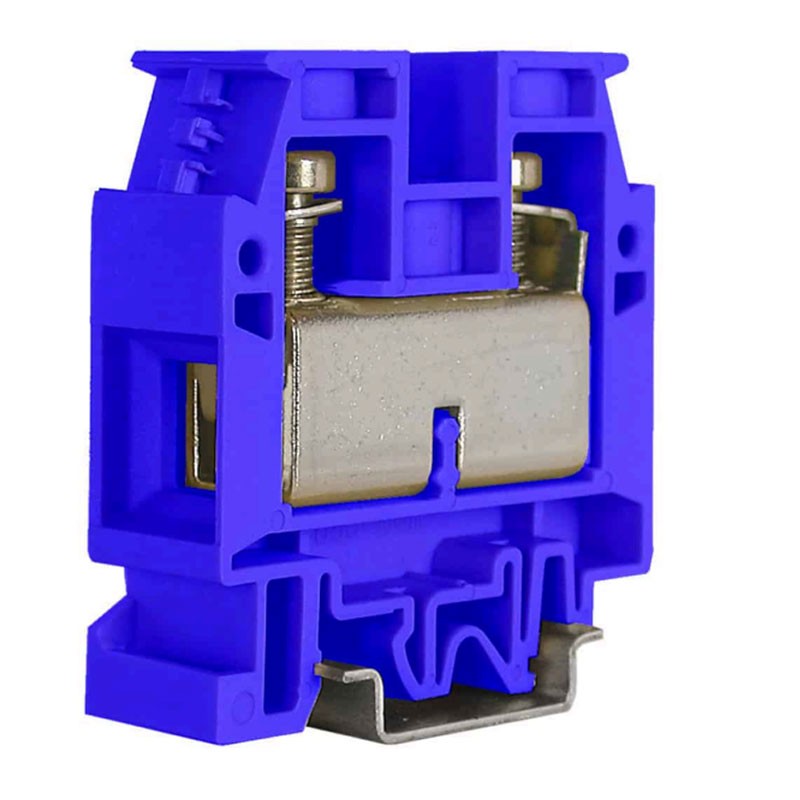

Cabur pass-through clamp 50mm color Blue CBX72
CBR CBX72
8017963186100
Cabur feed-through clamp, with the following characteristics:
- Blue color
- Function/Type: Feed-through
- Nominal cross section: 50 mm
- Flexible conductor: 1.5-50 mm²
- Solid conductor: 1-70 mm²
- Conductor with terminal - model: 50 mm² - WP500/40
- Max AC/DC voltage: 1000V
- Max current with rated section: 150A
- Gauge B9
- Max AC/DC Voltage 600V
- Max current with rated section 130 A
Compatible with plate code CB711.
€7.27
Items Available: 188
: 69
Frequently bought together
Other technical characteristics:
- Section (min-max) 16-1 (AWG)
- Tightening torque (UL) 3.75 lb.in
- Max AC/DC voltage: 630 / 630V
- Max Current with rated section: 150A
- Min/Max operating temperatures -40 °C / +110 °C
- Rated impulse voltage / pollution degree: 12 kV / 3
- Stripping length 22 mm
- Torque (nom. / max.) 2.5 / 5 Nm
- Width (pitch) 18 mm
- Length 57 mm
- Height mounted on TH35-7.5/TH35-15/G32: 62 / 70 / 66 mm
- Insulating material temperature index (EN 60216-1) 130 °C
- Plastic material: Polyamide UL94V-0
There are no reviews
Data sheet
- Colour: Blue
- Type: Clamps
- Cross-Section: 50mmq
