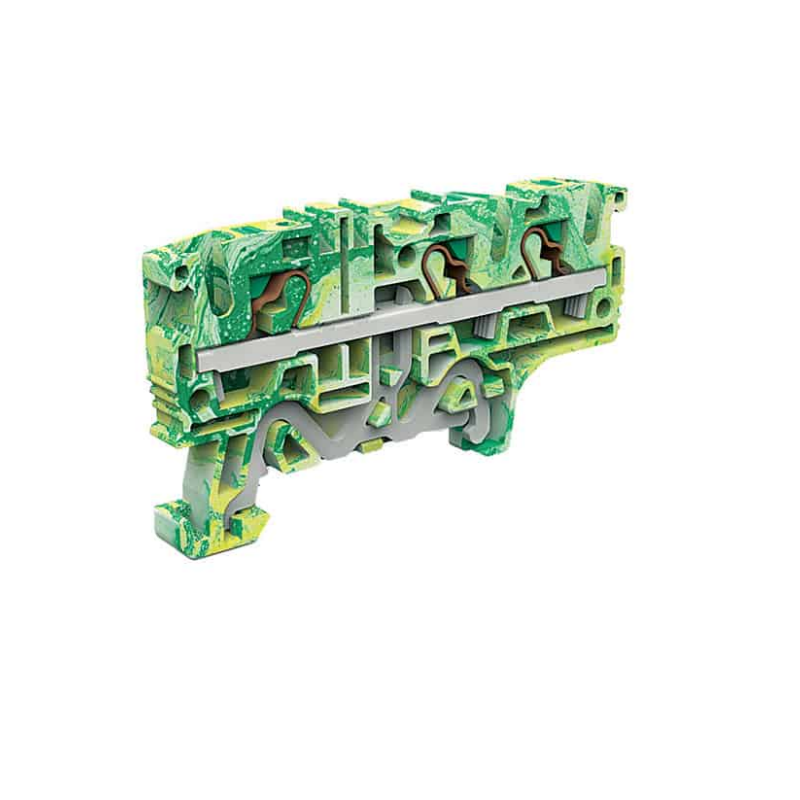

Cabur ground terminal Push-4mm EFCE410
CBR EFCE410
8017963192439
Cabur spring clamp with single-plane push-in grounding technology, with the following features:
- Function/Type Ground clamp
- Max AC/DC voltage 600 V (according to UL standard)
- Cross-section (min-max) 24-10 (AWG) (according to UL standard)
- Nominal cross-section 4 mm²
- A4 gauge
- Min/Max Operating Temperatures -40 °C / +110 °C
- Rated impulse voltage / pollution degree 6 kV / 3
- Strip length 10 mm
- Width (pitch) 6.2 mm
- Length 71.8 mm
- Color: yellow/green
- Insulating material temperature index (EN 60216-1) 130 °C
- Plastic material Polyamide UL94V-0
€3.04
Items Available: 7
: 4
There are no reviews
Data sheet
- Colour: Yellow/Green
- Type: Clamps
- Cross-Section: 4mmq
