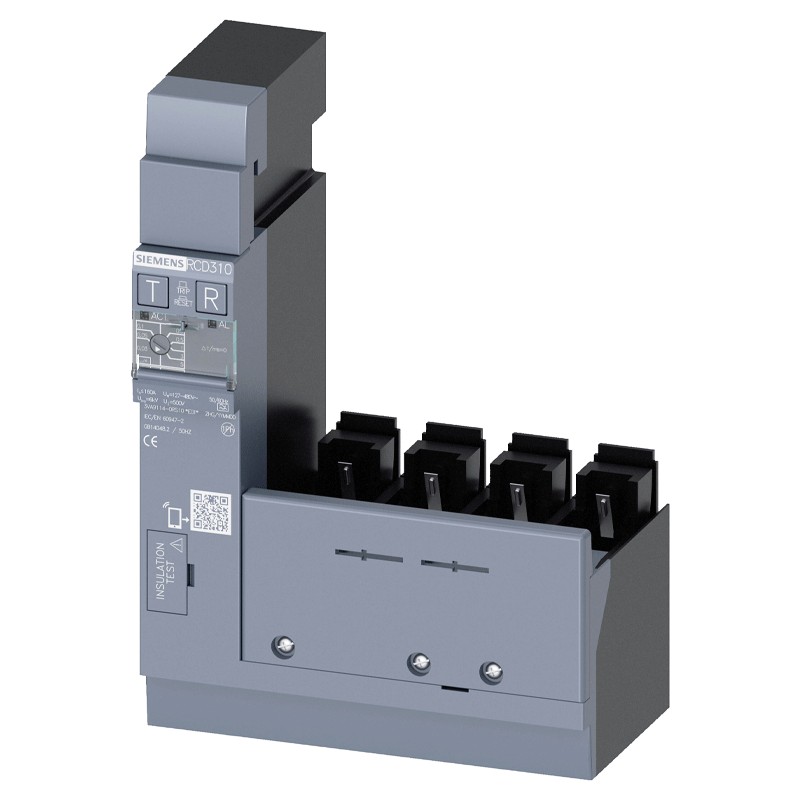

Siemens RCD310 differentiated module for 3VA11 4 poles 160A 3VA91140RS10


SIE 3VA91140RS10 4042949002246

Siemens differential protection module/device, with the following characteristics:

  • Rated operational voltage 127-480V
  • Rated fault current 0.03 ... 5A at 50/60 Hz
  • Current In 160A
  • 4 poles
  • Type A RCD310 Basic side mounted
  • Ideal for 3VA11 series moulded case circuit breakers
Request info about this product

Siemens RCD310 differentiated module for 3VA11 4 poles 160A 3VA91140RS10

€308.24
€308.24

Siemens RCD310 differentiated module for 3VA11 4 poles 160A 3VA91140RS10

€308.24
Tax included
klarna Pay in installments with Klarna
qty

Siemens RCD310 differentiated module for 3VA11 4 poles 160A 3VA91140RS10

€308.24

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.

Features:

  • Siemens series
  • Rated operational voltage 127-480V
  • Rated fault current 0.03 ... 5A at 50/60 Hz
  • Current In 160A
  • 4 poles
  • Type A RCD310 Basic side mounted
  • Ideal for 3VA11 series moulded case circuit breakers
  • Height 187 mm
  • Width 131,8 mm
  • Depth 70 mm
  • Net Weight 967 gr

Data sheet

Type:
Differential modules
Poles:
4P
Amps:
160A
