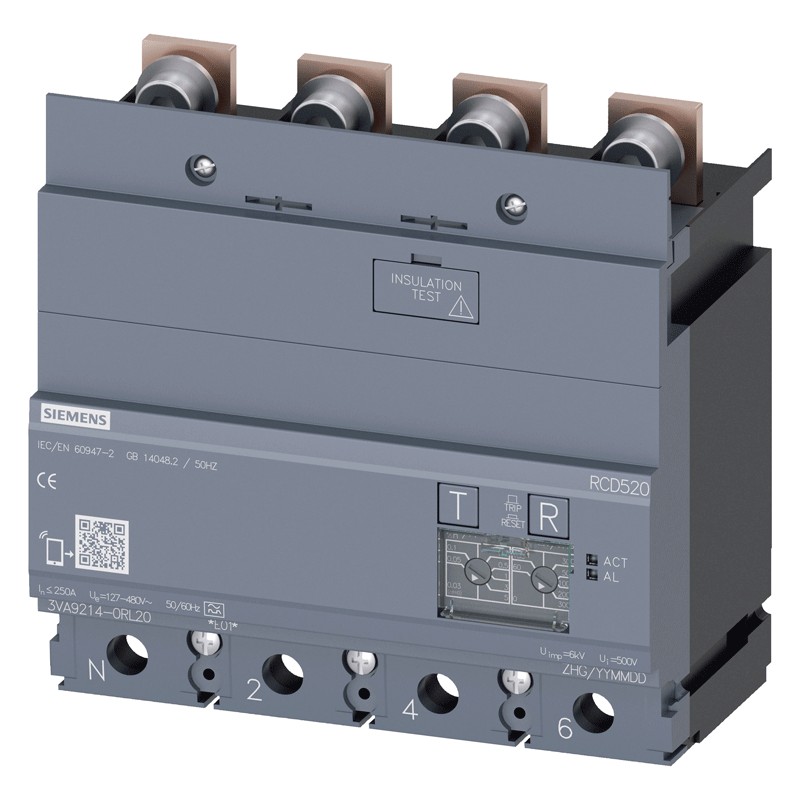

Siemens RCD520 differentiated module for 3VA12 series 4 poles 3VA92140RL20
SIE 3VA92140RL20
4042949002079
Siemens differential protection module/device for 3VA12 series, with the following characteristics:
- Rated operational voltage 100-480V
- Rated fault current 0.03...5A at 50/60 Hz
- Current In 250A
- 4 poles
- Type A RCD520 Basic side mounted
- Ideal for 3VA12 series moulded case circuit breakers
€540.99
Items Available: 51
Frequently bought together
The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.
Features:
- Siemens series
- Rated operational voltage 100-480V
- Rated fault current 0.03...5A at 50/60 Hz
- Current In 250A
- 4 poles
- Type A RCD520 Basic side mounted
- Ideal for 3VA12 series moulded case circuit breakers
- Height 115 mm
- Width 140 mm
- Depth 70 mm
- Net weight 1.551 gr
There are no reviews
Data sheet
- Type: Differential modules
- Poles: 4P
- Amps: 250A
