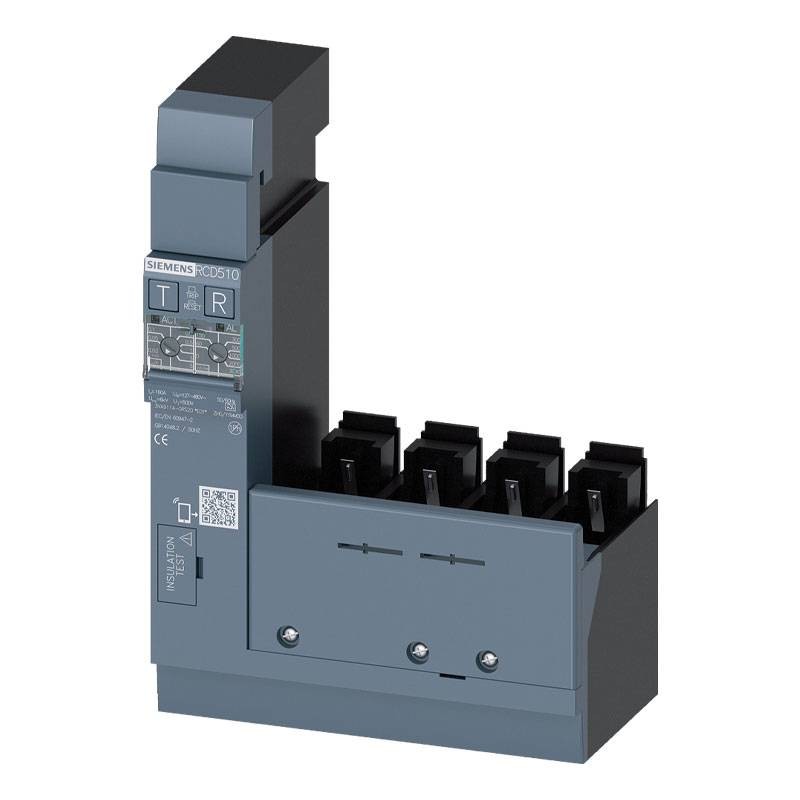

Siemens RCD510 Earth Leakage add-on Block 160A 4-pole Type A 3VA91140RS20
SIE 3VA91140RS20
4042949002253
Siemens RCD510 Earth Leakage add-on Block with the following characteristics:
- Rated current: 160 amps
- Number of poles: 4
- Degree of protection: IP40
- Type A
- Fixing type: Screw type
- Rated operating voltage 127-480V
- Rated fault current 0.03 ... 5A at 50/60 Hz
- Ideal for 3VA1 series molded case circuit breakers
€403.44
Items Available: 37
The new 3VA molded case circuit breakers provide high selectivity, extremely compact dimensions and high breaking powers. Different size sizes up to 1000 A and more than 500 accessory components enable them to meet all possible configurations of any application.
There are no reviews
Data sheet
- Type: Differential modules
- Poles: 4P
- Amps: 160A
