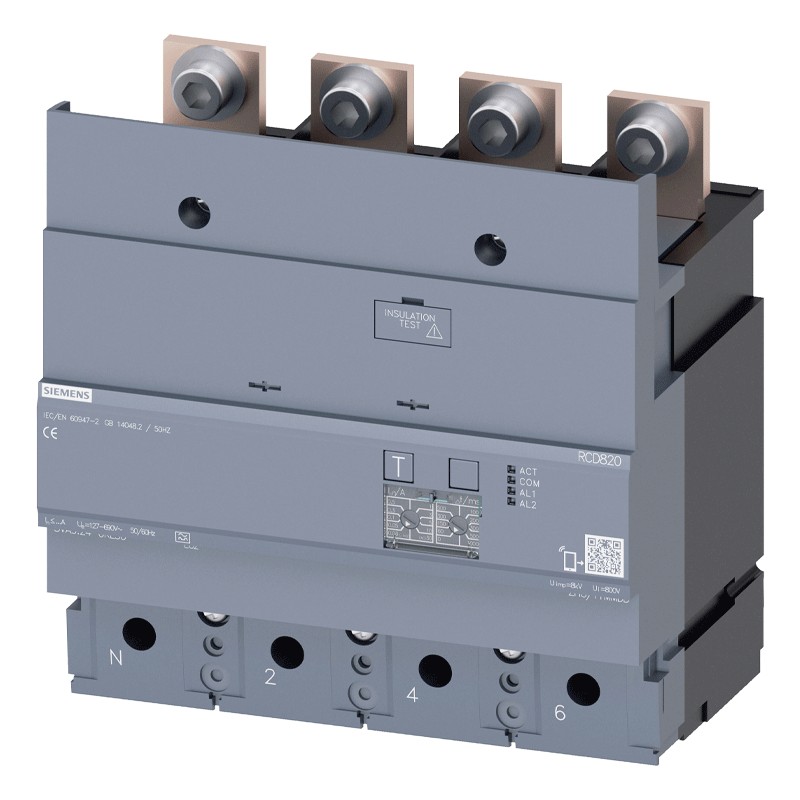

Siemens differential lock RCD820 3VA2 4 poles 400A 3VA93240RL30
SIE 3VA93240RL30
4042949002147
Siemens moulded differential block for 3VA2 series, with the following characteristics
- Rated operational voltage 100-690V
- Rated fault current 0.03...5A at 50/60 Hz
- Current In 400A
- 4 poles
- Type A RCD820 Basic side mounted
- Ideal for 3VA2 series moulded case circuit breakers
![](https://www.elettronew.com/41463-large_default/siemens-differential-lock-rcd820-3va2-4-poles-400a-3va93240rl30.jpg)
Siemens differential lock RCD820 3VA2 4 poles 400A 3VA93240RL30
€758.95
€758.95
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 12
The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.
Features:
- Siemens series
- Rated operational voltage 100-690V
- Rated fault current 0.03...5A at 50/60 Hz
- Current In 400A
- 4 poles
- Type A RCD820 Basic side mounted
- Ideal for 3VA2 series moulded case circuit breakers

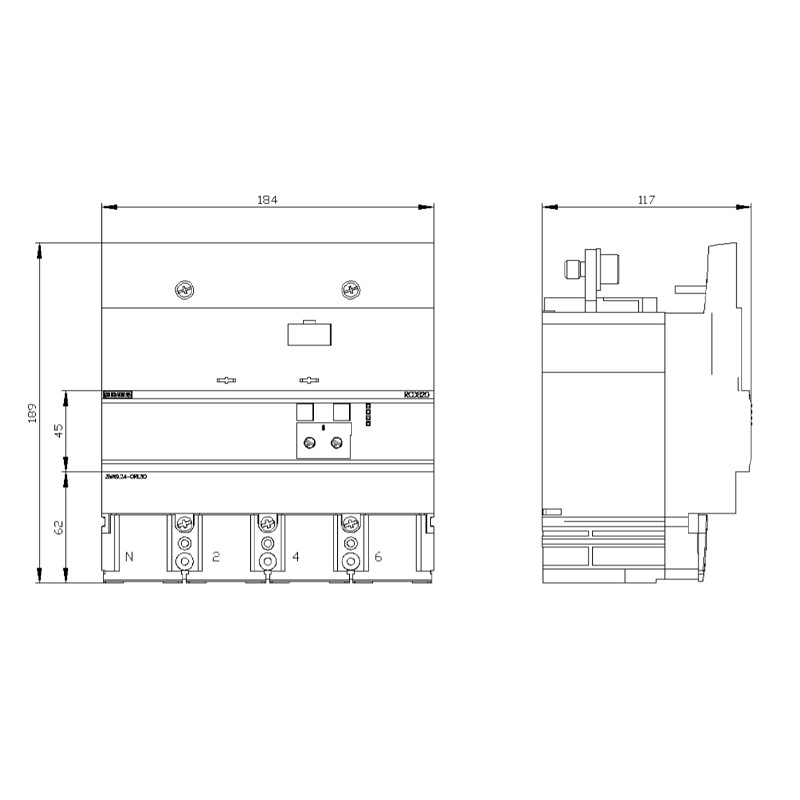

- Height 150 mm
- Width 184 mm
- Depth 110 mm
- Net weight 3.571 gr
Data sheet
- Type:
- Differential modules
- Poles:
- 4P
- Amps:
- 400A
