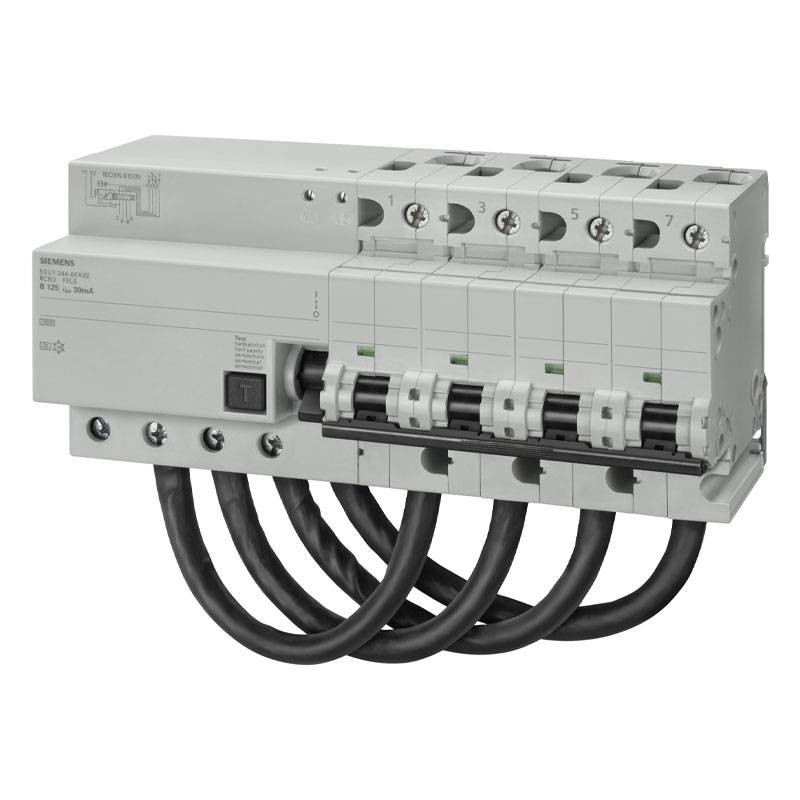

Siemens Residual Current Circuit Breaker 4P 125A 30mA 10kA 11M AC-Type 5SU13441KK82
SIE 5SU13441KK82
4001869360218
Siemens 5SU13441KK82 Residual Current Circuit Breaker with the following characteristics:
- Number of poles: 4
- Rated current: 125 Amperes
- Voltage: 400V AC
- Rated residual current: 30mA
- Rated short-circuit capacity: 10kA
- Type of AC differential
- Number of modules: 11
This type of breaker does not detect unidirectional pulsating currents, so it is suitable for simpler and less complex applications than Type A.
€450.00
Items Available: 9
: 9
The residual current circuit breaker is a device that combines magnetothermal protection against overloads and short circuits with differential protection against earth leakage currents.
Siemens AC-type residual current circuit breaker is a device that combines overload and short-circuit protection with differential protection against pure alternating type (AC) leakage currents to earth.
It is particularly suitable for conventional electrical systems without advanced electronic devices, such as lights and standard electrical outlets. This type of breaker does not detect unidirectional pulsating currents, so it is suitable for simpler and less complex applications than Type A.
Features:
- Number of poles: 4
- Overvoltage category: III
- Pollution degree: 2
- Voltage type of operating voltage: AC
- Degree of protection: IP20, if the distribution board is installed, with conductors connected
- Height: 90 mm
- Width: 198 mm
- Depth: 77 mm
- Number of modular width units: 11
- Ambient temperature during operation: -25/+55 degrees
- Ambient temperature during storage: -40/+75 degrees
There are no reviews
Data sheet
- Modules: 11
- Poles: 4P
- Breaking capacity: 10KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 125A
- Circuit Protections: RCBO
