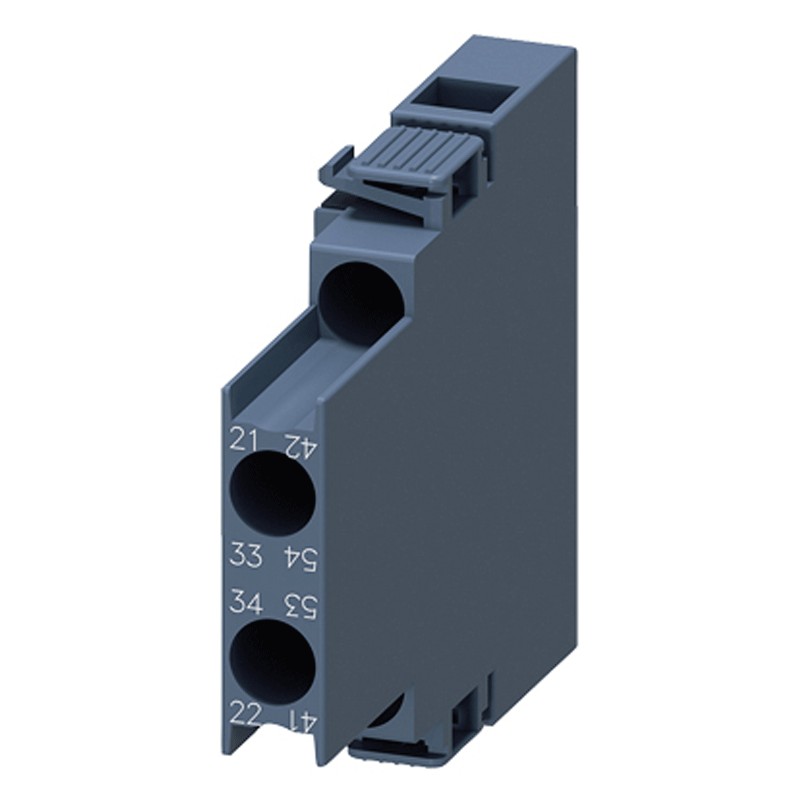

Siemens lateral auxiliary switch 1NO+1NC 3RH29111DA11

Siemens
Siemens
SIE 3RH29111DA11 4011209787094

Siemens lateral auxiliary switch, with the following characteristics:

  • Insulation voltage with pollution degree 3 with AC nominal value 690 Vac
  • Rated impulse withstand voltage 6 kV
  • Operating current 10A
  • Number of NC contacts for auxiliary contacts, with instantaneous switching 1, with delayed switching 0
  • Number of NO contacts for auxiliary contacts, with instantaneous switching 1, with delayed switching 0
Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens lateral auxiliary switch 1NO+1NC 3RH29111DA11
€12.86
€12.86

€12.86
Tax included
Calculate shipping cost
Items Available: 82
Further availability of the manufacturer
€12.86

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Further Siemens RCBO combinations:

Further Siemens circuit breaker combinations:

Features:

  • Siemens series
  • Insulation voltage with pollution degree 3 with AC nominal value 690 Vac
  • Rated impulse withstand voltage 6 kV
  • Operating current 10A
  • Number of NC contacts for auxiliary contacts, with instantaneous switching 1, with delayed switching 0
  • Number of NO contacts for auxiliary contacts, with instantaneous switching 1, with delayed switching 0
  • Mechanical service life (switching cycles) typ. 10.000.000
  • Degree of protection on front side IP20
  • Connections screw terminals
  • Type of fixing snap-in fixing
  • Width 10 mm
  • Height 57.4 mm
  • Depth 66 mm

There are no reviews

Data sheet

Type:
Auxiliary switches
Amps:
10A
