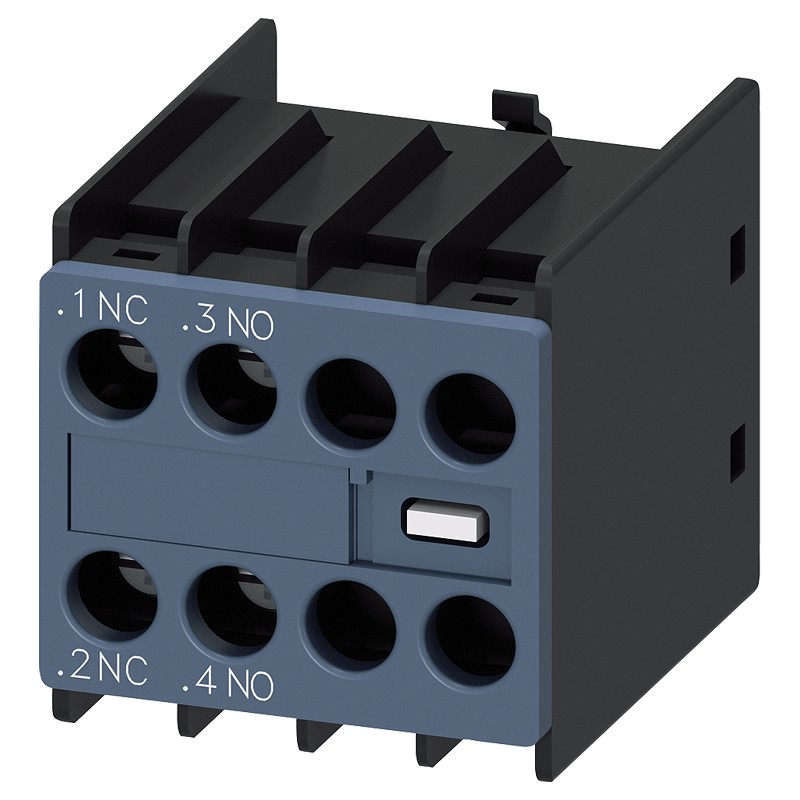

Siemens auxiliary switch on front side 1NO+1NC 3RH29111HA11
SIE 3RH29111HA11
4011209829381
Siemens front side auxiliary switch, with the following characteristics:
- Insulation voltage with pollution degree 3 with AC nominal value 690 Vac
- Rated impulse withstand voltage 6 kV
- Operating current 10A
- Number of NC contacts for auxiliary contacts with instantaneous switching 1, with delayed switching 0
- Number of NO contacts for auxiliary contacts with instantaneous switching 1, with delayed switching 0
€5.70
Items Available: 446
: 51
Features:
- Siemens series
- Insulation voltage with pollution degree 3 with AC nominal value 690 Vac
- Rated impulse withstand voltage 6 kV
- Operating current 10A
- Number of NC contacts for auxiliary contacts with instantaneous switching 1, with delayed switching 0
- Number of NO contacts for auxiliary contacts with instantaneous switching 1, with delayed switching 0
- Mechanical service life (switching cycles) typ. 10.000.000
- Degree of protection on front side IP20
- Connections screw terminals
- Type of fixing snap-in fixing
- Width 36 mm
- Height 37.5 mm
- Depth 43.7 mm
There are no reviews
Data sheet
- Type: Auxiliary switches
