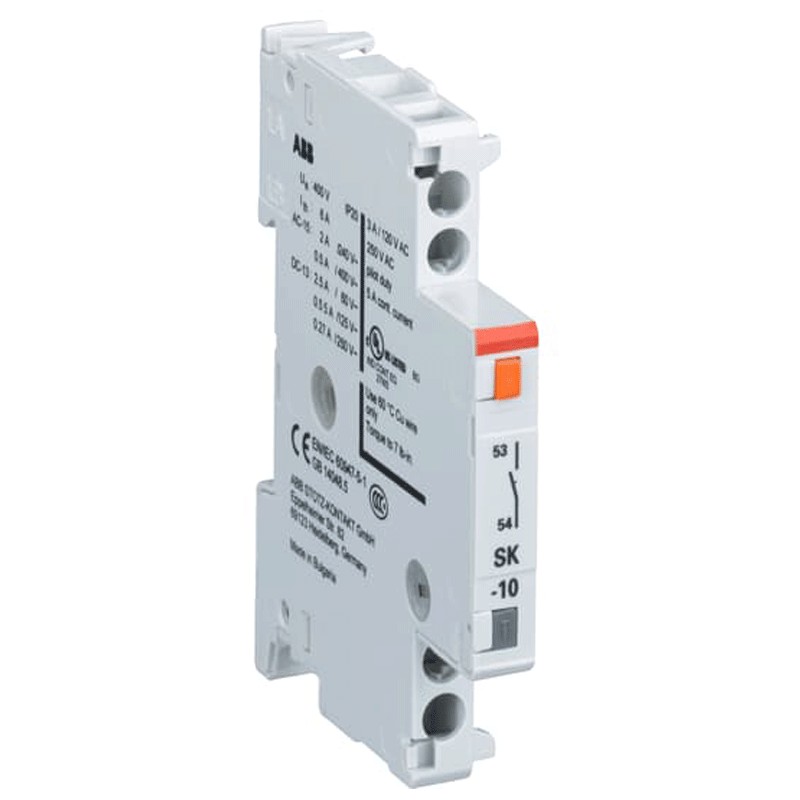

Abb signal contact side 1NO+1NC for MS225 0.5 modules EP 979 7
ABB EP 979 7
4013614302213
Abb side signal contact, with the following characteristics:
- Main circuit rated operating voltage 400 Vac
- Nominal voltage control circuit DC operation 250 Vac
- Nominal control circuit voltage AC operation 400 Vac
- Rated insulation voltage 690 Vac
- 0.5 module
- 1NO+1NC contacts
- DIN connection (universal for any control unit on the market)
- 50/60 Hz auxiliary circuit nominal frequency - DC auxiliary circuit
€20.58
Items Available: 19
: 3
Auxiliary contacts are secondary switching devices that operate in conjunction with primary switching equipment such as circuit breakers, relays, and contactors. These contacts are physically connected to the main switching mechanism and are activated simultaneously.
Features:
- Abb Series
- Main circuit rated operating voltage 400 Vac
- Nominal voltage control circuit DC operation 250 Vac
- Nominal control circuit voltage AC operation 400 Vac
- Rated insulation voltage 690 Vac
- Rated auxiliary circuit frequency 50/60Hz - DC auxiliary circuit
- 0.5 module
- Number of NO auxiliary contacts 1
- Number of NC auxiliary contacts 1
- Type of terminal Screw Terminals
- Degree of protection IP20
- Product width 9 mm
- Product depth 86 mm
- Product height 72 mm
- Product net weight 0,03 Kg
There are no reviews
Data sheet
- Type: Auxiliary switches
- Modules: 0.5
- Poles: 2P
