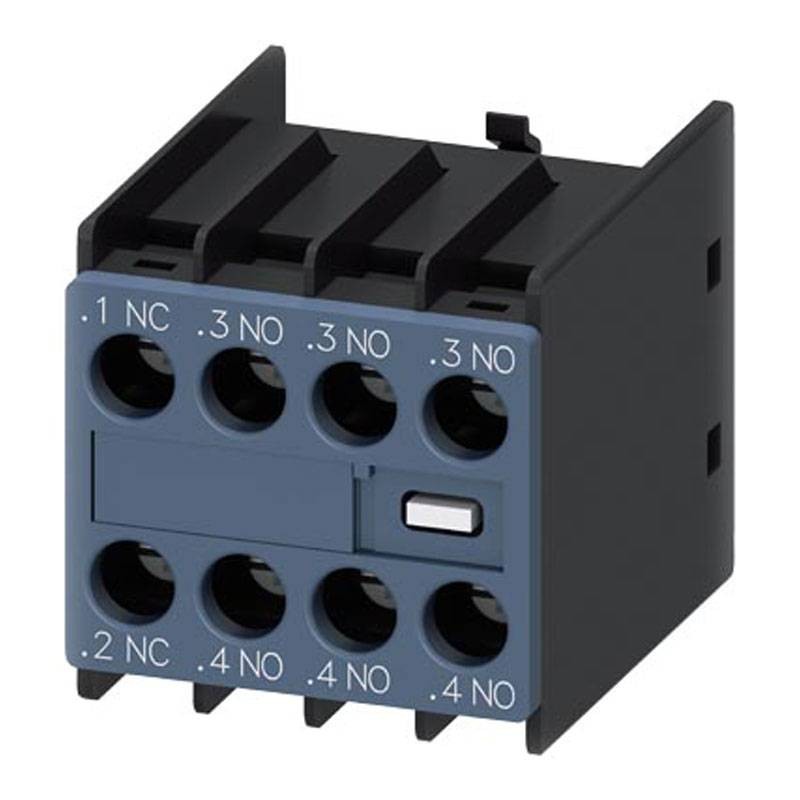

Siemens front side auxiliary switch 3NO+1NC 3RH29111HA31
SIE 3RH29111HA31
4011209829350
Siemens front side auxiliary switch for 3RT2 contactors and 3RH2 auxiliary contactors with the following characteristics:
- Insulation voltage with pollution degree 3 with AC rated value 690 Vac
- Rated value impulse withstand voltage 6 kV
- Operating current 10 amps
- Degree of protection: IP20
- Number of NC contacts for auxiliary contacts with instantaneous switching 1,with delayed switching 0
- Number of NO contacts for auxiliary contacts with instantaneous switching 3,with delayed switching 0
€13.68
Items Available: 11
Further Siemens RCBO combinations:
Further Siemens circuit breaker combinations:
Features:
- Insulation voltage with pollution degree 3 with AC rated value 690 Vac
- Impulse withstand voltage rated value 6 kV
- Operating current 10A
- Number of NC contacts for auxiliary contacts with instantaneous switching 1,with delayed switching 0
- Number of NO contacts for auxiliary contacts with instantaneous switching 3,with delayed switching 0
- Ambient temperature: during operation -25 ... +60 °C - during storage -55 ... +80 °C
- Front-side degree of protection IP20
- Screw terminal connections
- Fixing type: Snap-on
- Width 36 mm
- Height 37.5 mm
- Depth 43.7 mm
There are no reviews
Data sheet
- Type: Auxiliary switches
- Amps: 10A
