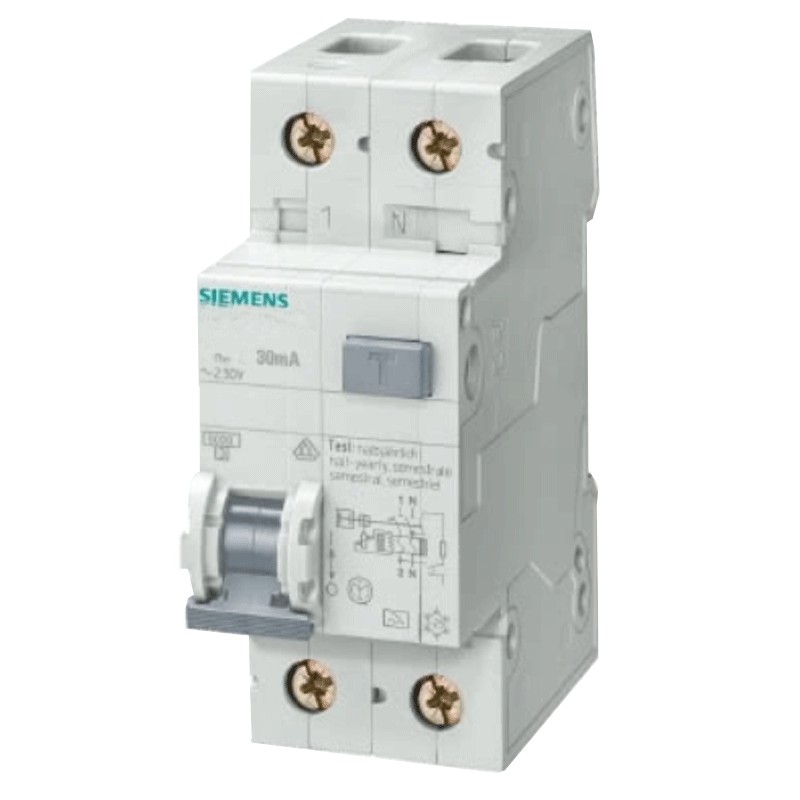

The thermal-magnetic circuit breaker is located next to the circuit breaker and combines magnetic and thermal protection and, if necessary, interrupts the electrical current.

The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.

The thermal-magnetic differential switch in the electrical system integrates three different protections:

• the magnetic one for short circuits that can put an entire building at risk of fire;
• the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
• the differential which protects the subject from a current leakage.



The C curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.

The differential switch type A tripping is assured for differential sinusoidal alternating currents and for pulsating differential unidirectional currents applied suddenly or slowly increasing (CEI EN 61008-1).

Features:

• Siemes series
• Voltage Nominal operating voltage AC230/240V Vac
• Current In 10A
• Interrupting capacity Icn 4,5kA
• Intervention curve C
• Rated differential current 30 mA
• 2 modules
• 1P+N
• Frequency of use 50 Hz
• Type of differential protection A
• Height 90 mm
• Width 36 mm
• Depth 77 mm
• Recessed depth 70 mm
• Mounting position as desired
• Net weight 269 g
• Tightening torque 2,5 Nm, max 3 Nm
• Degree of protection IP20, for installation in distribution board, with connected conductors
