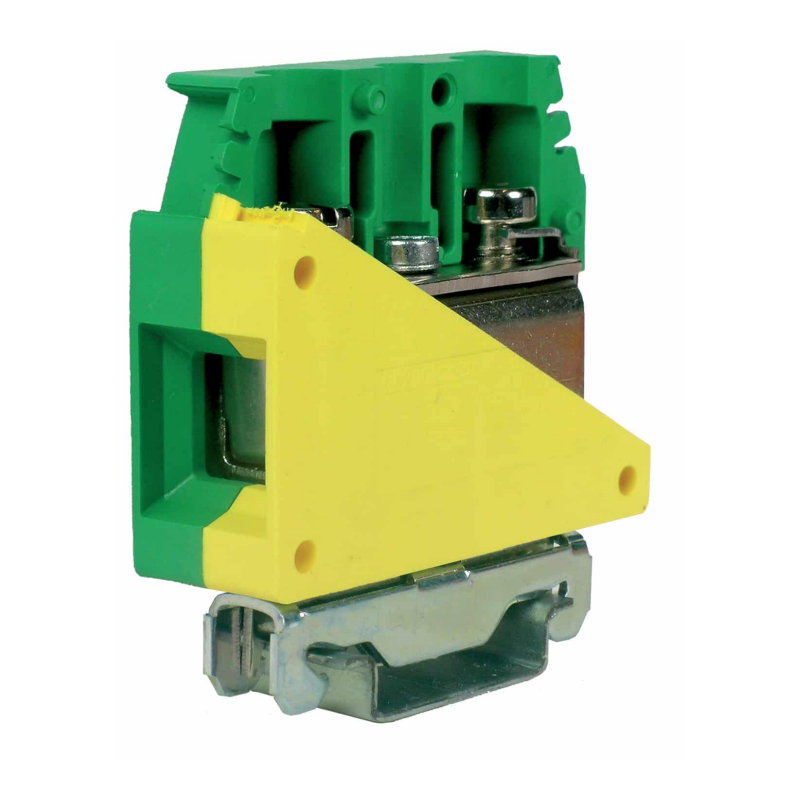

Cabur ground terminal 50mmq yellow green TO310
CBR TO310
8017963211154
Single-plane through-ground terminal with screw clamping Cabur TE series:
- 50mm² nominal cross-section
- Flexible conductor 1.5-50 mm²
- Solid conductor 1-70 mm²
- Conductor with terminal - 50mm² - WP500/40
- Color: yellow/green
- Gauge B9
- Max current with rated cross section 150A
- Max AC/DC voltage 600V (according to UL standard)
- Cross section (min-max) 16-1 (AWG) (according to UL standard)
- Min/Max operating temperatures -40 °C / +110 °C
- Rated impulse voltage / pollution degree 8 kV / 3
- Tightening torque (nom. / max.) 2.5 / 5 Nm
- Width (pitch) 18 mm
- Length 57 mm
- Plastic material Polyamide UL94V-0
€9.58
Items Available: 124
: 29
There are no reviews
Data sheet
- Colour: Yellow/Green
- Type: Clamps
- Cross-Section: 50mmq
