Tecnel LED Strip Power Supply 24Vdc 75W Constant Voltage TE-75-24TRI
Tecnel Dimmable LED strip power supply with DALI signal and NA button with the following features:
- Input: 200/240Vac
- Frequency: 50/60Hz
- Constant Voltage Output: 24Vdc
- Output Power: 75W
- Input Current: 0.4 Amps
- Max output current: 3.125A
- Degree of Protection: IP20
![dimmable](https://www.elettronew.com/img/tag-img/Dimmable.png)
![](https://www.elettronew.com/54282-large_default/tecnel-led-strip-power-supply-24vdc-75w-constant-voltage-te-75-24tri.jpg)

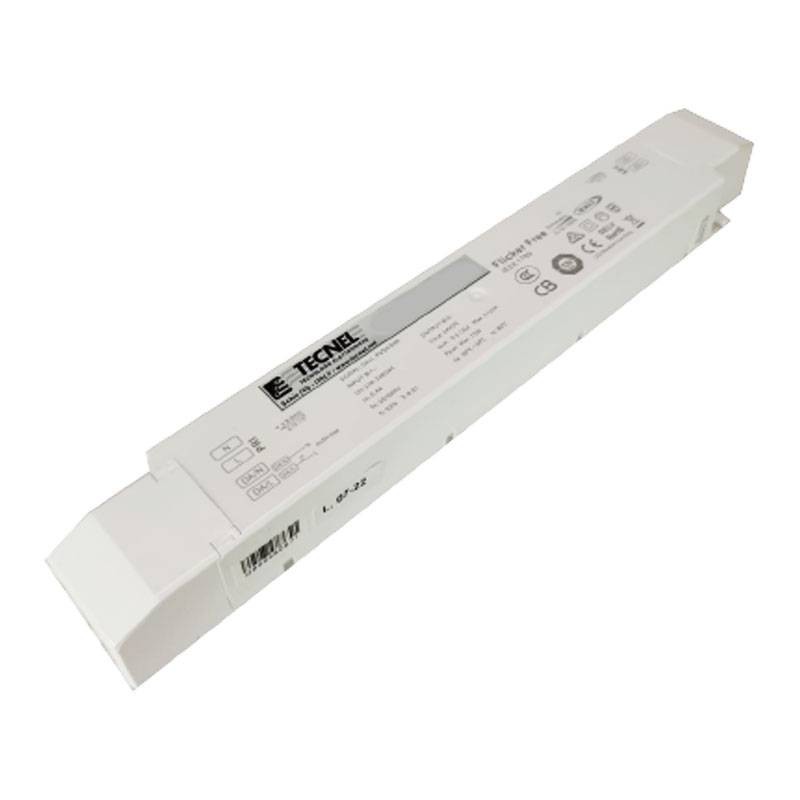

Tecnel LED Strip Power Supply 24Vdc 75W Constant Voltage TE-75-24TRI
Tax included
![klarna](/../img/logo-klarna-list.png)
Constant-voltage LED strip feeder dimmable directly on 230Vac power line with home automation actuators phase-cut or phase-cut dimmer output with both Leading edge and Trailing edge technology in keystone, bottom-box and DIN-rail versions with knob, push-button, FM remote control and SMART APP Bluetooth, Bluetooth Mesh and WiFi controls.
This feature makes it much more versatile than the dimmable versions with protocol signals because it does not need any other wires besides the two 230Vac power supply wires. Suitable for restoration installations where there is a lack of space to run other control wires besides the two 230Vac power supply wires. Thanks to these our POWER SUPPLIERS, any CV LED light fixture powered at constant voltage such as single-color LED STRIPs can be dimmed at will in the same way as traditional incandescent or halogen bulbs without having to change their electrical system connections. In push-button PUSH dimming in a single control of multiple units, no connections with additional synchronization wires are needed. Open-circuit (OCP), short-circuit (SCP), overload (OLP) and overtemperature (OTP) protections, self-restoring. Reference Standards: EN61347-1-2-13, EN6100-3-2-3, EN6100-4-2-3-4-5-6-8-11, EN61547.
Features:
- Dimming interface : DALI signal ,Push Dim ( NO contact )
- DALI protocols : DALI 1 , DALI 2
- PWM digital dimming
- Dimming range from 0 to 100%
- Complies with low voltage safety standard
- Suitable for indoor environments
- Power factor : >0.97 at 230Vac
- Efficiency : >92%
- Operating temperature : tc: 80°C ta: -20°C to 50°C
Data sheet
- Type:
- Power supplies
- Voltage:
- 24V
- Shape:
- Rectangular
- Degree of protection:
- IP20
- Watts:
- 51 to 100W
- Dimmable:
- Yes
