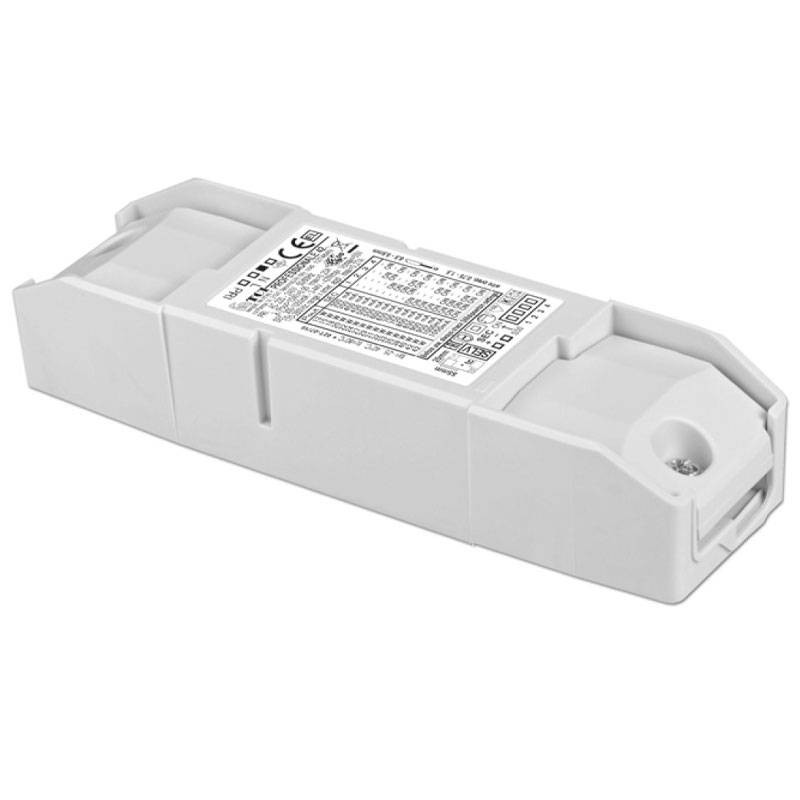

Professional Power Supply 42 for Led TCI 127484N
TCI 127484N
8010703385153
Professional power supply 42 for TCI LEDs in direct current with DIP-SWITCH:
- Nominal voltage 220...240 V
- Non-dimmable
- AC Operation range Operating voltage AC 198 ÷ 264 V
- DC Operation range Operating voltage DC 176 ÷ 275 V
- I out DC 300 mA const.
- U out V 55
- Temperature -25...+40 / -25...+45 degrees
- Tc 80 degrees
€19.83
Items Available: 5
: 1
Features:
- Multi-power supply provided with dip-switch for output current selection.
- Independent IP20 power supply for indoor use (PROFESSIONAL 42)
- Class II protected against electric shock from direct and indirect contacts (PROFESSIONAL 42)
- PFC active
- Current regulated ±5 % including temperature variations
- Opposing input and output terminals (cable cross section up to 1.5 mm2 / AWG15)
- Clamping on primary and secondary for cable diameters: min. 2 mm - max. 11 mm (PROFESSIONAL 42)
- Fixing of power supply via screw slots
Protections:
- thermal and short-circuit;
- against mains extra-voltages
- thermal protection = C.5.a
Output voltage (min/max):
- 300 to 750mA 3...444
- 800mA to 1000mA 3...42
- From 1050ma 3...40
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 1 to 20W
- Output voltage: 44 Vdc
- Input voltage: 220/240V
