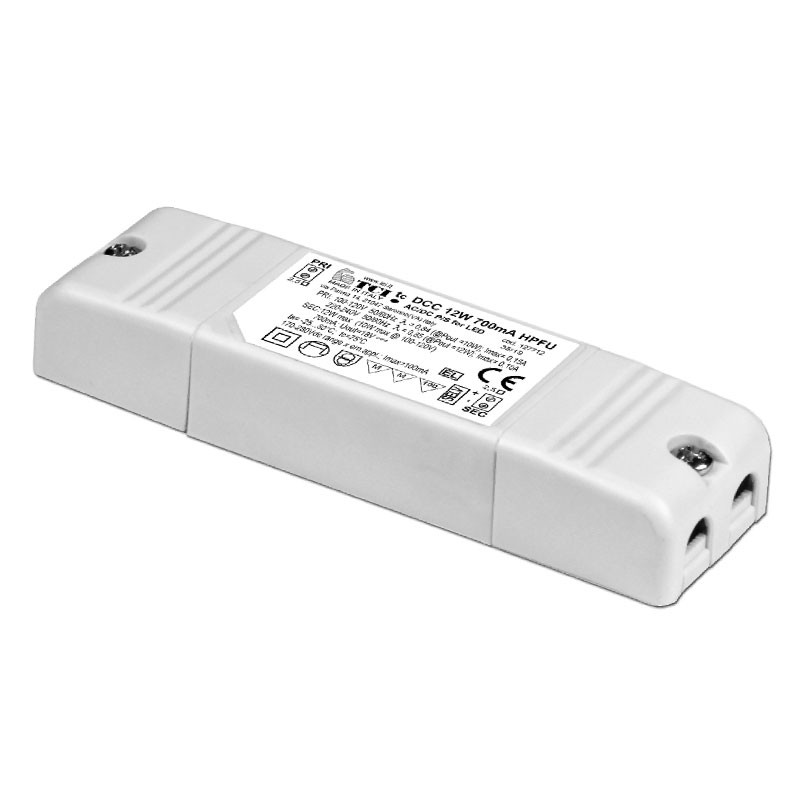

Power Supply for LED TCI 12W 700MA HPFU IP20 127712
TCI 127712
8010703350359
Independent electronic HPFU LED DC power supply unit, Tci with the following characteristics:
- Output power: 12W
- Output watts: 19
- DC voltage: 2...16
- Power consumption: 700 mA constant
- Frequency: 50-60 Hz
- CT: -25/+45°C
- TC:+75°C
- Maximum power: λ 0.85 C
- Maximum efficiency: η > 80 %
- Non-dimmable
- Degree of protection: IP20
- Usage: for indoor use
- Minimum cutout hole diameter: 40 mm

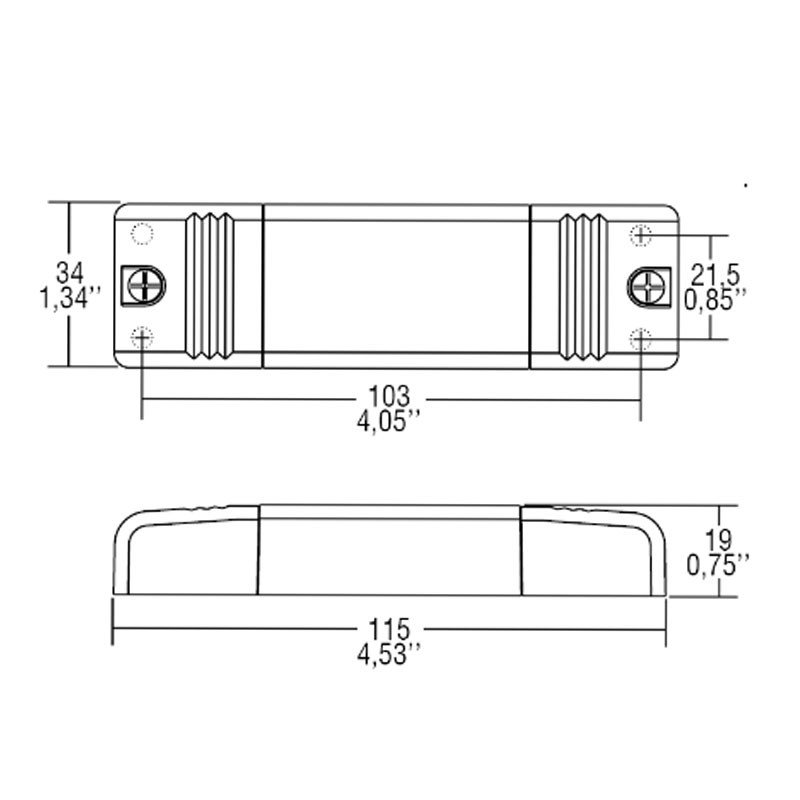

- Dimensions: 115 x 19 x 34 mm
- Approvals: ENEC - UL (class 2) - CCC - RCM - CE - EAC - UKCA
€12.96
Items Available: 10
: 9
Other technical features:
- Class II protected against electric shock by direct and indirect contacts
- Supplied with terminal cover and cable clamp
- Opposing input and output terminals (cable cross section up to 2.5 mm2 / AWG13)
- Single terminal block on primary and secondary
- Cable clamp on primary and secondary for cable diameters: min. 3 mm - max. 8 mm
- Fastening of power supply via screw slots
- Thermal protection = C.5.a
- RIPPLE FREE
- ACTIVE PFC (pf>0.9)
- SELV <>
- WIDE RANGE INPUT VOLTAGE
Protections:
- Thermal and short circuit
- Against mains extra-voltages
- Against overloads
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 1 to 20W
- Output voltage: 250-700 mA
- Input voltage: 220/240V
