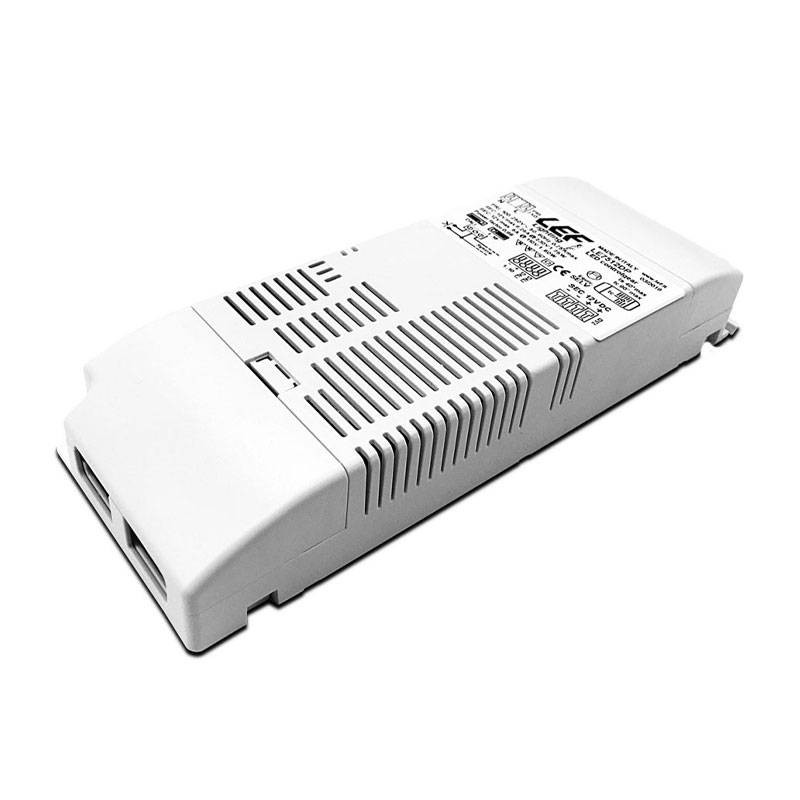

LEF LED strip power supply unit 75W 12VDC constant voltage IP20 LE7512DP
LEF LE7512DP
8054521530043
Power supply for LEF constant voltage (CV) dimmable LED strip with push-button control and DALI signal with the following characteristics:
- Input voltage: 110-240Vac
- Output voltage: 12 Vdc
- 110V output power: 60W
- 230V output power: 75W
- Output current 110V: 5000mA
- 230V output current: 6250 mA
- Command: PUSH - DALI - 0-10V - 1-10V - POT47k
- Mains frequency: 50/60 Hz
- Degree of protection: IP20
- Dimmable
Power supply not suitable for no-load operation.
€67.20
Items Available: 3
: 1
Features:
- Plastic container
- Power supply unit for independent use
- Electrical protection class II
- Degree of protection IP20
- Brightness adjustment via: push button (PUSH 230Vac), push button (PUSH 12Vdc) (LE7512DP), push button (PUSH 24Vdc) (LE7524DP), DALI signal, 0-10V signal, 1-10V signal, 47Kohm potentiometer
- "LEVEL MEMORY" and "STATUS MEMORY" function.
- Synchronization of multiple power supplies via wiring (max 10)
- Energy Efficiency: 90%
- Open circuit protection (OCP)
- Over temperature protection (OTP)
- Short Circuit Protection (SCP)
- Power Factor Factor (PFC) 0.96
- Ambient operating temperature Ta -10°C ÷ +40°C
- Maximum temperature at point Tc 70°C
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: 51 to 100W
- Output voltage: 12 Vdc
- Input voltage: 110/240V
