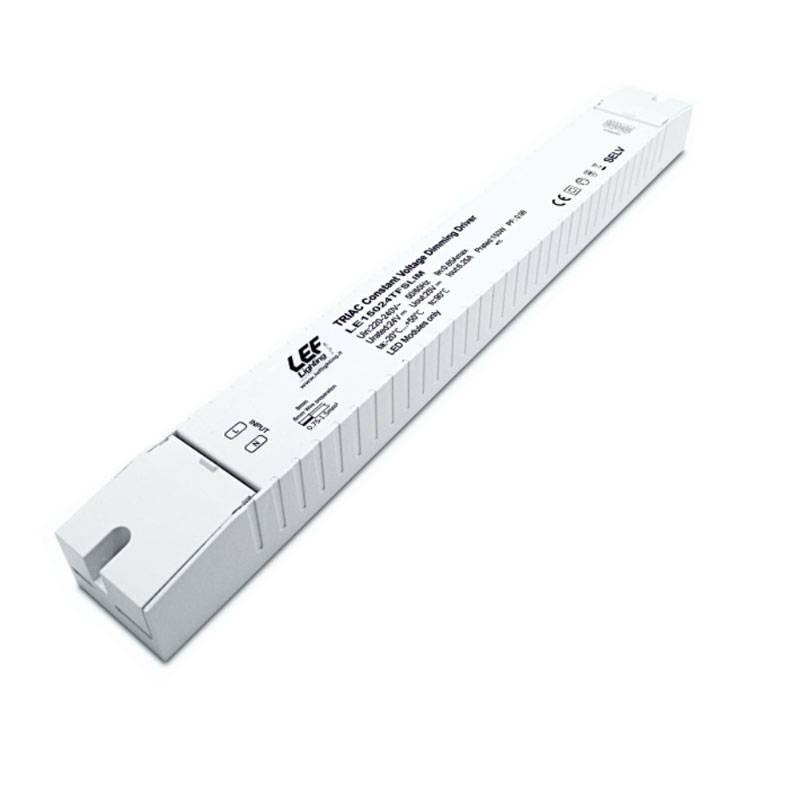

LEF LED Strip Power Supply 75W 24VDC Constant Voltage IP20 LE7524TFSLIM
LEF LE7524TFSLIM
8054521539282
LEF constant voltage (CV) dimmable phase cut LED strip power supply with the following characteristics:
- Input voltage: 220-240Vac
- Output voltage: 24 Vdc
- Output power (Min and Max): 18-75W
- Output current (Min and Max): 750-3125 mA
- Control: TRIAC-IGBT
- Mains frequency: 50/60 Hz
- Degree of protection: IP20
- Dimmable
Power supply not suitable for no-load operation.
€68.57
Items Available: 1
Features:
- Plastic container
- Power supply unit for independent use
- Electrical protection class II
- Degree of protection IP20
- Dimmable at Phase Cut with modes: TRIAC Leading-Edge, IGBT Trailing-Edge
- Dual output connection
- Energy Efficiency: 88%.
- Overload Protection (OLP)
- Overvoltage Protection (OVP)
- Short Circuit Protection (SCP)
- Power Factor Factor (PFC) 0.98
- Ambient operating temperature Ta -20°C ÷ +50°C
- Maximum temperature at point Tc 80°C
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: 51 to 100W
- Output voltage: 24 Vdc
- Input voltage: 220/240V
