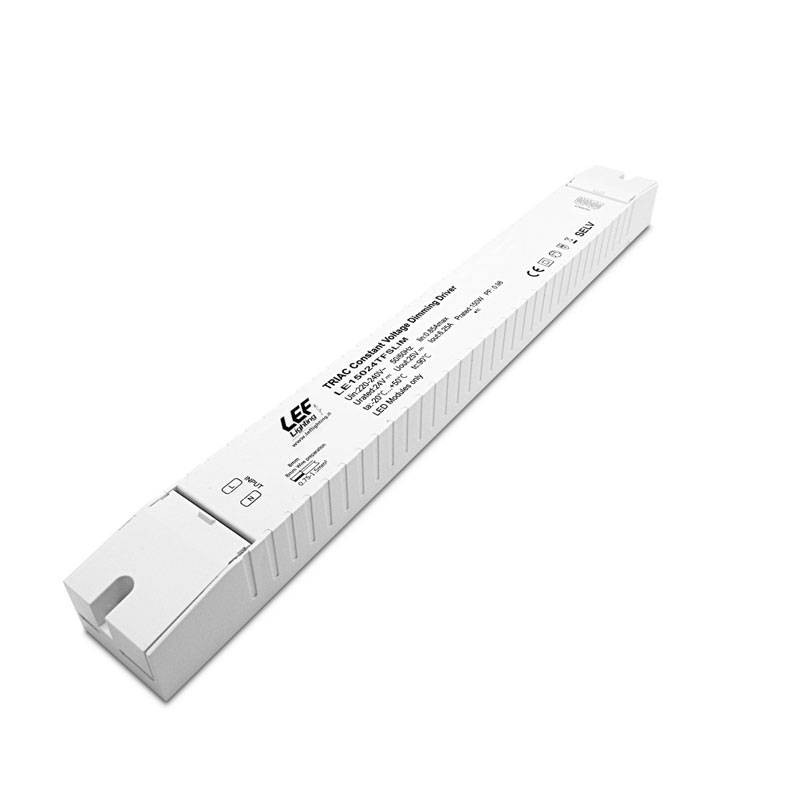

LEF LED Strip Power Supply 150W 24VDC Constant Voltage IP20 LE15024TFSLIM

Lef
Lef
LEF LE15024TFSLIM 8054521539299

LEF constant voltage (CV) dimmable phase cut LED strip power supply with the following characteristics:

  • Input voltage: 220-240Vac
  • Output voltage: 24 Vdc
  • Output power (Min and Max): 35-150W
  • Output current (Min and Max): 1460-6250 mA
  • Control: TRIAC-IGBT
  • Mains frequency: 50/60 Hz
  • Degree of protection: IP20
  • Dimmable

Power supply not suitable for no-load operation.

  • dimmable
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    LEF LED Strip Power Supply 150W 24VDC Constant Voltage IP20 LE15024TFSLIM
    €85.33
    €85.33

    €85.33
    Tax included
    Calculate shipping cost
    Items Available: 3
    Further availability of the manufacturer
    €85.33

    Buy it within and receive it from Tuesday, 23 December
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Features:

    • Plastic container
    • Power supply unit for independent use
    • Electrical protection class II
    • Degree of protection IP20
    • Dimmable at Phase Cut with modes: TRIAC Leading-Edge, IGBT Trailing-Edge
    • Dual output connection
    • Energy Efficiency: 88%.
    • Overload Protection (OLP)
    • Overvoltage Protection (OVP)
    • Short Circuit Protection (SCP)
    • Power Factor Factor (PFC) 0.98
    • Ambient operating temperature Ta -20°C ÷ +50°C
    • Maximum temperature at point Tc 90°C

    There are no reviews

    Data sheet

    Type:
    Power supplies
    Degree of protection:
    IP20
    Watts:
    From 101 to 200W
    Output voltage:
    24 Vdc
    Input voltage:
    220/240V
