LEF LED Strip Power Supply 100W 24VDC Constant Voltage IP65 LE10024IP65D
LEF LE10024IP65D
8054521538858
Power supply for LEF constant voltage (CV) dimmable LED strip with push-button control and DALI signal with the following characteristics:
- Input voltage: 220-240Vac
- Output voltage: 24 Vdc
- Output power: 100W
- Output current: 4250 mA
- Command: PUSH - DALI
- Mains frequency: 50/60 Hz
- Degree of protection: IP65
- Dimmable
Power supply not suitable for no-load operation.
€64.51
Items Available: 9
Features:
- Plastic enclosure
- Outdoor power supply
- Fully resined electronic board
- Electrical protection class II
- Degree of protection IP65
- PVC cables length 200mm

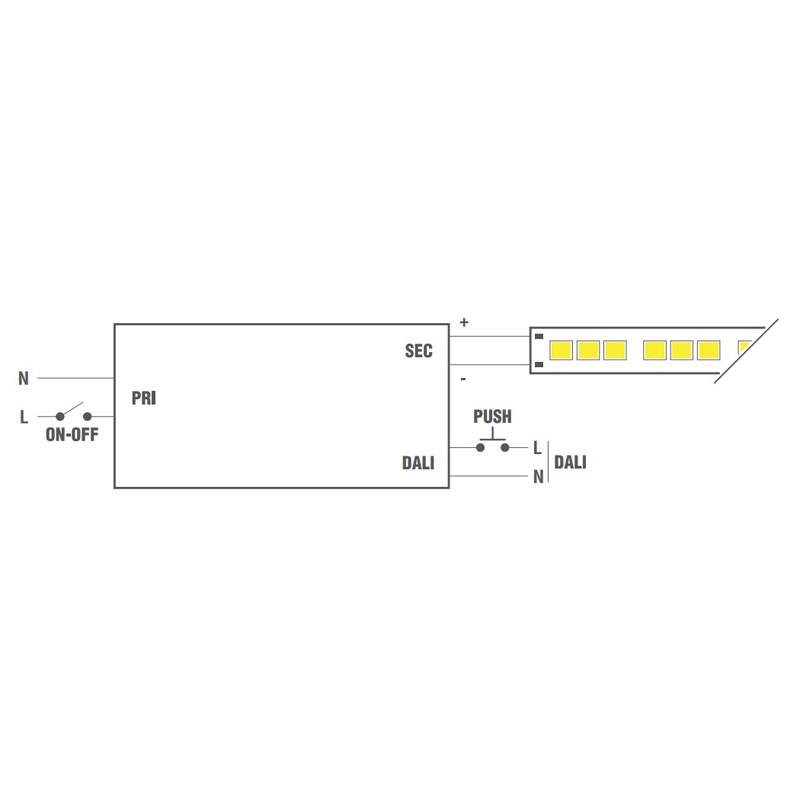

- Brightness adjustment by: PUSH (230Vac), DALI signal
- Energy Efficiency: 92%.
- Open circuit protection (OCP)
- Over temperature protection (OTP)
- Short circuit protection (SCP)
- Power Factor Factor (PFC) 0.96
- Ambient operating temperature Ta -10°C to +45°C
- Maximum temperature at point Tc 85°C
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP65
- Watts: 51 to 100W
- Output voltage: 24 Vdc
- Input voltage: 220/240V
