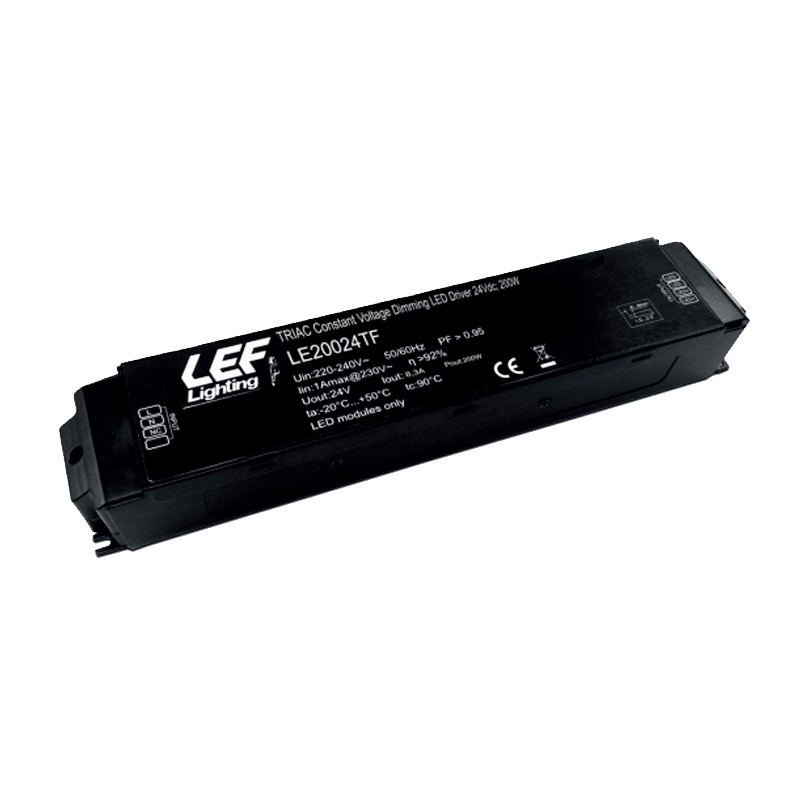

LEF 200W 24W Dimmable LED Power Supply LE20024TF
LEF LE20024TF
8054521534621
Power supply for LEF LEDs:
- Input voltage 220-240 VAC
- Mains frequency 50/60 Hz
- Output power 200W
- TRIAC-IGBT control
- Dimmable
- Output voltage 24V
- Output current 8300 mA
- Weight 900 grams
€88.98
Items Available: 4
Features:
- Metal container
- Power supply unit for independent use
- Electrical protection class I
- Degree of protection IP20
- Input voltage 220-240Vac
- Input frequency 50/60Hz
- Constant output voltage 24Vdc
- Phase-cut dimmable with modes: - TRIAC Leading-Edge - IGBT Trailing-Edge
- Dual output connection
- Overload Protection (OLP)
- Over-Temperature Protection (OTP)
- Overvoltage Protection (OVP)
- Short Circuit Protection (SCP)
- Power factor factor (PFC) 0.95
- Ambient operating temperature Ta -20°C to +50°C
- Maximum temperature at point Tc 90°C
- IP20 degree of protection for indoor use
Oggetto perfetto, come da descrizione.
Ottimo funzionamento abbinato a dimmer a taglio di fase .
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 101 to 200W
- Output voltage: 24 Vdc
- Input voltage: 220/240V
