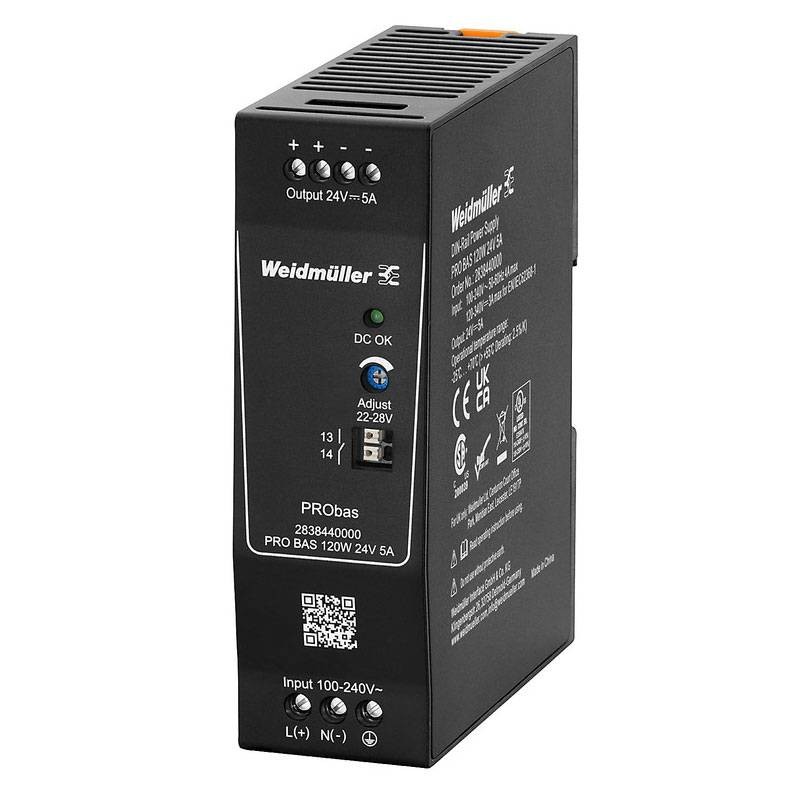

Weidmuller Pro Bas switching power supply:
- Single phase 1F
- Output voltage 24VDC
- Output current 5A
- Input voltage type AC
€83.65
Items Available: 45
: 4
Input:
Current draw in relation to input voltage:
- AC voltage type
- Input voltage 230 V
- Input current 1.13 A
- AC voltage type
- Input voltage 115 V
- Input current 2.02 A
- DC voltage type
- Input voltage 120 V
- Input current 1.11 A
- AC input voltage range 85...264 V AC (thermal drift at 100 V AC)
- AC frequency range 4565 Hz
- DC input voltage range 110...370 V DC (derating at <120 V DC)
- Peak current 40 A @ 230 V AC, 25 °C
- Input fuse (internal) Yes
- Recommended pre-fuse 4 A / DI, fuse, 6 A, Car. B, circuit breaker, 2 to 4 A, Car. C circuit breaker
- Connection technique Screw connection
- Cable connection technique Screw connection
- Rated input voltage 110...240 V AC / 120...340 V DC
Output:
- 5.5mF capacitive load
- Continuous output current to Unominal 5 A @ 55°C, 3.125 A @ 70°C
- Rated output current to Unom. 5 A @ 55 °C
- Residual ripple, peak interruption ? 50 mVpp @ full load
- Parallelability yes, max. 3
- Power output 120 W
- Overload protection Yes
- Reverse voltage protection Yes
- Connection technique Screw connection
- Cable connection technique Screw connection
- Output voltage, max. 28 V
- Output voltage, min. 22 V
- Rated output voltage 24 V DC
Mains drop bridging time:
- Mains drop bridging time, min. 20 ms
- Type of AC input voltage
- Input voltage 120 V
- Output current 5 A
- Output voltage 24 V
- Mains drop bridging time, min. 40 ms
- Type of AC input voltage
- Input voltage 230 V
- Output current 5 A
- Output voltage 24 V
General data:
- Start +40 °C
- Earth leakage current, max. 3.5 mA
- Housing design Protective insulation, plastic
- Power factor (approx.) 0.5 @ 120 V AC, 0.51 @ 230 V AC
- Degree of effectiveness 90% @ 230 V AC
- Degree of protection IP20
- Operating indicator Green LED
- Mounting position, mounting instructions Horizontal on mounting rail TS35. 50 mm clearance at top and bottom for air circulation. Side-by-side mounting possible without spacing
- Power dissipation, rated load 14.5 W
- Power dissipation, no-load operation 1.5 W
- Short-circuit protection Yes
- Overtemperature protection Yes
- AC interruption bridging time at Inom. > 80 ms @ 230 V AC / > 20 ms @ 115 V AC
- Humidity 595 % relative humidity, non-condensing
MTBF:
- According to SN 29500
- Operating time (hours), min. 814,200 h
- Ambient temperature 40 °C
- Input voltage 230 V
- Power output 120 W
- Duty cycle 100 %.
Features:
- Protection class I, with PE connection
- Corrosion degree 2
- Output/ground isolation voltage 3.5 kV
- Output/ground isolation voltage 0.5 kV
- Input/output isolation voltage 3.5 kV
- Depth 100 mm
- Depth (inches) 3.937 inch
- Vertical position 130 mm
- Height (inches) 5.118 inch
- Width 40 mm
- Width (inches) 1.575 inch
- Net weight 490 g
- Storage temperature -40 °C...85 °C
- Operating temperature -25 °C...70 °C
- Humidity 595 % relative humidity, non-condensing
Connection data (input):
- Tightening torque, max. 0.6 Nm
- Tightening torque, min. 0.5 Nm
- Screwdriver blade 0.6 x 3.5
- Number of terminals 3 for L/N/PE
- Cable connection cross section, AWG/kcmil , max. 12 AWG
- Cable connection cross section, AWG/kcmil , min. 26 AWG
- Cable connection cross section, flexible , max. 6 mm²
- Cable connection cross section, flexible , min. 0.5 mm²
- Cross section of cable connection, rigid , max. 6 mm²
- Cable connection cross section, rigid , min. 0.5 mm²
- Connection technique Screw connection
Connection data (output):
- Tightening torque, max. 0.6 Nm
- Tightening torque, min. 0.5 Nm
- Screwdriver blade 0.6 x 3.5
- Number of terminals 4 (++ / --)
- Cable connection cross section, AWG/kcmil , max. 12 AWG
- Cable connection cross section, AWG/kcmil , min. 26 AWG
- Cable connection cross section, flexible , max. 6 mm²
- Cable connection cross section, flexible , min. 0.5 mm²
- Cross section of cable connection, rigid , max. 6 mm²
- Cable connection cross section, rigid , min. 0.5 mm²
- Connection technique Screw connection
There are no reviews
Data sheet
- Type: Power supplies
- Voltage: 24V
- Degree of protection: IP20
- Amps: 5A
