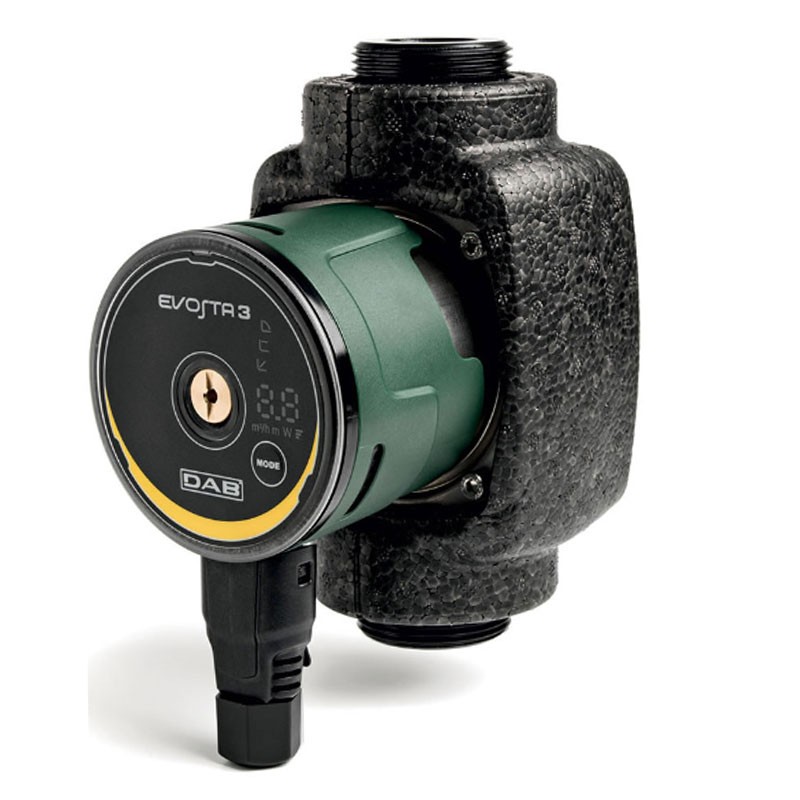

DAB Electronic Circulator EVOSTA3 80/180 DN25 1-1/2" 180mm
DAB 60231854
8059893360809
The DAB EVOSTA3 80/180 DN25 1"1/2 electronic circulator is a high-efficiency device for domestic heating and air conditioning systems. Quiet, compact, and intelligent, it ensures comfort, reliability, and low energy consumption.
-
Threaded connections: DN25 (G 1” 1/2)
-
Maximum flow rate: 4.2 m³/h
-
Maximum head: 8 m
-
Centre distance: 180 mm
-
Max operating pressure: 10 bar
-
Protection class: IPX5 (waterproof)
-
Motor: synchronous with permanent magnet and inverter
-
Integrated display: power, head, and instantaneous flow
-
Functions: automatic degassing, anti-blocking, anti-limescale
-
Power supply: single-phase
-
Installation: domestic heating and air conditioning
€266.16
Items Available: 3
: 1
DAB EVOSTA3 80/180 DN25 for home comfort
The DAB EVOSTA3 80/180 DN25 is an electronic wet rotor circulator designed for water circulation in domestic and residential heating and air conditioning systems. Thanks to the permanent magnet synchronous motor and integrated inverter system, it automatically adjusts performance according to the system's demand, ensuring energy savings and quiet operation.
It is ideal for replacing traditional pumps, improving system performance and reducing operating costs.
Efficiency and savings with integrated inverter
The electronic system with automatic speed control adapts the circulator's operation to the actual needs of the system.
This allows to:
- Reduce consumption by up to 50% compared to fixed-speed models;
- Prevent water hammer and overloads;
- Optimize thermal comfort in every usage condition.
EVOSTA3 is the first circulator with IPX5 protection rating, resistant to water splashes and humidity, perfect even for installations in challenging environments.
Digital control and ease of use
The front control panel allows easy management of all settings through a single MODE button.
It features nine operating modes:
- 3 with proportional pressure,
- 3 with constant pressure,
- 3 with constant curve.
The integrated digital display shows in real-time:
- height of the selected curve (in meters),
- instantaneous head and flow rate,
- power consumption in Watts.
The new interchangeable universal electrical plug allows replacement with other models without modifying electrical connections.
Simplified maintenance and long lifespan
DAB EVOSTA3 includes automatic and mechanical functions that minimize maintenance:
- Anti-blocking function, which prevents rotor stoppage after long periods of inactivity;
- Anti-scale cartridge, which keeps the motor shaft clean and efficient;
- Automatic degassing system, to eliminate air bubbles and optimize flow rate;
- Manual motor shaft release, useful in case of old systems or with impurities.
Robust construction and high-quality materials
Pump body: cast iron with cataphoresis treatment for corrosion resistance;
- Motor casing: stainless steel;
- Impeller: high-performance technopolymer;
- Motor shaft and bushings: self-lubricating ceramic by the pumped liquid;
- Rotor and stator sleeve: stainless steel;
- Thrust ring: graphite;
- Seals: EPDM;
- Vent plug: brass;
- Insulation shells: included as standard.
The result is a robust, quiet, and highly efficient circulator, with an extended lifespan even in complex systems.
Typical applications
The EVOSTA3 80/180 DN25 circulator is perfect for:
- heating systems with radiators or radiant panels;
- domestic air conditioning systems;
- heat pump systems;
- hot water recirculation systems.
Thanks to its features, it is suitable for both single-family homes and small-scale condominium systems.
| GENERAL DATA | |
|---|---|
| Model | DAB EVOSTA3 80/180 DN25 |
| Product code | 60231854 |
| Installation | Heating and air conditioning systems |
| Power supply type | Single-phase 1x230 V ~ 50/60 Hz |
| HYDRAULIC DATA | |
| Maximum flow rate | 4.2 m³/h |
| Maximum head | 8 m |
| Centre distance | 180 mm |
| Maximum operating pressure | 10 bar (1000 kPa) |
| Liquid temperature range | From -10 °C to +110 °C |
| Pumped liquid | Clean, free of solid substances and mineral oils, non-viscous, chemically neutral, similar to water (glycol max. 30%) |
| ELECTRICAL CHARACTERISTICS | |
| Maximum absorbed power | 55 W |
| Nominal current | 0.053 – 0.47 A |
| Motor | Synchronous with permanent magnet and inverter |
| Insulation class | F |
| Protection degree | IPX5 |
| CONSTRUCTION FEATURES | |
| Pump body | Cataphoresis-treated cast iron |
| Impeller | Technopolymer |
| Shaft and bushings | Ceramic |
| Rotor/stator sleeve | Stainless steel |
| Thrust ring | Graphite |
| Seals | EPDM |
| Vent plug | Brass |
| Insulation shells | Included |
| Pump connections | DN25 (G 1"1/2 threaded) |
| Installation | With horizontal motor axis |
| FUNCTIONS AND EQUIPMENT | |
| Display | Multifunction LCD with power, head, and flow display |
| Special functions | Anti-blocking, anti-limescale, automatic degassing |
| Remote control | Via D.Connect service (D.Connect Box required, not included) |
| STANDARDS AND COMPATIBILITY | |
| Electromagnetic compatibility | Compliant with EN 61800-3, category C2 |
| Electromagnetic emissions | Suitable for residential environment |
| Conducted emissions | Residential environment |
| Reference standards | EN 61800-3, EN 60335-1, EN 60335-2-51 |
Bella pompa silenziosa ed efficiente ed economica. Montaggio molto facile.
Consiglio questo prodotto.
Data sheet
- Type: Circulating pumps
- Version: Single
- Connections: 1-1/2 inches
- Axle base: 180mm
