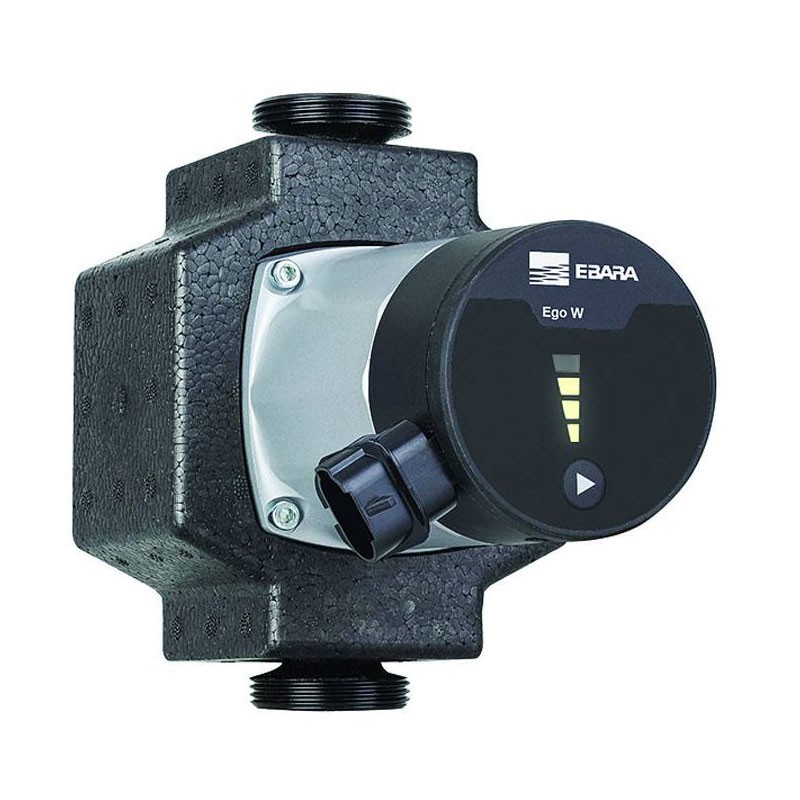

Ebara EGO W1 single electronic circulating pump 15/40-130 230W
EBA 1576000354
Ebara EGO W1 15/40-130 single threaded electronic circulating pump with wet rotor and permanent magnet motor:
- Minimum head 3.2 meters - 10 l/minute
- Maximum head 0.8 meters - 40 l/minute
- Nominal port diameter DN 15
- Maximum pressure dm 40
- Centre distance 130 mm
- Water outlet G 1/2
- Pipe connection G1
- Power Max 23W
- Power supply 230W
- Weight 2.5kW
- EEI (energy efficiency index) <0.20
Applications:
- Circulating pump for hot and cold water and are used in heating systems and air conditioning systems.
€131.49
Items Available: 5
: 3
The new Ego W1 and Ego W2 electronic circulating pumps with wet rotor and permanent-magnet motor, complete with insulating shell as standard, are suitable for circulating hot and cold water in heating systems, including underfloor heating and domestic or centralized air conditioning systems.
The new range is characterized by simplicity of use while maintaining all the features necessary to provide the appropriate service for each use.
Ego W1 is the simple and reliable circulator that meets all hot water circulation needs and offers among the operating modes:
- Proportional pressure
- Constant pressure
Features:
- Max operating pressure 10 bar
- Max ambient temperature 0 ÷ +40°C
- Max liquid temperature -10°C ÷ +65°C
- Insulation class F
- Degree of protection IP42
- Voltage Single phase 1~230V
Materials:
- Pump body Bronze
- Impeller Technopolymer
- Shaft Stainless steel AISI 420 (EN 1.4028)
- Separator sleeve Stainless steel AISI 316 (EN 1.4401)
There are no reviews
Data sheet
- Type: Circulating pumps
- Version: Single
- Model: Electronic
- Connections: 1/2 inches
- Axle base: 130mm
