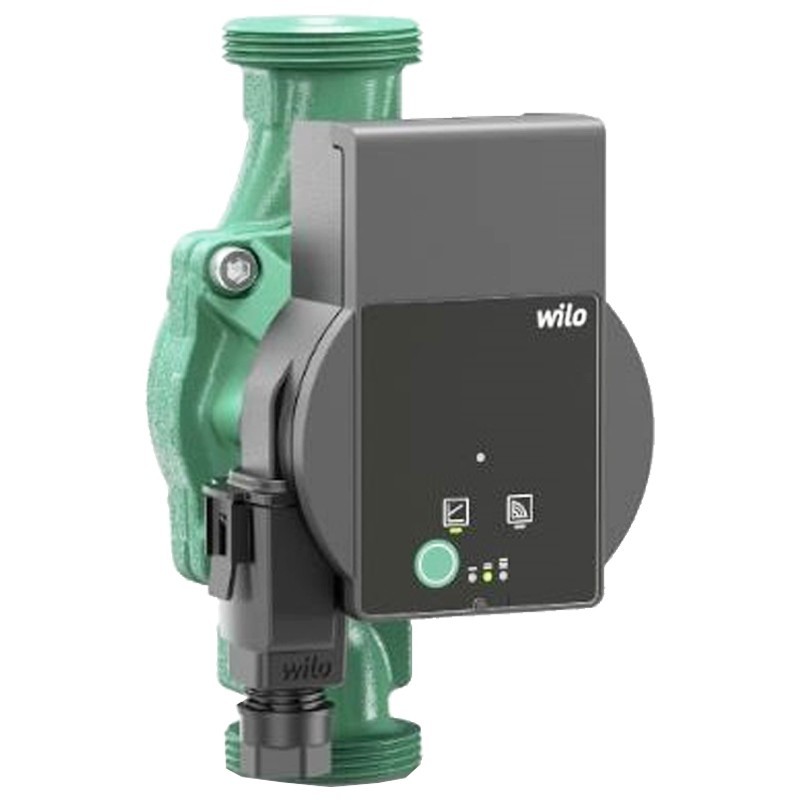

With its green button technology, simple user interface and standard construction, the high-efficiency Wilo-Atmos PICO pump is the ideal residential base product for single and semi-detached houses. Equipped with the most basic settings and functions, it can be put into operation very quickly and easily for heating, air conditioning and cooling applications.

ADVANTAGES

• Convenient to use thanks to green button technology with its familiar user interface and essential settings and functions
• Energy-efficient EC motor technology with six characteristic curves
• Compact design for quick and easy installation and replacement
• Reliable operation thanks to proven technology.

EQUIPMENT

• Variable differential pressure (3 predefined characteristic curves)
• Constant speed (3 speed stages)
• Setting of the operating mode
• Setting of the pump power (characteristic curve)
• Setting of the constant speed
• Automatic restart
• Fixed wrench connection on the pump casing
• Wilo-Connector
• Self-protected engine
• Particulate filter.

SUPPLY IN THE PACKAGE

• Wilo-Connector Pump
• Gaskets
• Assembly, operation and maintenance instructions.

ENGINE DATA

• Energy efficiency index IEE 0.23
• Mains power supply 1~230 V ±10%, 50/60 Hz
• Min. speed nmin 800 rpm
• Max. speed nmax 4800 rpm
• Power consumption (min) P1 min 4.0 W
• Power consumption P1 max 75.0 W
• Electromagnetic noise emission EN 61000-6-3
• Interference immunity EN 61000-6-2
• Electromagnetic compatibility EN 61800-3
• Cable gland 1 x PG11
• Insulation class F
• IPX2D degree.

MOUNTING DIMENSION

• Pipe connection on the pressure side G 1½
• Pipe connection on suction side G 1½
• Construction length l0 180 mm.

MATERIALS

• Cast iron pump body
• Impeller PP-GF40
• Stainless steel shaft
• Bearing material Coal impregnated with metal.

HYDRAULIC DATA

• Maximum operating pressure PN 10 bar
• Fluid temperature min. T min -10 °C
• Max. fluid temperature T max 95 °C
• Min. ambient temperature T min -10 °C
• Max. ambient temperature T max. 40 °C.
