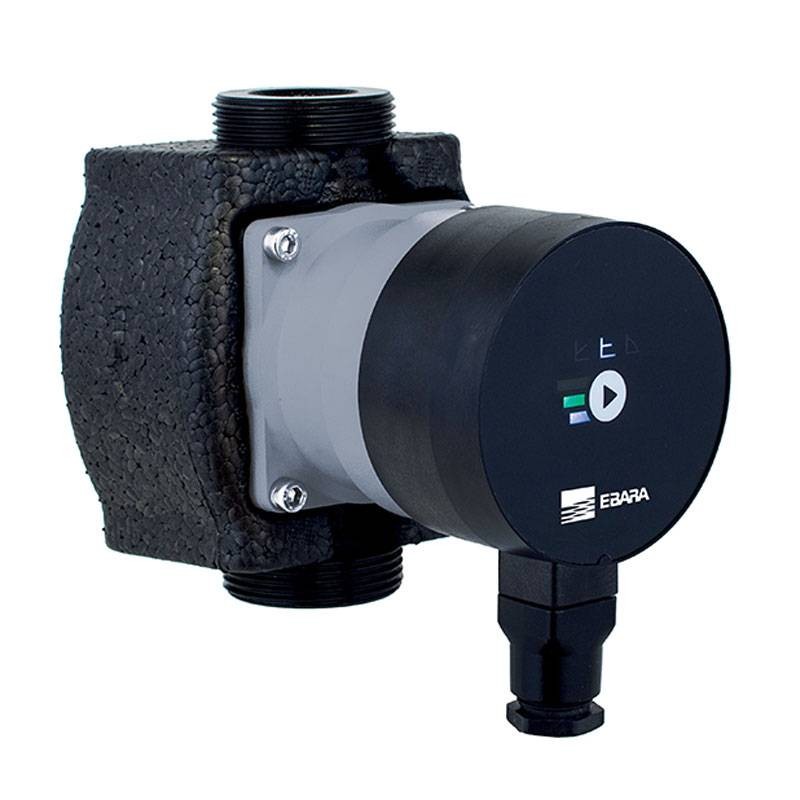

Ebara Ego 2 25/60-130 single electronic Circulating pump threaded 230V

Ebara Pompe
Ebara Pompe
EBA 1576000158

Ebara Ego 2 25/60-130 cast iron threaded single electronic circulating pump:



  • Minimum flow rate 5.4 meters - 10 l/minute
  • Maximum flow rate 1.8 meters - 50 l/minute
  • 230V power supply
  • Nominal port diameter DN 25
  • Maximum pressure dm 60
  • Centre distance 130 mm
  • Water outlet 1" Inch
  • Pipe connection G1-1/2
  • Power Max 35W
  • Weight 1.65 kg



Suitable for circulation of hot and cold water in general, air conditioning, central heating, domestic, solar systems, constant or variable flow where operating point optimization is required.

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Ebara Ego 2 25/60-130 single electronic Circulating pump threaded 230V
€111.59
€108.24
€108.24

Lowest price in 30 days:
€111.59
Save 3%
€108.24
Tax included
Calculate shipping cost
Offer expires in
Items Available: 2
Further availability of the manufacturer
€108.24

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Integrated electronically controlled circulating pump with a permanent magnet rotor. They differ from standard fixed-speed circulation pumps in that they can continuously adjust operation according to the actual demands of the system, and this provides significant savings in electrical energy, as well as ensuring a reduced noise level. Suitable for hot and cold water circulation in general, air conditioning systems, central heating systems, domestic, solar systems, constant or variable flow where operating point optimization is required.



Technical data:

  • Maximum pressure 10 bar
  • Liquid temperature -10 ÷ +110°C
  • Ambient temperature 0 ÷ +40°C
  • Max amount of glycol 30%
  • Minimum suction pressure 0.05 bar at 50°C - 0.4 bar at 80°C - 1.1 bar at 110°C
  • Insulation class F
  • Degree of protection IP44
  • Voltage Single-phase 1~230V



Materials:

  • Pump body Cast iron with cataphoresis coating
  • Impeller Technopolymer
  • Shaft Stainless steel AISI 420 (EN 1.4028)
  • Separator sleeve Stainless steel AISI 316 (EN 1.4401)



Heating systems:

  • Pumps are suitable for one-pipe, two-pipe, underfloor heating systems and mixing loops in large systems. All Ego circulators automatically and independently control the differential pressure, adjusting pump performance according to heating needs.



Air conditioning systems:

  • For use of Ego pumps on air conditioning systems, refer to the minimum allowable temperatures for each specific product family. Some models are suitable for circulating fluids with temperatures below 0 Degrees (and therefore particularly suitable for air conditioning and/or refrigeration systems).

There are no reviews

Data sheet

Type:
Circulating pumps
Version:
Single
Model:
Electronic
Connections:
1 inch
Axle base:
130mm
