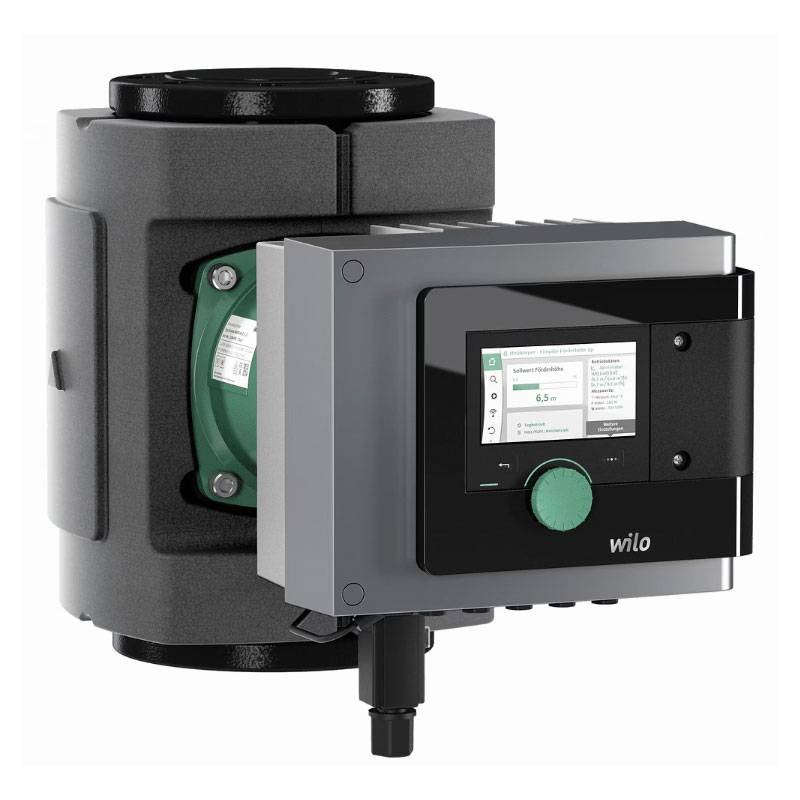

Wilo Stratos Maxo Wet rotor circulating pump 40/0.5-4 2164582

Wilo
Wilo
WIL 2164582 4048482699585

Wilo Stratos MAXO 40/0.5-4 (2164582) is a high-efficiency inline wet rotor pump with EC motor and advanced electronic control. Ideal for heating and cooling (including glycol), with EEI up to 0.17, 0.19, consumption from 7 to 130 W and smart management via display and Bluetooth.

  • Fluid: heating water, cold water, water-glycol mixtures

  • EEI: 0.17 0.19 (depending on type)

  • Suction/discharge DN: DN 40 / DN 40 (1 1/2 inch connection)

  • Construction length L0: (220 mm centre-to-centre)

  • Max pressure: PN 10 bar

  • Liquid T: -10/110 °C

  • Ambient T: -10/40 °C

  • Power supply: 1~230 V ±10% 50/60 Hz

  • Insulation class: F

  • Protection class: IPX4D

  • Absorbed power: 7130 W

  • Cable gland: 5 × M16×1.5

  • Materials: body grey cast iron; impeller PPS-GF40; shaft stainless steel; bearings graphite

  • Minimum NPSH (inlet height): 3 m @50°C; 10 m @95°C; 16 m @110°C

  • Interfaces/control: 4.3 inch display, Bluetooth, analog/digital I/O, alarm relay, CIF module slots, Wilo Net

  • Equipment: integrated temperature sensor, thermal insulation shell for heating applications.

  • bluetooth
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    Wilo Stratos Maxo Wet rotor circulating pump 40/0.5-4 2164582
    €1,022.37
    €1,022.37

    €1,022.37
    Tax included
    Calculate shipping cost
    Items Available: 1
    Further availability of the manufacturer
    €1,022.37

    Buy it within and receive it from Thursday, 5 February
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Wilo Stratos MAXO 40/0.5-4: the electronic pump for modern systems

    The Wilo Stratos MAXO 40/0.5-4 is an inline electronic circulation pump designed for advanced HVAC systems in significant residential, tertiary, and light industrial settings. The heart of the pump is an EC motor with control electronics that continuously adapts performance to the actual demand of the system, reducing energy waste and improving hydraulic stability. It is the ideal solution when reliability, sophisticated adjustments, and integration with building management systems (BMS) are needed.

    Real energy efficiency: Dynamic Adapt plus and low consumption

    The factory setting Wilo-Dynamic Adapt plus achieves a permanent performance adaptation without requiring manual setting of the delivery value. This allows, in many systems, up to 20% energy savings compared to dp-v control, thanks to the ability to follow the hydraulic network and operating conditions.


    The power consumption varies over a very wide range, from 7 W (min) to 130 W (max), useful for covering both partial loads and higher demands without oversizing consumption.

    Compatible with heat, cold, and glycol: one pump for multiple scenarios

    The MAXO is suitable for heating water, cold water, and water-glycol mixtures, making it perfect for systems with heat pumps, mixed circuits, and applications where the fluid temperature varies throughout the year. The liquid temperature range is from -10 °C to 110 °C, while the installation environment is expected between -10 °C and +40 °C.

    Advanced settings for complex systems

    In addition to Dynamic Adapt plus, many control logics are available, including:

    • Constant (dp-c) and variable (dp-v) differential pressure

    • Constant flow (Q-const) and flow limitation with Q-Limit

    • Constant temperature (T-const) and constant T (dT-const)

    • dp-c control at the most unfavorable point (remote point)

    • Constant speed (n-const) and customizable PID

    • Multi-Flow Adaptation to optimize the supply pump flow through communication between multiple pumps

    This flexibility is crucial in networks with two-way valves, zone circuits, collectors, and systems with variable loads, as it allows finding the most stable and efficient mode.

    Protections and functions that simplify maintenance

    In professional systems, continuity is everything. For this reason, the MAXO integrates:

    • No-Flow Stop: automatic shutdown when there is no demand

    • Dry-running recognition and shutdown/protection

    • Automatic rotor chamber aeration (de-aeration function)

    • Automatic unlocking and integral motor protection

    • Saving and restoring settings (up to 3 points)

    • Fault/warning messages with text and suggestions

    Additionally, there is a provision for switching between heating/cooling operation (automatic, external, or manual), useful for seasonal systems.

    Connectivity and BMS: ready for the smart building

    The described version supports a complete set of I/O and communications:

    • 2 configurable analog inputs (0-10V, 2-10V, 0-20mA, 4-20mA, Pt1000) with +24VDC power supply

    • 2 configurable digital inputs (Ext OFF, Min/Max, hot/cold changeover, lock, override, etc.)

    • 2 configurable alarm relays (fault/operation)

    • Optional CIF module slots (Modbus RTU/TCP, BACnet MS/TP/IP, LON, CANopen, etc.)

    • Wilo Net for communication between Wilo products (twin pump, Multi-Flow, gateway)

    Local control is convenient thanks to the 4.3-inch color graphic display and one-button control. For commissioning and diagnostics, the Bluetooth interface allows reading and setting via the Wilo-Assistant app, without additional accessories.


    HYDRAULIC DATA
    Maximum operating pressure (PN) 10 bar
    Maximum head (H max) 4.5 m
    Maximum flow rate (Q max) 16.0 m³/h
    Minimum inlet height at 50 °C 3 m
    Minimum inlet height at 95 °C
    Minimum inlet height at 110 °C 16 m
    Minimum liquid temperature -10 °C
    Maximum liquid temperature 110 °C
    Minimum ambient temperature -10 °C
    Maximum ambient temperature 40 °C
    MOTOR DATA
    Energy Efficiency Index (EEI) ≤ 0.19
    Power supply 1~230 V ±10%, 50/60 Hz
    Minimum nominal current 0.11 A
    Maximum nominal current 0.93 A
    Nominal power P2 99 W
    Minimum speed 750 rpm
    Maximum speed 2600 rpm
    Minimum absorbed power 7 W
    Maximum absorbed power 130 W
    Insulation class F
    Protection class IPX4D
    Cable gland 5 × M16×1.5
    Sound pressure level 27 dB
    EMC compatibility EN 61800-3 C1 (emissions) / C2 (immunity)

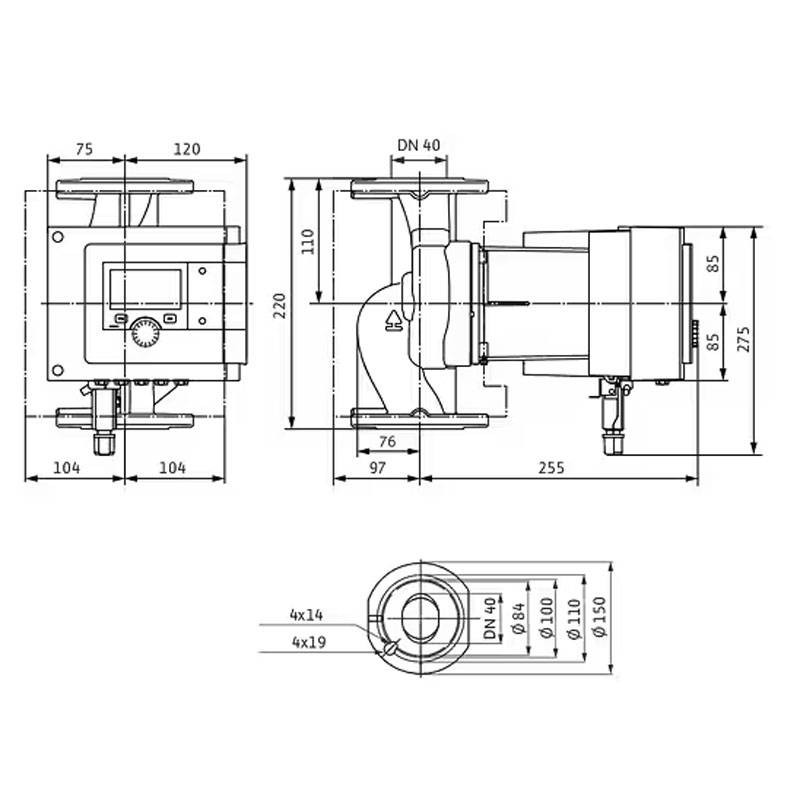

    MOUNTING DIMENSIONS
    Suction side connection DN 40 1 1/2 inch
    Discharge side connection DN 40 1 1/2 inch
    Construction length centre-to-centre 220 mm
    MATERIALS
    Pump body Grey cast iron
    Impeller PPS-GF40
    Shaft Stainless steel
    Bearings Graphite
    EQUIPMENT
    Markings CE, VDE, EAC
    Thermal insulation Accessory / Shell included
    Display 4.3" colour graphic
    Displays Head, flow rate, instantaneous and cumulative power
    Control type High-efficiency electronic pump
    Electrical connection Wilo-Connector
    Self-protected motor Yes
    Particulate filter Yes
    Keypad lock Yes
    SUPPLY
    Equipment Pump;
    Optimized Wilo-Connector;
    2 × cable gland M16×1.5;
    Washers for flange screws M12 and M16 (DN 32–65);
    2 × threaded gaskets;
    Thermal insulation shell;
    Installation, use and maintenance manual

    There are no reviews

    Data sheet

    Type:
    Circulating pumps
    Version:
    Single
    Model:
    Wet rotor
    Connections:
    1-1/2 inches
    Axle base:
    220mm
