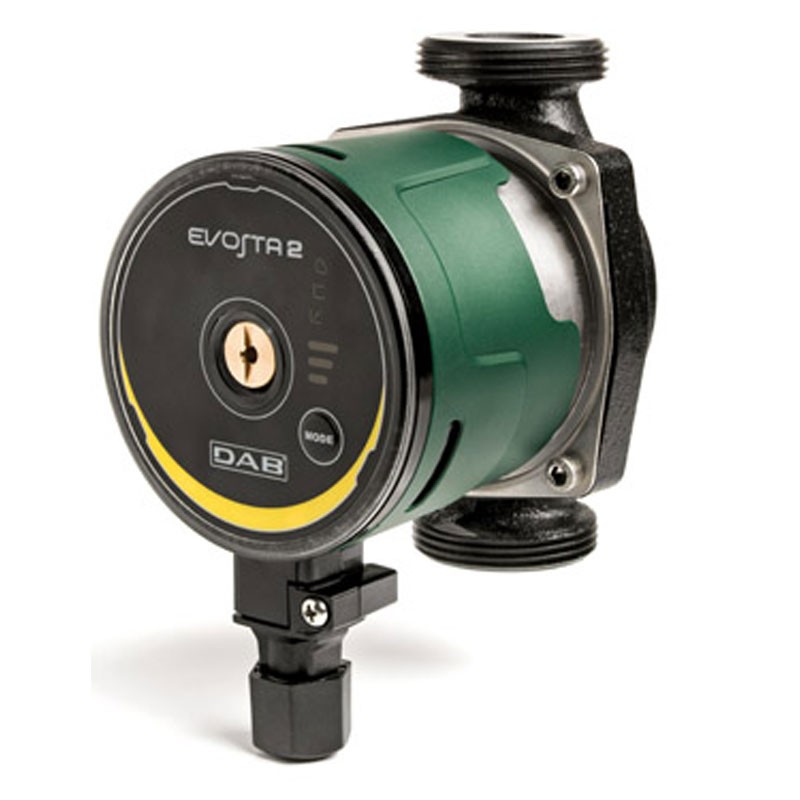

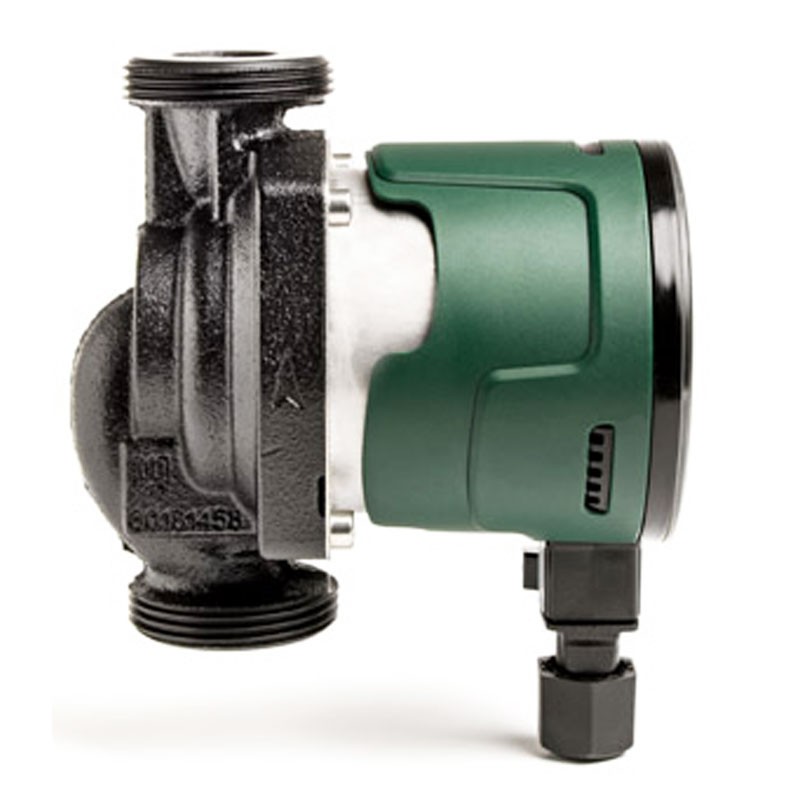

Electronic circulator DAB EVOSTA2 40-70/180 1 inch 180mm 60185492
DAB 60185492
8059893165589
Energy-saving DAB EVOSTA2 40-70/180 electronic circulator for circulating water in all types of domestic heating and air-conditioning systems:
- 180mm centerline
- Pump connections DN25 THREADED (G 1 inch)
- Power supply 50Hz 1x230V ~
- Max power 35W
- Current In 0.043 - 0.32A
€143.06
Items Available: 1
EVOSTA 2 is the new range of DAB circulators capable of offering the robustness of the mechanical circulator combined with the advantages of the electronic one. The permanent magnet synchronous motor, frequency converter, EEI ? 0.18 efficiency index combined with IPX5 protection rating and integrated breather cap make the EVOSTA 2 family one of the best-in-class products in terms of efficiency and reliability. The EVOSTA 2 range of circulators lends itself very well to the replacement of older three-speed circulators both because of its compact size and the completeness offered in terms of performance. It is also a product that can simplify the installer's work, having a single sequential setting button, and direct access to the motor shaft for eventual unlocking.
Features:
- 180mm wheelbase
- Pump connections DN25 THREADED ( G 1 inch )
- Power supply 50Hz 1x230 V ~
- Max power 35W
- In 0.043 - 0.32A
CONSTRUCTION FEATURES
Cast iron pump body with cataphoresis treatment and wet rotor motor. Steel motor case, technopolymer impeller. Ceramic motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Stainless steel rotor sleeve, stator sleeve and end flange. Graphite thrust ring. EPDM seal rings and brass air vent plug. Due to the internal motor protection, the pump requires no overload protection.
Produits conforme mais attention à l emballage
Ersatzpumpe für Kunden. 1:1 Tausch nach Ausfall.
Data sheet
- Type: Circulating pumps
- Version: Single
- Connections: 1 inch
- Axle base: 180mm
