DAB Evoplus D Circulator 60/250.40 1"1/2 250mm
DAB 60220936
8059893358813

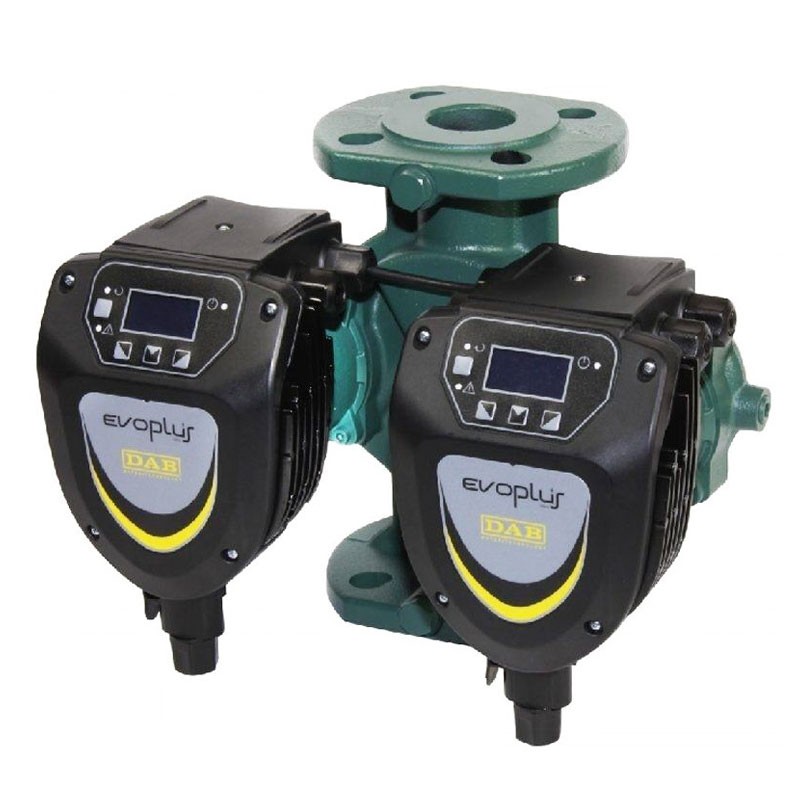

The DAB Evoplus D 60/250.40 electronic circulator with wet rotor, twin version with DN 40 flanged pump body, is designed to ensure high performance, quiet operation, and reduced consumption in heating and air conditioning systems.
-
Power supply: Single-phase
-
Pump connections: DN 40
-
Centre distance: 250 mm
-
Maximum flow rate: 7.2 m³/h
-
Maximum head: 6.1 m
-
Max operating pressure: 16 bar
-
Protection rating: IP44
-
Insulation class: F
-
Dimensions (LxWxH): 30.4 x 22 x 25 cm
-
Weight: 13.6 kg
€1,317.47
Items Available: 2
Circulator DAB Evoplus D: Energy efficiency and constant comfort
The DAB Evoplus D 60/250.40 circulator belongs to the EVOPLUS SMALL range, designed to ensure the correct amount of energy required by the system at all times. Thanks to intelligent electronic regulation, the pump automatically adjusts its performance to the actual operating conditions, ensuring constant thermal comfort and a significant reduction in operating costs. Its silent operation makes it ideal for residential environments as well.
Wide range of applications
This circulator is suitable for heating, ventilation, and air conditioning systems installed in residential and commercial buildings. It is particularly suitable for condominiums, apartment buildings, single-family homes, offices, schools, clinics, hospitals, and large real estate complexes. The load variations typical of modern systems, due to changes in external temperature and the intermittent presence of people, are managed efficiently and reliably.
Also ideal for air conditioning systems
Unlike traditional electronic pumps, EVOPLUS SMALL can also be used in air conditioning systems, where the temperature of the pumped fluid is lower than the ambient temperature. In these conditions, condensation may form on the external surface of the circulator, but the specific design allows for proper drainage without compromising the operation of the electronic and mechanical components.
Construction quality and long-term reliability
The pump is made with a cast iron hydraulic body and a synchronous motor with a wet rotor, with an aluminum motor casing. The technopolymer impeller, alumina shaft, and graphite bearings lubricated by the pumped liquid ensure long life and reduced maintenance. The integrated automatic check valve prevents water recirculation when the unit is stopped, while the blind flange supplied as standard facilitates maintenance operations.
| HYDRAULIC PERFORMANCE | |
|---|---|
| Operating range | Up to 7.2 m³/h with head up to 6.1 m |
| ELECTRICAL DATA | |
| Power supply voltage | Single-phase 220/240 V – 50/60 Hz |
| Maximum power | 100 W |
| LIQUID CHARACTERISTICS | |
| Type of pumped liquid | Clean liquid, free of solid substances and mineral oils, non-viscous, chemically neutral, with characteristics similar to water (glycol max 30%) |
| Liquid temperature | From -10 °C to +110 °C |
| OPERATING DATA | |
| Maximum operating pressure | 16 bar (1600 kPa) |
| Maximum ambient temperature | +40 °C |
| Quietness | Sound pressure ≤ 33 dB(A) |
| CONSTRUCTION CHARACTERISTICS | |
| Centre distance | 250 mm |
| Standard flanging | DN 40 |
| Counter flanges on request | DN 40 PN 10 |
| Installation | Horizontal motor axis |
| PROTECTION AND INSULATION | |
| Protection degree | IP44 |
| Insulation class | F |
| ELECTROMAGNETIC COMPATIBILITY | |
| EMC compatibility | Compliant with EN 61800-3, category C2 |
| Electromagnetic emissions | Residential environment |
| Conducted emissions | Residential environment |
| STANDARDS AND COMPLIANCE | |
| Reference standards | EN 61800-3 EN 60335-1 EN 60335-2-51 |
| OTHER CHARACTERISTICS | |
| Operating costs | Reduced |
| Available version | Twin version with DN 40 flanged pump body |
There are no reviews
Data sheet
- Type: Circulating pumps
- Version: Double
- Model: Electronic
- Connections: 1-1/2 inches
- Axle base: 250mm
