DAB EVOPLUS D 120/250.40 1"1/2 250mm electronic circulator 60151005
DAB 60151005
8059893011770

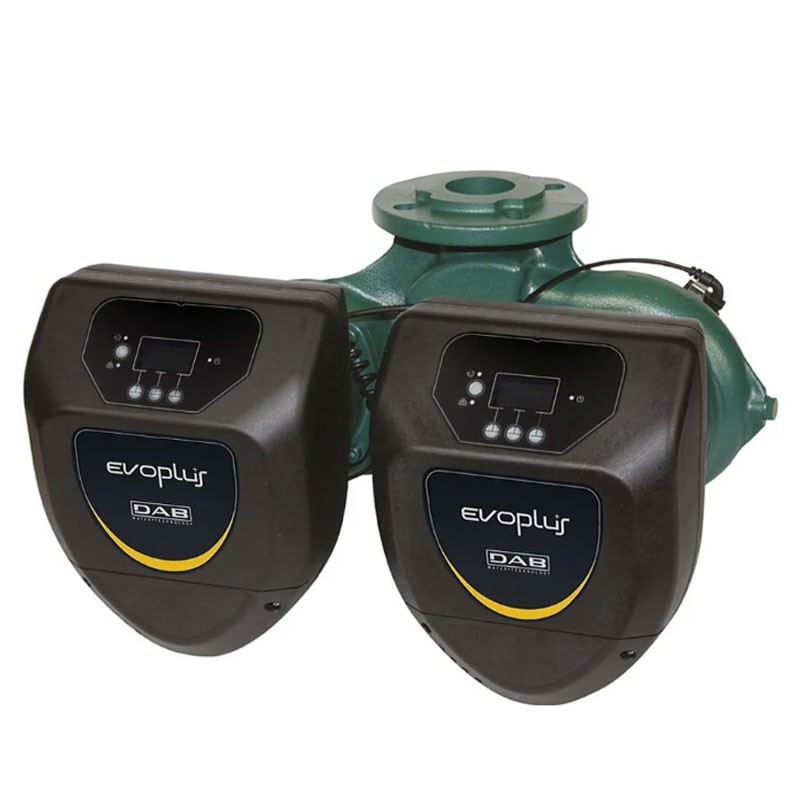

DAB EVOPLUS D 120/250.40 M twin flanged electronic circulator, can be used in heating, ventilation and air conditioning systems for residential and commercial buildings:
- Max. operating pressure (bar): 16
- Centre distance (mm): 250
- Pump connections: DN 40 (1"1/2)
- Maximum flow rate (m³/h): 18
- Maximum head (m): 12
- Power supply Single-phase
€2,205.10
Items Available: 6
: 1
EVOPLUS electronic circulation pumps can be used in heating, ventilation and air conditioning systems for residential and commercial buildings such as:
- Large residential buildings
- Condominiums and apartment buildings
- Dwellings
- Clinics and hospitals
- Schools
- Office buildings
- Real estate.
APPLICATIONS IN HEATING:
The heating required in different applications varies greatly during the day/night due to the outside temperature and the more or less constant presence of people inside the premises. To the above must be added the different needs of various rooms and the eventual opening or closing of various branches in complex systems. Electronically regulated wet rotor pumps ensure at all times, almost in all correctly sized systems, a sufficient amount of energy and at the same time greater quietness/comfort and a significant reduction in operating costs.
APPLICATIONS IN AIR CONDITIONING:
- Unlike conventional electronic pumps, EVOPLUS electronic circulation pumps can also be used in air conditioning systems where the temperature of the pumped liquid is lower than the ambient temperature. Under these conditions on the external surface of the circulator condensation occurs, which does not affect the proper functioning of both the electronic and mechanical parts. In fact, the particular construction is designed and sized to allow condensate drainage without damage to the construction components.
CONSTRUCTION FEATURES:
- One-piece circulation pump formed by the cast iron hydraulic part and wet rotor synchronous electric motor. Aluminum motor case. Spiral pump body with high hydraulic efficiency due to particularly accurate design and polished internal surfaces. In-line, flanged suction and discharge ports. For the twin version, insulation must be carried out by the installer. In any case, special care must be taken not to obstruct the condensate drain labyrinths so as not to impair the operation of the circulator.
Features:
- Operating range: up to 18 m³/h with head up to 12 meters
- Voltage: single-phase 220/240 V - 50/60 Hz
- Maximum power: 465 W
- Pumped liquid: clean, free of solids and mineral oils, non-viscous, chemically neutral, close to the characteristics of water (glycol max. 30%)
- Liquid temperature range: -10°C to +110° C
- Maximum operating pressure: 16 bar (1600 kPa)
- Maximum ambient temperature: +40°C
- Center distance: 250 mm
- Standard flange: DN 40
- Degree of protection: IP44
- Insulation class: F
- Installation with horizontal motor axis
- Electromagnetic compatibility: complies with EN 61800-3, category C2
- Electromagnetic emissions: residential environment
- Conducted emissions: residential environment
- Counterflanges on request:
- DN 40 PN 10 - Sound pressure ≤ 45 dB(A)
- Low operating costs
- Complies with European standard EN 61800-3 - EN 60335-1 - EN 60335-2-51
- Twin version with flanged pump body DN 40
- Dimensions 39.5 cm length, 48 cm width, 27.4 cm height
- Weight kg 38.8
There are no reviews
Data sheet
- Type: Circulating pumps
- Version: Double
- Model: Electronic
- Connections: 1-1/2 inches
- Axle base: 250mm
