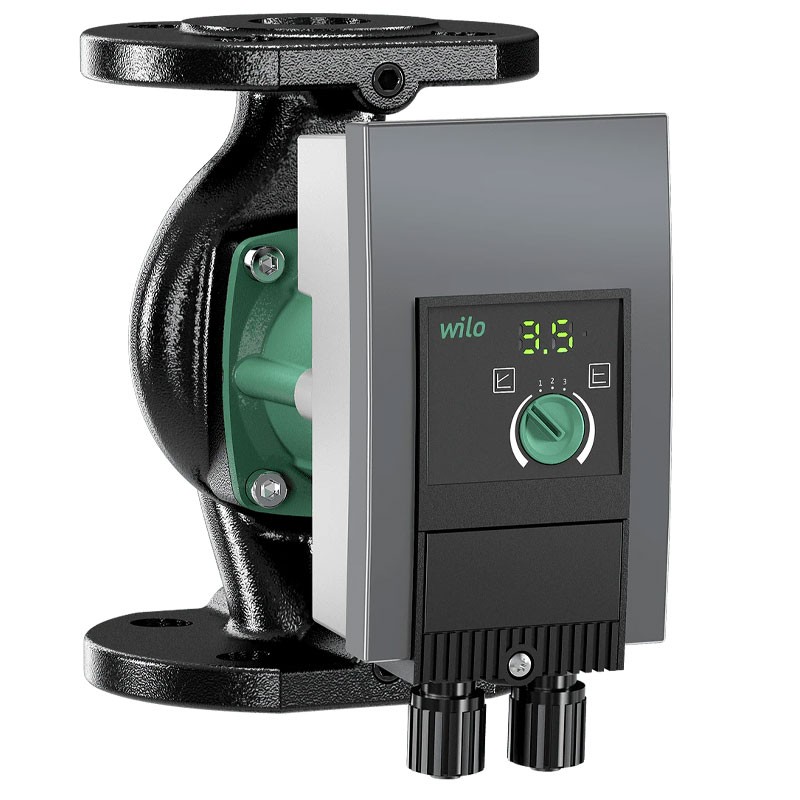

Circulator Wilo REPLACEMENT MAXO 40/0,5-12 with rotator wet 2120647
WIL 2120647
4048482235943
Circulation pump Wilo REPLACEMENT MAXO 40/0,5-12 with wet rotor synchronous motor according to ECM-technology and adjustment of the integrated power for the modulating control of the differential pressure. Can be used in all applications of heating, ventilation and air-conditioning.
€1,361.52
Items Available: 4
Series with:
- Ways of adjustment preset for an optimal adaptation of the load: ?p-c (differential pressure constant), ?p-v (differential pressure variable)
- 3 stages of speed (n = constant)
- LED indicator for setting the value of the delivery and the display of error messages
- Electrical connection with the connector of the Wilo
- error signal and a contact for reporting cumulative of the block.
Features:
- Nominal diameter connector 40
- The field of the nominal head of 0.5-12m
- Maximum operating pressure PN 10 bar
- Energy efficiency index EEI 0,20
- Emission electromagnetic interference EN 61800-3;2004+A1;2012 / residential environment (C1)
- Immunity to interference EN 61800-3;2004+A1;2012 / industrial environment (C2)
- Mains power supply 1~230 V, 50/60 Hz
- Input current P1 max. P1 max 550.0 W
- Speed min. nmin 950 rpm
- Speed max. nmax 4600 rpm
- Motor protection IPX4D
- Cable entry 2 x M20x1.5
- Pump body EN-GJL-250
- Impeller PPS-GF40
- Shaft 1.4028
- Material bearing Graphite
- Fitting for the pipes on the suction side DN 40
- Fitting for the pipes on the pressure side DN 40
- Length constructive l0 250mm.
There are no reviews
Data sheet
- Type: Circulating pumps
- Version: Single
- Model: Wet rotor
- Connections: 1-1/2 inches
- Axle base: 250mm
