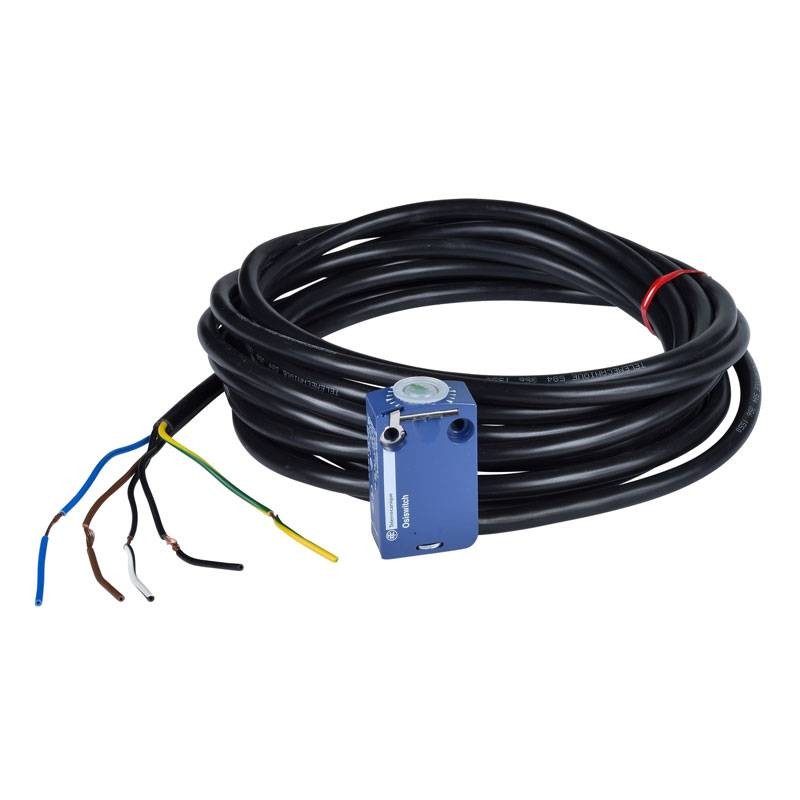

Schneider ZCMD limit switch body 1 NC + 1 NO cable 5 meters ZCMD25L5
TSI ZCMD25L5
3389110299366
Schneider ZCMD 1 NC + 1 NO limit switch body with the following characteristics:
- Number of poles: 2
- Contact composition and type: 1 NC + 1 NO
- Contact operation: Slow-opening, break-before-make (no source overlap)
- Cable length: 5 meters
- Contact insulation: Zb
- Rated insulation voltage: 300V (pollution degree 3) - 400V (pollution degree 3)
- Resistance between terminals: 25 mOhm
- Rated impulse withstand voltage: 4 kV
Schneider ZCMD limit switch body 1 NC + 1 NO cable 5 meters ZCMD25L5
€58.36
€58.36
Tax included
Tax included
Pay in installments with Klarna
Items Available: 3
Further Schneider circuit breaker combinations:
Schneider Electric's OsiSense body/contacts assembly with connector has standard contacts and a Zamak body.
It has 1 NO contact + 1 NC contact (slow opening) and is pre-wired (5 m cable).
Features:
- Contact material: Silver plated contacts
- Min. actuation speed: 6 m/min
- Short-circuit protection: 6 A fuse cartridge, type gG
- Storage temperature: -4070°C
- Dimensions: height 50 mm width 30 mm depth 16 mm
- Weight: 65 grams
Electrical life:
- 5000000 cycles, DC-13 120 V, 3 W, operating range <60 cycles/m, load factor: 0.5 in accordance with IEC 60947-5-1 appendix C
- 5000000 cycles, DC-13 24 V, 4 W, operating range <60 cycles/m, load factor: 0.5 complies with IEC 60947-5-1 appendix C
- 5000000 cycles, DC-13 48 V, 3 W, operating range <60 cycles/m, load factor: 0.5 complies with IEC 60947-5-1 appendix C
There are no reviews
Data sheet
- Type:
- Limit switch
- Poles:
- 2P
- Cable Length:
- 5 Meters
