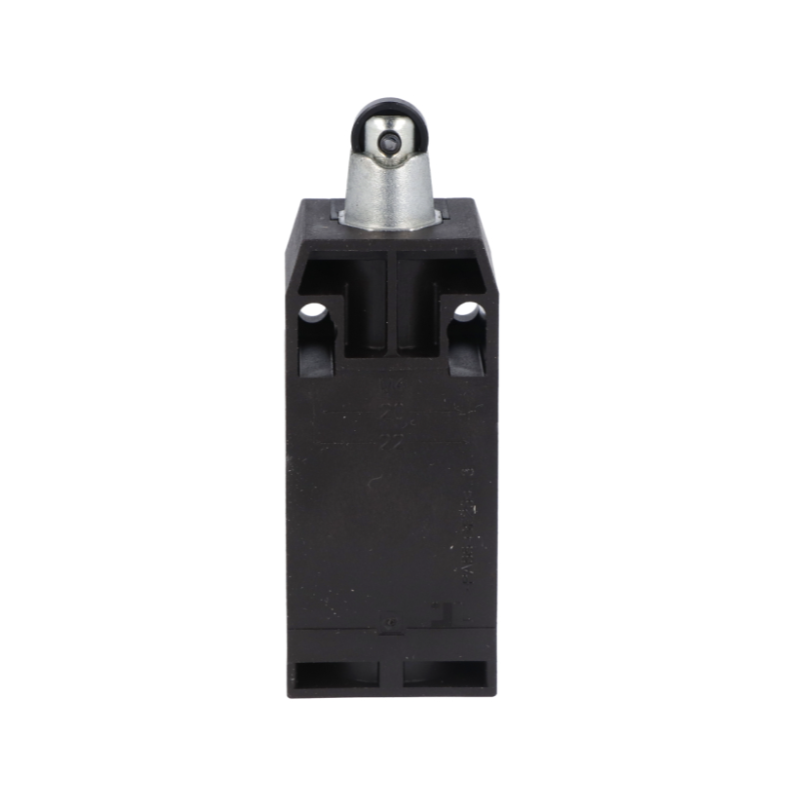

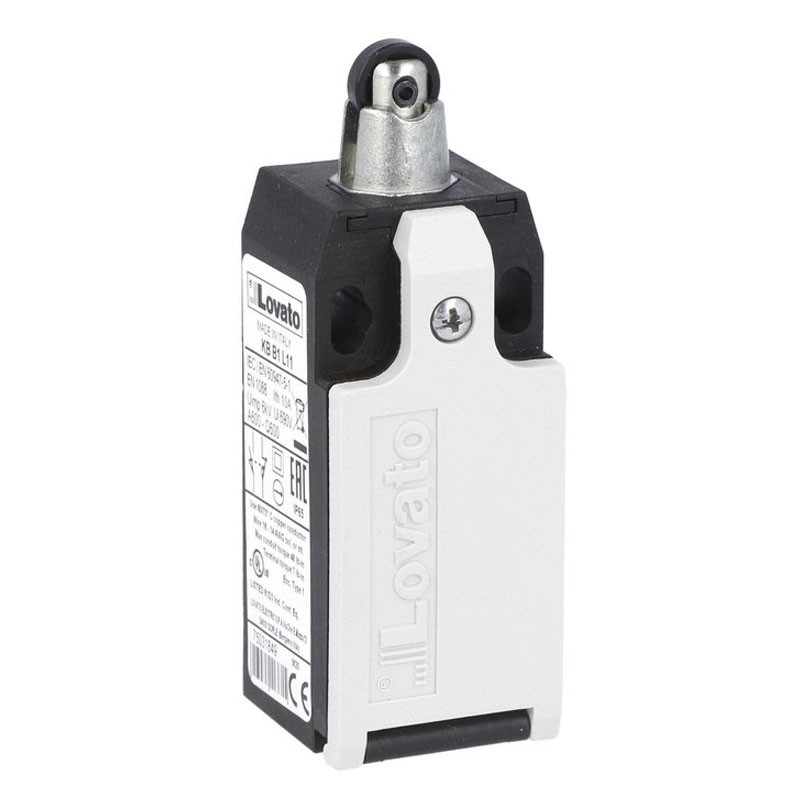

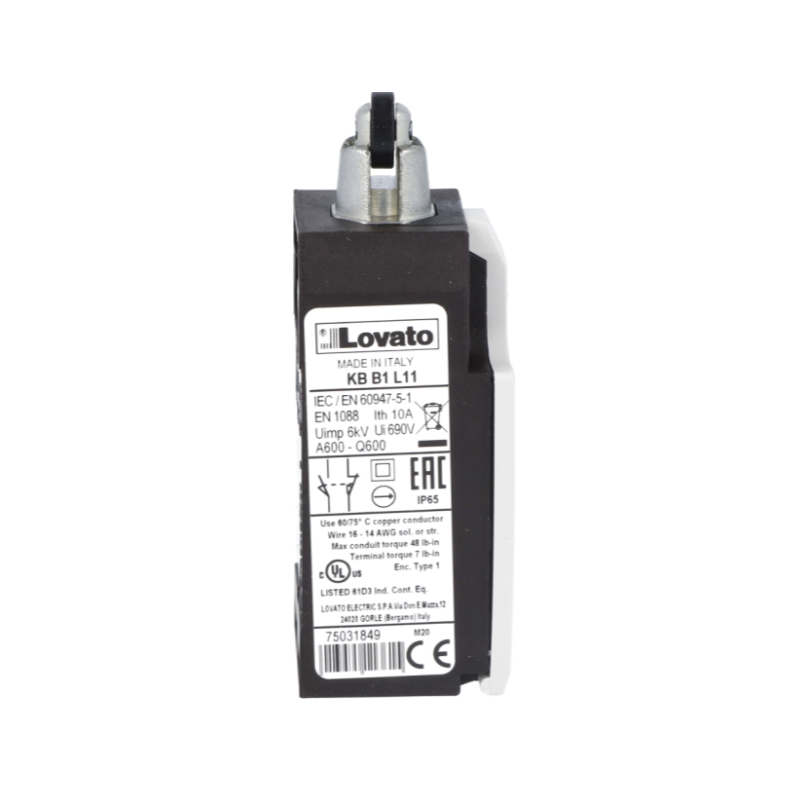

Lovato K-series rod limit switch with roller contacts 1NA+1NC KBB1S11

Lovato
Lovato
LOV KBB1S11 8013975113660

Lovato K series limit switch, rod with roller, 1 input from the bottom for cable, with the following characteristics:


  • Contact type: 1NO+1NC (snap action)
  • Conventional thermal current UN 10A
  • IEC/EN 60947-5-1 designation: A600 Q300
  • Rated insulation voltage Ui :690V
  • Rated impulse withstand voltage Uimp: kV 6
  • Insulation class II
  • Fuse short-circuit protection: class A, fast fuse 10 gG/SC
  • Switching speed: min SM 0.5, max SM 1.5
  • IEC Conventional free air thermal current: Ith 10A
  • Resistance per pole (average value): m? <10
  • Plastic housing and caster
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato K-series rod limit switch with roller contacts 1NA+1NC KBB1S11
€15.55
€15.55

€15.55
Tax included
Calculate shipping cost
Items Available: 11
Further availability of the manufacturer
€15.55

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Lovato series
  • Actuator head fastening: bayonet type
  • Operating torque: Ncm 3 - ozin 4.25
  • Actuating force: N5 - ib 1.1
  • Wiring connection: screw with self-lifting wire clamp
  • Cable entry type: M20 on the bottom
  • Mechanical durability: cycles <10000000
  • Mechanical operation: cycles/h 3600
  • Operating temperature: -25/+70 °C
  • Storage temperature: -40/+70°C
  • Degree of protection: IP20 terminals - IP65 housing
  • Pollution degree: 3

There are no reviews

Data sheet

Type:
Limit switch
