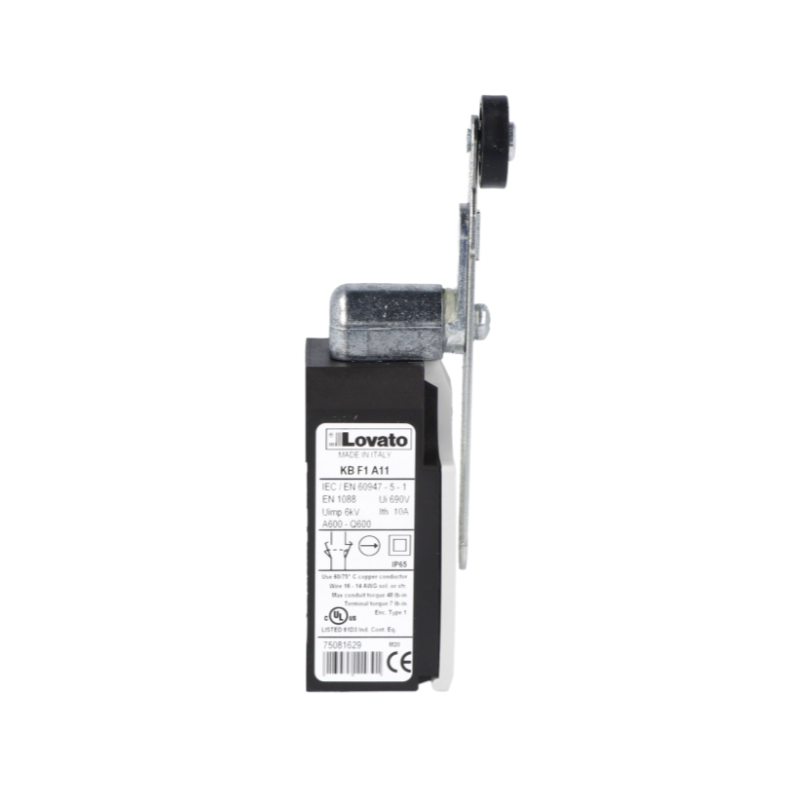

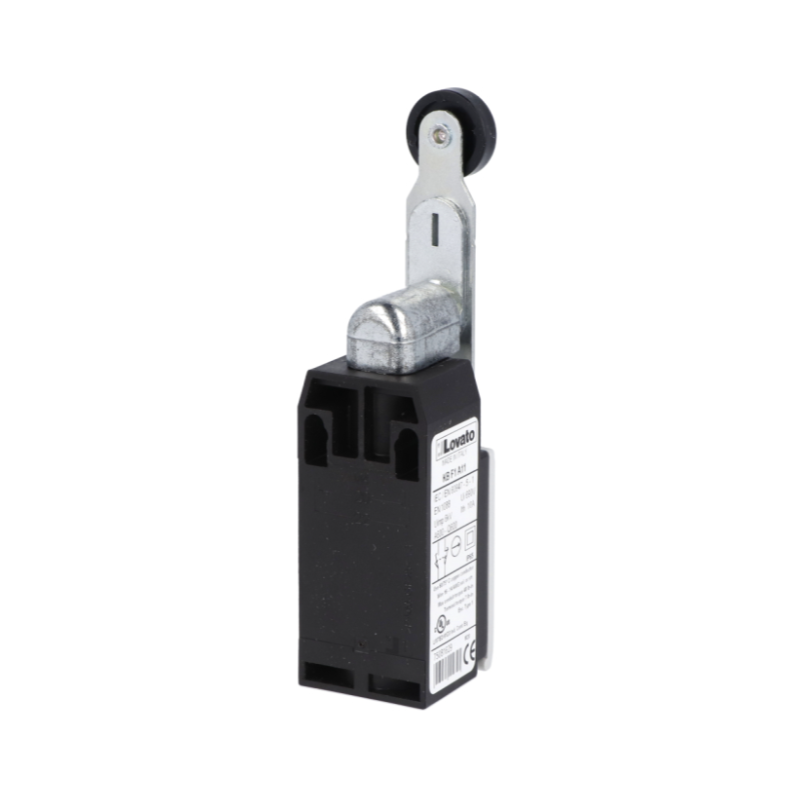

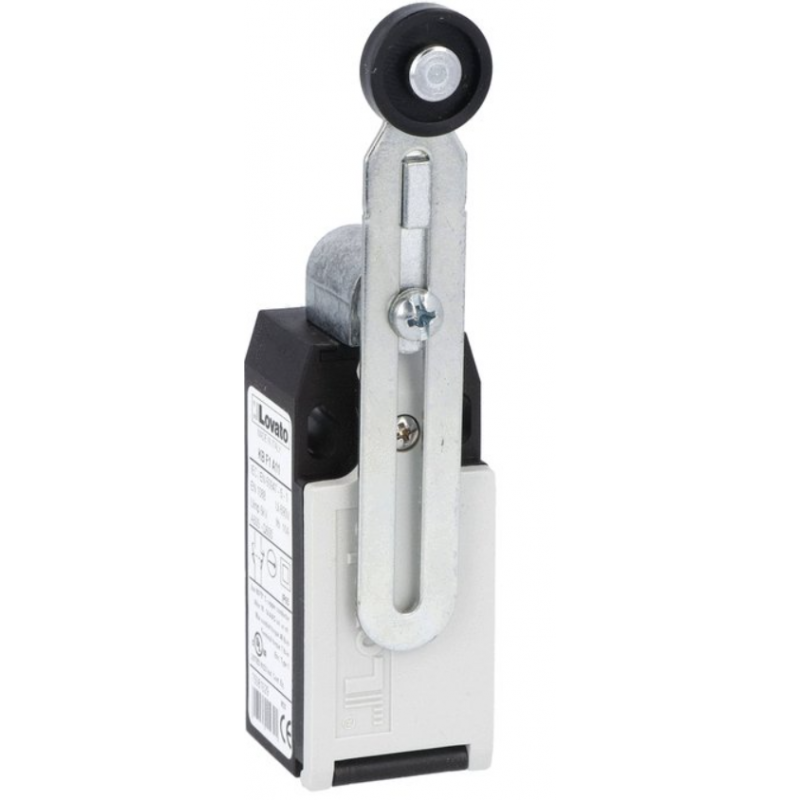

Lovato K series adjustable lever limit switch with roller 1NA+1NC KBF1S11
LOV KBF1S11
8013975114476
Lovato K-series limit switch, with the following features:
- Contact type: 1NO+1NC Snap action
- Ith UN thermal current: 10
- IEC/EN 60947-5-1 designation : A600 Q300
- Rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp kV 6
- Insulation class II
- Short-circuit protection with fuse Class A: RAPID FUSE 10 gG/SC
- Material: self-extinguishing thermoplastic polymer housing with double insulation, roller: plastic
- Switching speed: min SM 0.5, max SM 1.5
€17.40
Items Available: 36
: 17
Other technical features:
- Lovato series
- IEC Conventional free air thermal current Ith UN 10
- Resistance per pole (average value): mΩ <10
- Operating head fixing: bayonet locking insert
- Operating torque: Ncm 3, ozin 4.25
- Cable connection: self-locking screw terminal
- Cable entry: M20 bottom
- Mechanical life cycles <10000000
- Mechanical operation cycles/h 3600
- Operating temperature: -25/+70C°
- Storage temperature: min -40/+70C°
- IP grade: terminals IP20, body housing IP65
- Pollution degree 3
Tightening torque (max):
- Switch fixing: Nm 2.5 - lbin 22.1
- Contact terminals: Nm 0.8 - lbin 7
- Body cover screw fastening: Nm 0.8 - lbin 7
Conductor cross section:
- AWG/Kcmil: min 16 - max 14
- IEC: min mm² 1 or 2 - max mm² 2.5
Data sheet
- Type: Limit switch
