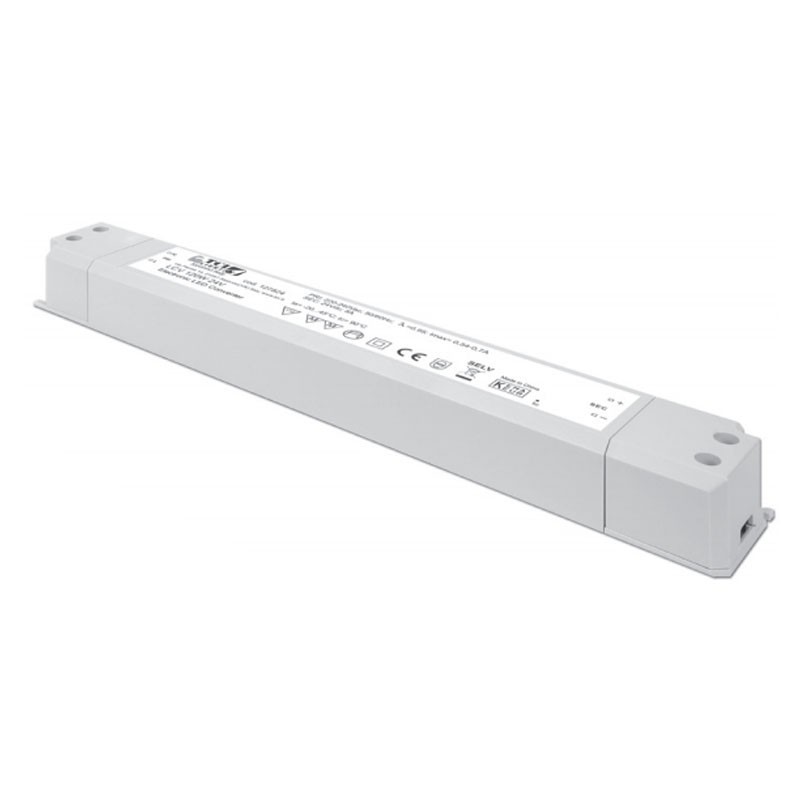

TCI electronic power supply unit for LED 120W 24VDC IP20 127824
TCI 127824
8010703395510
TCI electronic power supply for LED 120W 24VDC, direct current, IP20 degree of protection.
€23.33
Items Available: 51
: 18
Features:
- Output power 75W
- V out 24 cost. DC
- I out DC 5 A max
- Ta -20...+45 Degrees
- Tc 90 Degrees
- Frequency 50/60 Hz
- Nominal voltage 220 ÷ 240 V
- IP20 stand-alone power supply, for indoor use
- Protected in class II against electric shock for direct and indirect contacts
- Opposite inlet and outlet terminals
- Single terminal on primary and secondary (cable cross section up to 2.5 mmq / AWG13)
- Cable clamps on primary and secondary cables
- Fixing of the feeder by means of screw slots
- Consumption without load: 0.5W
- Protections: thermal and short circuit; against mains extra-voltage; against overloads; input protection fuse
- Dimensions: 300x40x30 mm
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 101 to 200W
- Output voltage: 24 Vdc
- Input voltage: 220/240V
