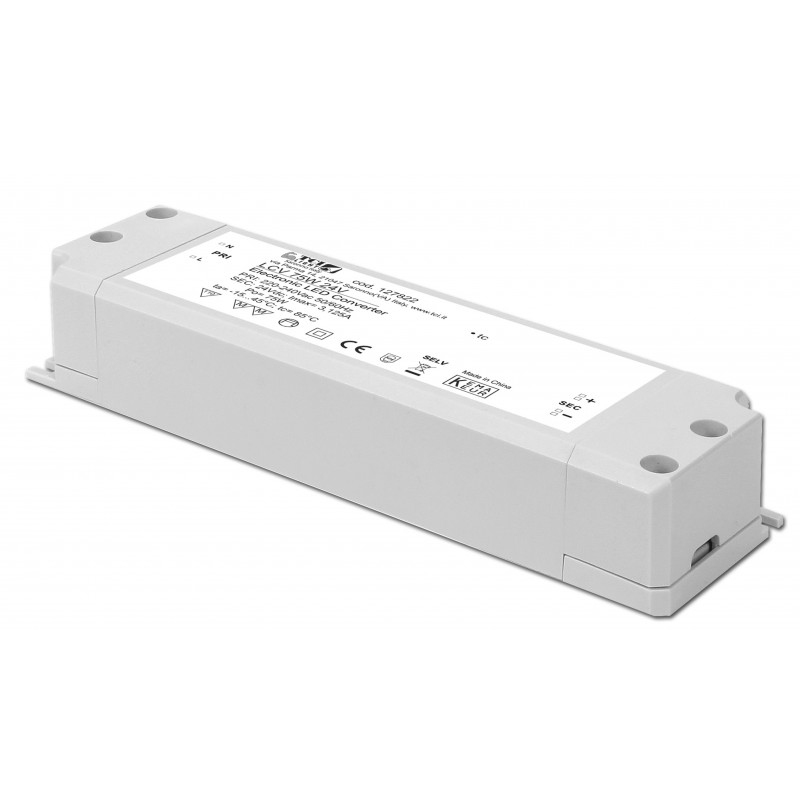

TCI electronic power supply for LED 75W 24VDC IP20 127822
TCI 127822
8010703395497
TCI electronic power supply for 75W 24VDC LEDs, direct current, IP20 degree of protection.
€16.62
Items Available: 93
: 11
Features:
- Output power 75W
- V out 24 cost. DC
- I out DC 3.125 A max
- Ta -15...+45 Degrees
- Tc 85 Degrees
- Frequency 50/60 Hz
- Nominal voltage 220 ÷ 240 V
- IP20 stand-alone power supply, for indoor use
- Protected in class II against electric shock for direct and indirect contacts
- Opposite inlet and outlet terminals
- Single terminal on primary and secondary (cable cross section up to 2.5 mmq / AWG13)
- Cable clamps on primary and secondary cables
- Fixing of the feeder by means of screw slots
- Consumption without load: 0.5W
- Protections: thermal and short circuit; against mains extra-voltage; against overloads; input protection fuse
- Dimensions: 180x52x30 mm
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: 51 to 100W
- Output voltage: 24 Vdc
- Input voltage: 220/240V
