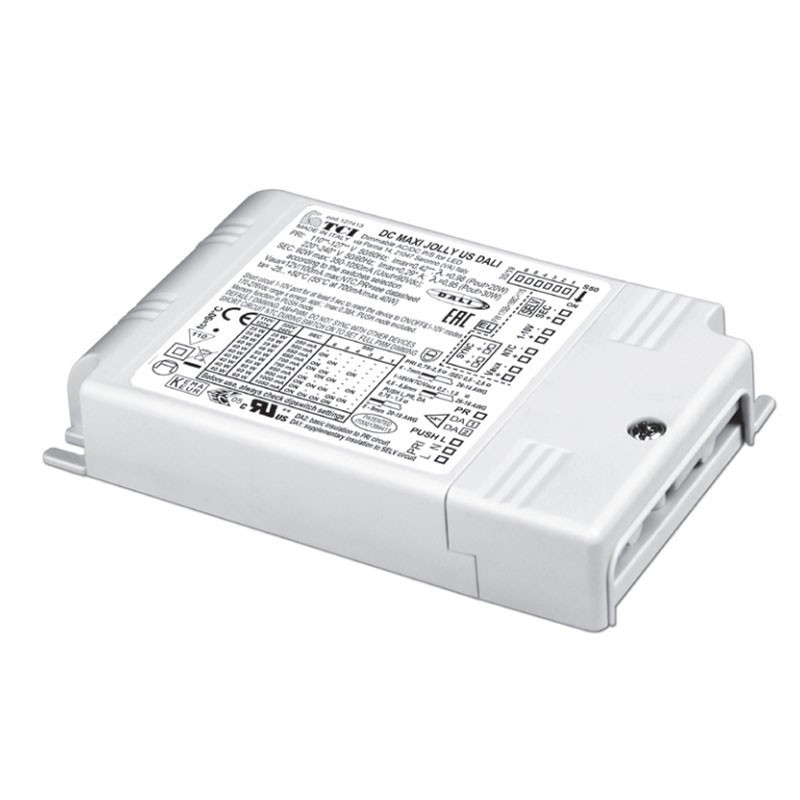

TCI DC MAXI JOLLY US DALI power supply unit for LED lamps 127413
TCI 127413
TCI DC MAXI JOLLY US DALI dimmable ballast for LED lamps.
€53.38
Items Available: 18
: 17
Features:
- AM/PWM dimming
- Output power 25W
- V out 274DC
- I out 350 mA cost DC
- U out 90V
- ta -25+50 Degrees
- Nominal voltage 110 ÷ 127 V / 220 ÷ 240 V
- Frequency 50-60 Hz
- AC Operation range Operating voltage AC 99 ÷ 264 V
- Multi-power power supply equipped with dip-switch for output current selection
- IP20 stand-alone power supply, for indoor use
- Protected in class II against electric shock for direct and indirect contacts
- Can be used for luminaires in protection class I and II
- Active PFC
- Analog input (NTC) for thermal sensor connection
- Auxiliary output 12 V max. 100 mA
- Controlled current ±5 % including temperature variations
- Input and output terminals on the same side (cable cross section up to 2.5 mm2 / AWG13)
- Cable clamp on primary and secondary for cable diameter: min. 3 mm - max. 8 mm
- Protection: - thermal and short circuit; - against mains extra-voltage; - against overloads
- Thermal protection = C.5.a.
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 21 to 30W
- Output voltage: 74 Vdc
- Input voltage: 110/240V
