Ledco LED Power Supply 200W 24VDC TR24200
2AV TR24200
Power supply for Ledco LEDs, with the following characteristics:
- Voltage: 110/240V AC 24 Vdc
- DC input current: 40A/230V AC
- Frequency: 50/60 Hz
- Output power: 200W / 8.34A
- Power on time: < 1S(input 230V, Io=100%)
- Overload/overpower protection: 105-150%
- Insulation Class: 1
- Degree of protection: IP20
- Working temperature: -20°/+60°C / 20% ~ 90%RH (no frost)
- Storage temperature: -40/+85°C 10% ~ 95%RH (no frost)

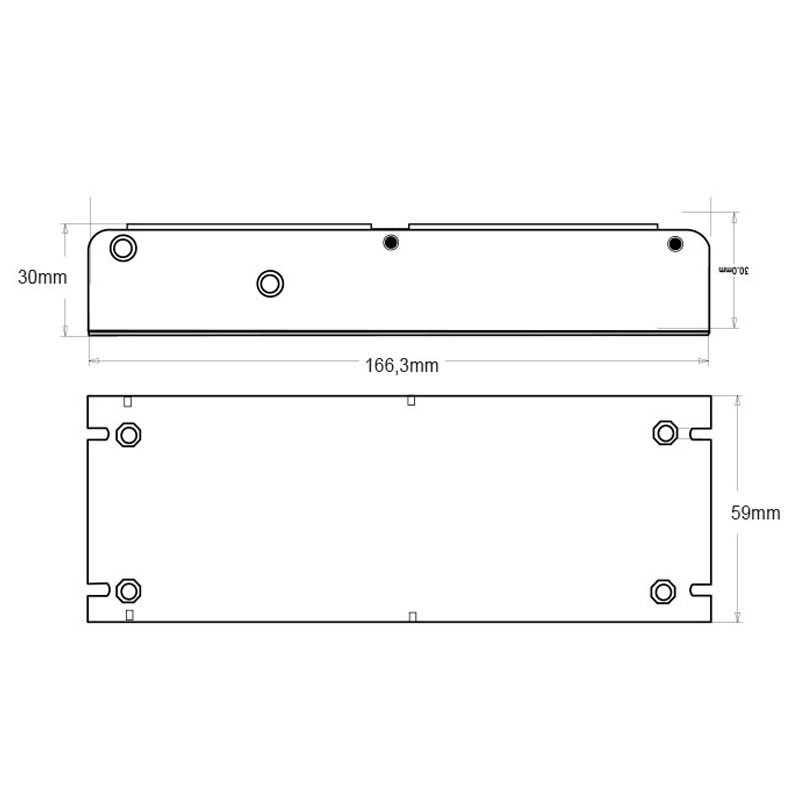

- Dimensions: 167 x 59 x h 31 mm
- Weight: 328 grams approx.
- Glow wire: 650°C
- Cooling: natural ventilation
- Intended use: indoor
- Installation: wall/plafone fixing
- Body/structure: metal
- Fixing: with screws not included
€35.56
Items Available: 255
: 69
The power supply has overload and short-circuit protection and is equipped with a voltage regulator.

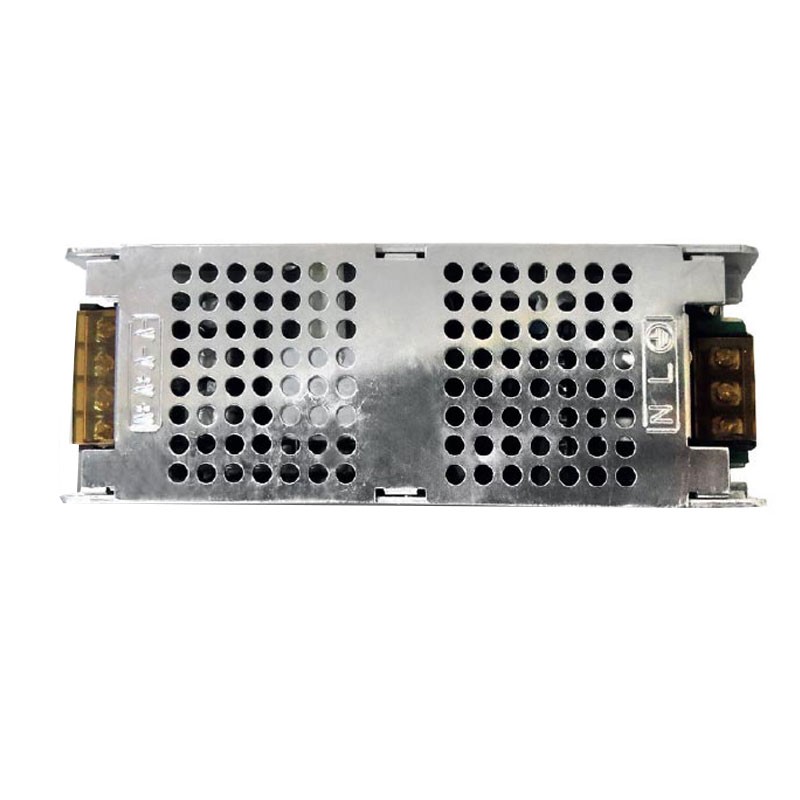

It can be easily connected to Led strips thanks to the front screw terminals, and also can be used to power other electronic devices such as routers, hubs, security cameras, audio-video systems, etc.
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 101 to 200W
- Output voltage: 24 Vdc
- Input voltage: 110/240V
