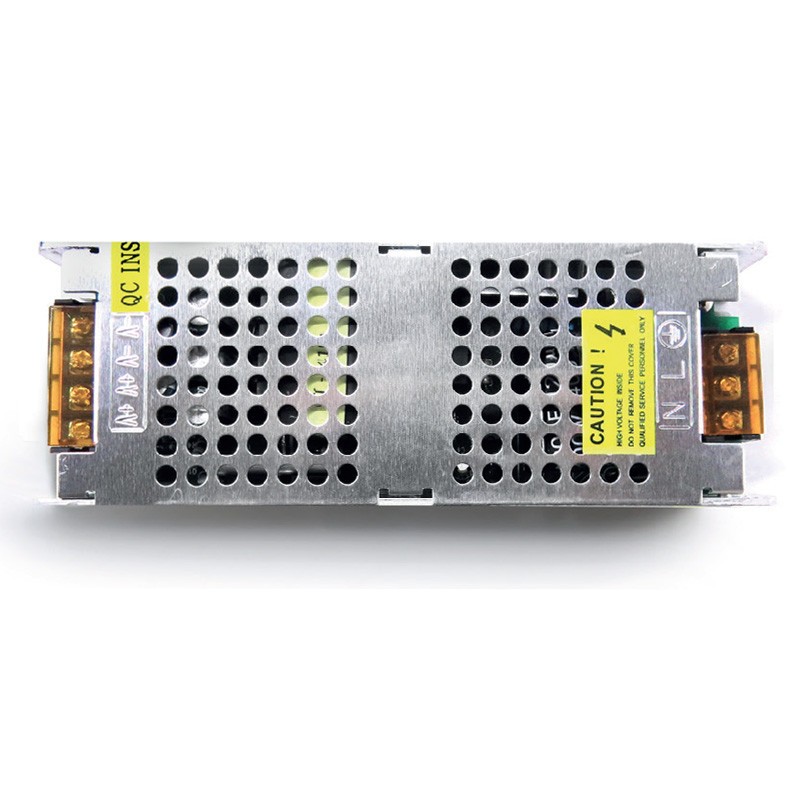

Ledco Led Power Supply 150W 24V IP20 TR24150
2AV TR24150
Ledco LED transformer, with the following characteristics:
- Voltage: 110-240VAC / 24Vdc
- DC input current40A/230V AC
- Frequency: 50/60 Hz
- Power output: 150W - 6.25A
- Power on time< 1S(input 230V, Io=100%)
- Overload/overpower protection: 105 - 150 %
- Degree of protection IP20
- Insulation class: Class 1
€31.81
Items Available: 363
: 57
Other technical features:
- Safety Standards:GB4943,UL60950-1,EN60950-1
- Working temperature:-20°/+60°C/ 20% ~ 90%RH (no frost)
- Storage temperature:-40°/85°C/ 10% ~ 95%RH (no frost)
- Weight:0.321 kg
- Dimensions:167 x 59 x 31 mm
- Cooling:natural ventilation
- Glow wire:650 C°
- Intended use: for indoor use
- Installation: wall/ceiling mount
- Body/structure: metal
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 101 to 200W
- Output voltage: 24 Vdc
- Input voltage: 110/240V
