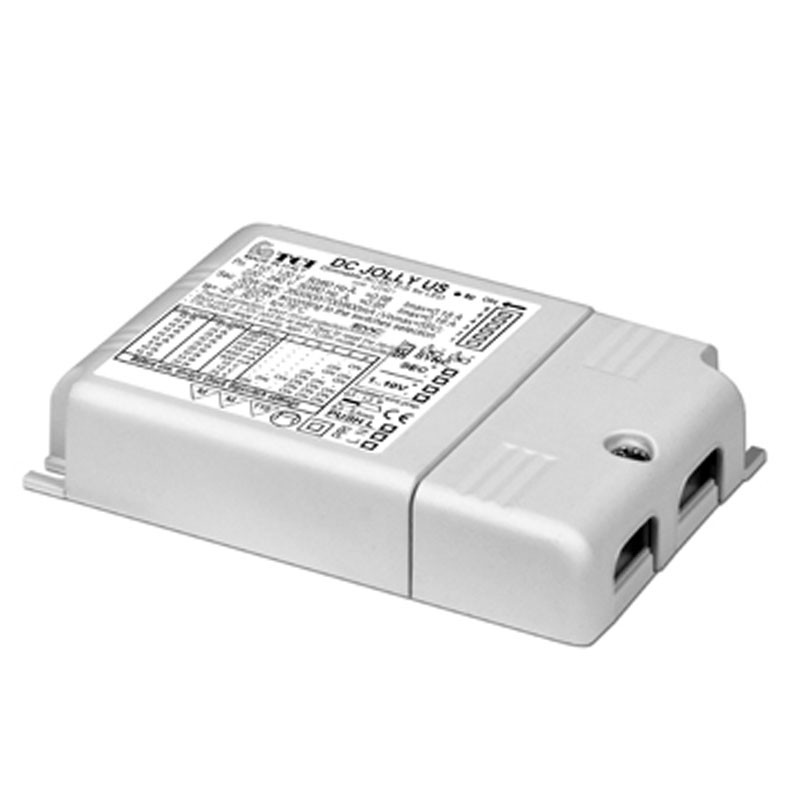

TCI JOLLY US electronic power supply for LED 250/900mA dimmable 125421
TCI 125421
8000031286338
TCI DC JOLLY US electronic adjustable multipower power supply with DIP-SWITCH, with the following characteristics:
- Rated voltage: 110...127V - 220...240V
- Frequency: 50/60 Hz
- Dimmable
- Current: 250/900mA
- Plastic casing: Square
- Degree of protection IP20
- Minimum cutout hole diameter: 72mm

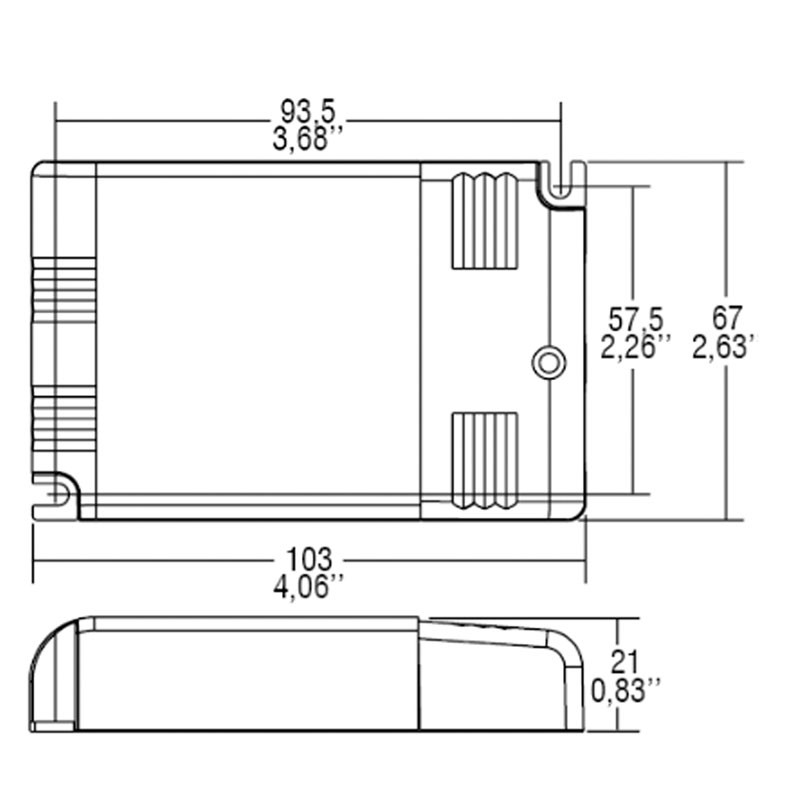

- Dimensions: 103 x 22 x 67 mm
- CT: -25/+45°C
- TC: +75°C
- Energy factor: 0.95
- Maximum efficiency: >88
- Usage: indoor
€33.97
Items Available: 24
: 22
Protections:
- Thermal and short-circuit
- Against mains extra-voltages
- Against overloads
Advantages:
- Multi-power supply provided with dip-switches for output current and voltage selection
- Independent IP20 power supply for indoor use
- Class II protected against electric shock from direct and indirect contacts
- PFC active
- Current regulated ±5 % including temperature variations
- Input and output terminals on same side (cable cross section up to 1.5 mm2 / AWG15)
- Clamps on primary and secondary for cable diameters: min. 3 mm - max. 8 mm
- Thermal protection = C.5.a
There are no reviews
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 1 to 20W
- Output voltage: 53 Vdc
- Input voltage: 220/240V
