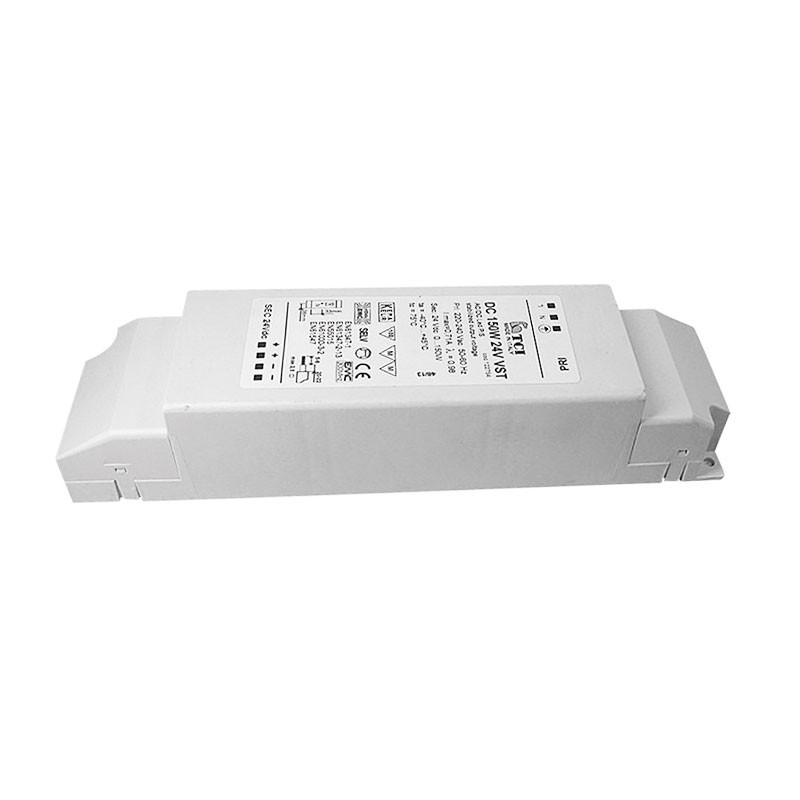

TCI electronic power supply for LED 24V 150W direct current 122754
TCI 122754
TCI electronic power supply for DC LEDs, with the following characteristics:
- Rated voltage: 220/240V
- DC output voltage: 24
- Output watts: 150W
- Frequency: 50/60 Hz
- DC output amps: 6.25A max.
- Temperature (TA) -40/+45°C
- Temperature (TC) 75°C
- Power factor: 0.98
- Efficiency max: >94%
- Degree of protection: IP20
€45.75
Items Available: 28
: 2
Features:
- AC/DC type electronic power supply with voltage output specifically for installations with lighting industry standards.
- Independent power supply unit IP20, for indoor use
- Class I protected against electric shock from direct and indirect contacts
- Opposing input and output terminals
- Single terminal block on primary (cable cross section up to 0.75 - 2.5 mm2 / AWG18 - AWG13)
- Double terminal block on secondary (cable cross section up to 0.5 - 2.5 mm2 / AWG20 - AWG13)
- Clamps on primary and secondary for cable diameters: min. 6 mm - max. 9 mm
- Protections: thermal and short-circuit - against mains extra-voltages - against overloads
- Thermal protection: C.5.a
Buon alimentatore, robusto e di elevata potenza, da valutare l'ingombro, non proprio ridotto
Data sheet
- Type: Power supplies
- Degree of protection: IP20
- Watts: From 101 to 200W
- Output voltage: 24 Vdc
- Input voltage: 220/240V
