Orbis UNO QRD 1M Electromechanical Daily Time Switch OB400232

Orbis
Orbis
ORB OB400232 8426709001902

Orbis UNO QRD daily time switch with 150-hour power reserve, DIN rail mounting, ideal for automated management of electrical loads, with the following features:

  • Daily programming with 96 unmissable riders

  • 150-hour power reserve (after 48 hours of continuous charging)

  • Closed contact 16(4)A at 250V AC

  • DIN rail installation (1 module)

  • Manual switch OFF - AUTO - ON

  • Sealable transparent cover and IP20 protection class

  • Reliable operation, accuracy ±1 sec/day

Do you have questions about this product or did you not find what you were looking for? Ask us!
Orbis UNO QRD 1M Electromechanical Daily Time Switch OB400232
€31.72
€31.72

€31.72
Tax included
Items Available: 63
Further availability of the manufacturer
€31.72

Buy it within and receive it from Tuesday, 12 August
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Orbis switch automatic daily management of loads

The Orbis UNO QRD time switch is designed to simplify the management of electrical devices by daily scheduling. With its 96 captive riders, it allows minimum trip intervals of 15 minutes. It is perfect for lighting, electric heating, pumps and irrigation systems.

Easy installation on DIN rail

With a width of only 1 module, this hour timer is easily mounted on 35 mm DIN rail, making it compatible with civil and industrial electrical panels. Its compact design and IP20 protection make it suitable for installations in protected environments.

Power reserve for continuous operation

Thanks to the 150-hour power reserve, programmed operation continues even in the absence of power, ensuring continuity in the set cycles. After 48 hours of continuous charging, the system is ready to guarantee autonomy.

Safety and versatility

The switch has a sealable cover, automatic/manual selector, and potential-free closing contact. It offers broad compatibility with different load types: incandescent, fluorescent, low- and high-voltage halogen, energy-saving, and LED.

Recommended applications

  • Automatic lighting systems

  • Electric heating systems

  • Pump and filter control

  • Timed irrigation

  • Management of electrical loads in civil or industrial environments

Technical Specifications Orbis Time Switch

Rated voltage 230 V AC
Frequency 50/60 Hz
Mounting On DIN rail (1 module)
Contact type Closing
Contact rating 16 (4) A / 250 V AC
Programming Daily
Number of riders 96
Minimum intervention interval 15 minutes
Power reserve 150 hours
Self-consumption 0,5 W
Degree of protection IP20
Insulation class II according to EN 60335
Operating accuracy ±1 sec/day at 22°C
Operating temperature -10°C TO +50°C

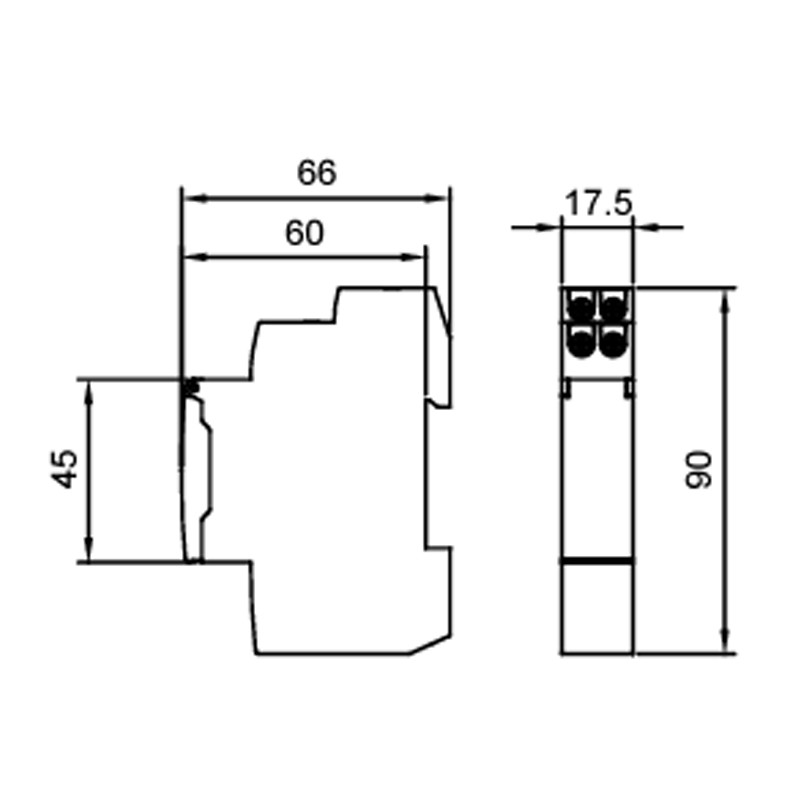

Dimensions (W x H x D) 17.5 x 90 x 66 mm
Material Self-extinguishing plastic
Selector switch Manual-Automatic-Off

quick to install ! does exactly what it is supposed o do

Todo bien, contento con el producto y entrega………..

Lo que buscaba. Calidad y precio. Envío rápido.

Nopea toimitus tuote tosi edullinen kiitos

Molto bene. È stato un prodotto soddisfacente. Sono molto contento.

Muy buena marca, funciona perfectamente, ya he instalado varios y sin ningún problema.

prodotto valido,valida sostituzione,prezzo giusto

Correcto, tal y como se ha pedido. Muy bien.

Producto buena relación calidad precio, fácil instalación, recomendable cien por cien.

Orologio di fascia media in linea con le mie necessità

Read all reviews

Data sheet

Type:
Time Switches
Model:
Daily
Installation:
Din
