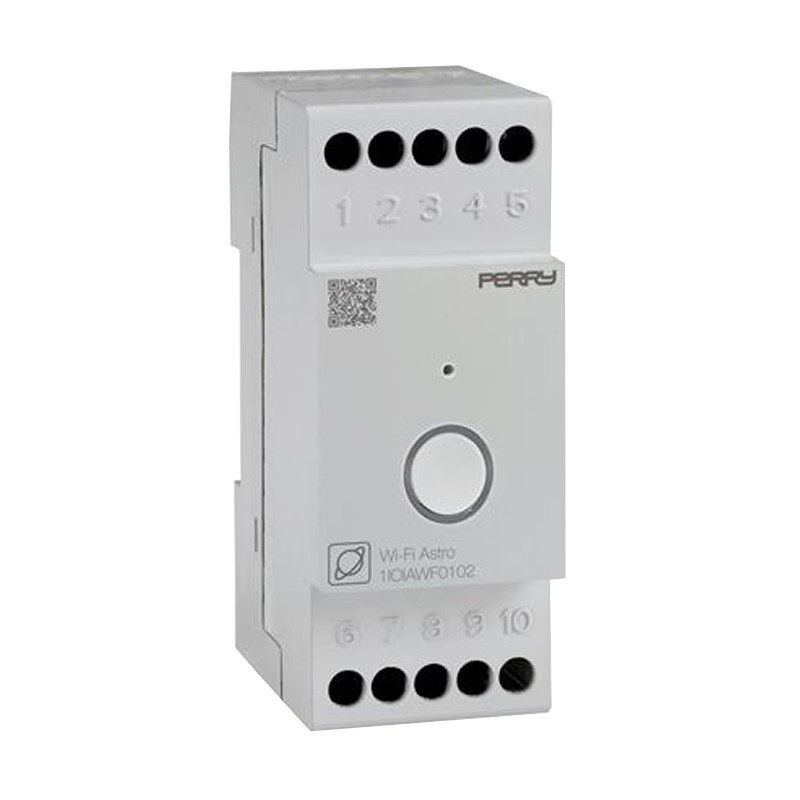

Perry Wi-Fi Astronomical Time Switch 1IOIAWF0102
PER 1IOIAWF0102
8019108008506
The Perry Wi-Fi Astronomical Time Switch, is an innovative device that enables management and scheduling of electrical equipment control via App on a smartphone or tablet. Thanks to its Internet connection, it offers advanced, shared management of individual devices or groups, making it ideal for civil, tertiary and industrial applications:
-
Management via App: Programming, consultation and editing via App for iOS and Android
-
Advanced Features: Timer, Random, Countdown, Cyclic and Astronomical
-
Device Sharing: Ability to share control with other users
-
Historical memory: Analysis of usage records to optimize time and schedule
-
Device Groups: Simultaneous management of multiple switches with a single schedule
-
Operation: excluded for the country Spain
€60.52
Items Available: 35
: 17
Perry Wi-Fi Astronomical Time Switch 1IOIAWF0102
Benefits
- Remote control: App-based management of individual or group devices.
- Efficiency: Analysis of historical data to optimize energy consumption.
- Sharing: Shared control among multiple users.
- Advanced Features: Astronomical Timer, Countdown and more.
- Easy installation: Compatible with DIN rail or back panel.
Applications
- Lighting management based on astronomical timetables.
- Scheduling and control of electrical loads.
- Optimization of consumption in residential, commercial and industrial settings.
Technical Features
| Specifications | Details |
|---|---|
| Power supply | 230V AC 50 - 60Hz |
| Contact Rating Data | 16(2) A / 250V a.c. |
| Number of Programs | Up to 15 weekly programs per type |
| Minimum Switch-on Time | ON - OFF 1 minute |
| Displays | Via App |
| Max Cable Section | 6 mm² |
| Degree of Protection | IP20 - IP40 (back-to-back) |
| Output Type | Captive screw terminals |
| Insulation Class | II |
| Relay Signaling | ON / OFF via status LED |
| Power Reserve | Min. 72 hours |
| Time Tolerance | ± 0.5 sec/day |
| Operating Temperature Limits | 0°C +50°C |
| Storage Temperature | -10°C +65°C |
| Installation | DIN rail / back-to-back |
| Enclosure | Thermoplastic - gray RAL 7035 |
| Type of Use | Civil / Tertiary / Industrial |
| On-Board Controls | ON/OFF/Reset button on front panel |
| Clock Setting Accuracy | Digital for hours / minutes |

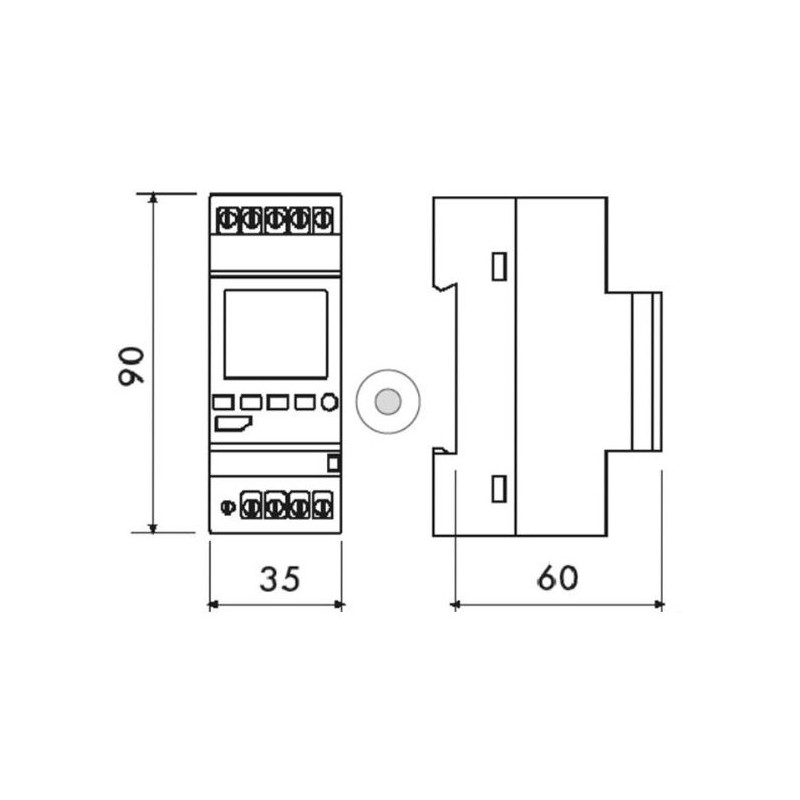

| Dimensions | 35 x 60 x 90 mm |
Il migliore sul mercato per completezza e versatilità!
Economico e facilissimo da configurare. Consigliato.
Buen producto y satisfecho con su funcionalidad
Ottimo interruttore orario astronomico, programmazione di immediata facilità
Data sheet
- Type: Time Switches
- Model: Astronomical
- Installation: Din
